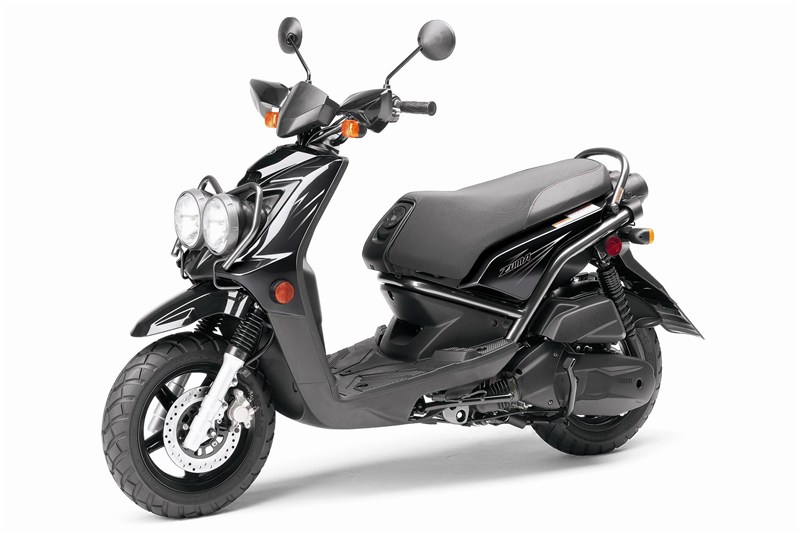

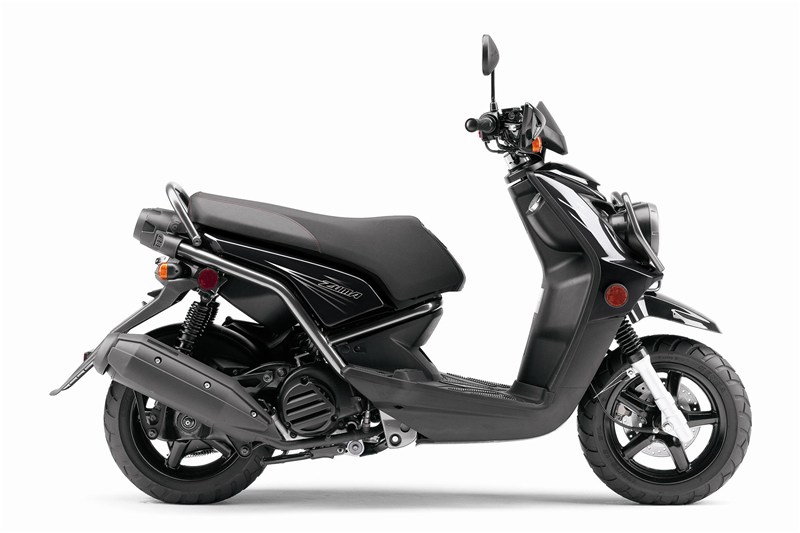

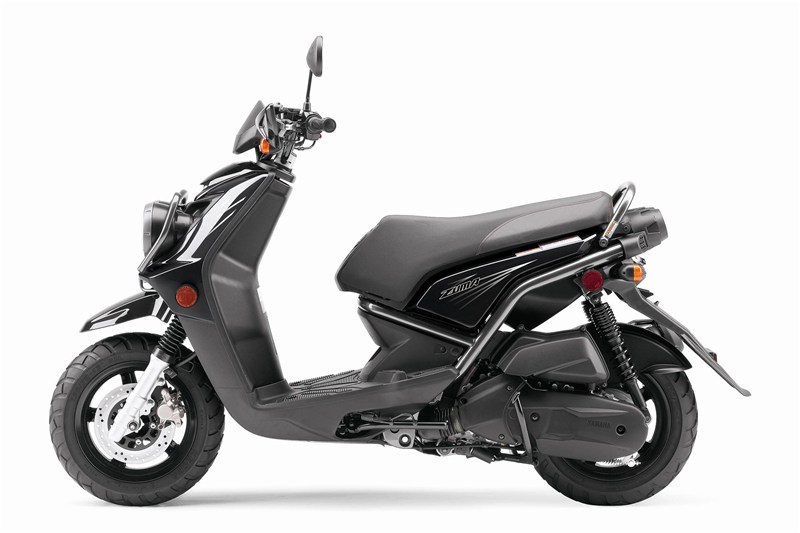

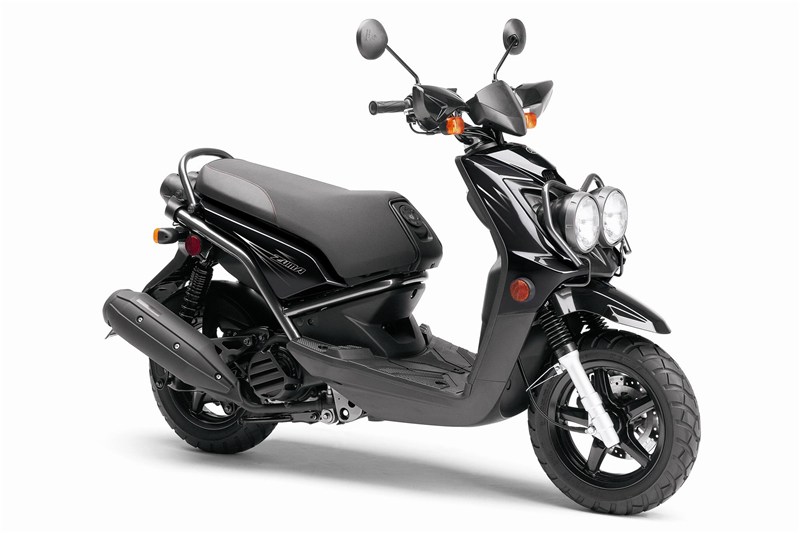

2011 Yamaha ZUMA 125

2011 Yamaha ZUMA 125
color
Manufacturer: Yamaha
Condition: New

Description

  • That tough off-road look isn’t just for looks: the strong steel frame; fat, aggressive tires; oiled-type air filters; beefy shocks front and rear and off-road style brush deflectors make this scooter at home on unpaved roads while delivering all the attitude you could want for the street.
  • 125cc 4-stroke engine with 4 valves, a 10:1 compression ratio, ceramic-composite cylinder plating, and electronic fuel injection gives this new-generation Zuma a new level of performance.
  • Fully automatic C.V. transmission and pushbutton electric starting make the Zuma super-convenient transportation. Both center and side stands, along with a locking cover on the ignition switch, make it convenient to park, too.
  • There’s room for two atop this new-generation Zuma’s seat, and lots of locking storage beneath it.
  • The Zuma 125 achieves fuel economy up to an estimated 89 mpg* with a fuel tank that holds 1.6 gallons of gas.

Specifications

Engine

Type
125cc forced air-cooled 4-stroke single; SOHC, 4-valve
Bore x Stroke
52.4 x 57.9 mm
Compression Ratio
10:1
Fuel Delivery
Electronic Fuel Injection
Clutch Type
Dry centrifugal automatic clutch
Transmission
V-belt automatic


Chassis

Suspension / Front
27mm telescopic forks
Suspension / Rear
Dual shock
Brakes / Front
220mm disc
Brakes / Rear
Drum
Tires / Front
120/70-12 51L
Tires / Rear
130/70-12 56L


Dimensions

Length
75.2 in
Width
30.1 in
Height
43.8 in
Seat Height
30.7 in
Wheelbase
50.8 in
Ground Clearance
3.7 in
Fuel Capacity
1.6 gal
Fuel Economy**
89 MPG
Wet Weight***
269 lb


Other

Warranty
1 Year (Limited Factory Warranty)


Features

Engine:

  • Zuma’s fuel-injected, 125cc single cylinder, 4-stroke engine pumps out lots of power for its size, using an SOHC 4-valve head with 10:1 compression ratio and ceramic-composite cylinder plating.
  • Pushbutton electric starting makes the Zuma 125 super-convenient for transportation.
  • For reliability and easy maintenance, simple wet-sump lubrication is used. The centrifugal oil filter built into the crankshaft means there’s no messy oil filter to replace.
  • Forced air cooling system helps keep engine temperatures under control, even while idling at stoplights, for maximum efficiency and longer engine life.
  • Fully automatic, V-belt transmission with centrifugal clutch provides easy, twist-the-throttle-and-go operation with great off-the-line acceleration.
  • Fuel injection provides the optimal fuel mixture for the operating condition, including temperature and altitude, and that means easy cold starts, too.
  • Oiled-paper type air filter helps trap dirt before it gets to your engine, even when riding on unpaved roads. The V-belt housing has its own off-road-style wet-foam air filter for durability.
  • Upswept muffler incorporates exhaust catalyst technology to reduce air pollution and meet emission regulations.

Chassis/Suspension:

  • Hefty steel-tube frame has a step-through design for easy mounting. A two-stage electrodeposition and electrostatic painting process provides a durable, corrosion-resistant finish.
  • Telescopic fork features beefy outer tubes for strength, while slider shrouds help protect the 27mm inner tubes from debris.
  • Swingarm has double rear shocks for riding comfort on the street and unpaved roads, too.
  • Fuel tank holds 1.6 gallons for plenty of cruising range. Fuel tank emission system includes a charcoal canister to control gasoline evaporation and reduce air pollution.
  • Fat 120/70-12 front and 130/70-12 rear tires have an aggressive looking block pattern for great handling on unpaved roads and on the street. Tires run on lightweight five-spoke die-cast aluminum wheels.
  • 220mm hydraulic front disc and rear drum brakes combine for serious stopping power.
  • Zuma provides both a centerstand and side stand for parking convenience.

Additional Features:

  • Two bright halogen headlights light the way—following current sportbike practice, the left side provides the 55W low beam while the right side is the 60W high beam.
  • For extra security when parked, the main switch is equipped with a key hole lock cover.
  • The underseat storage compartment’s cavernous 5.2-gallon capacity is roomy enough for a full-face helmet.
  • The Zuma 125’s easy-to-read analog speedometer is flanked by a fuel gauge and indicator lights.
