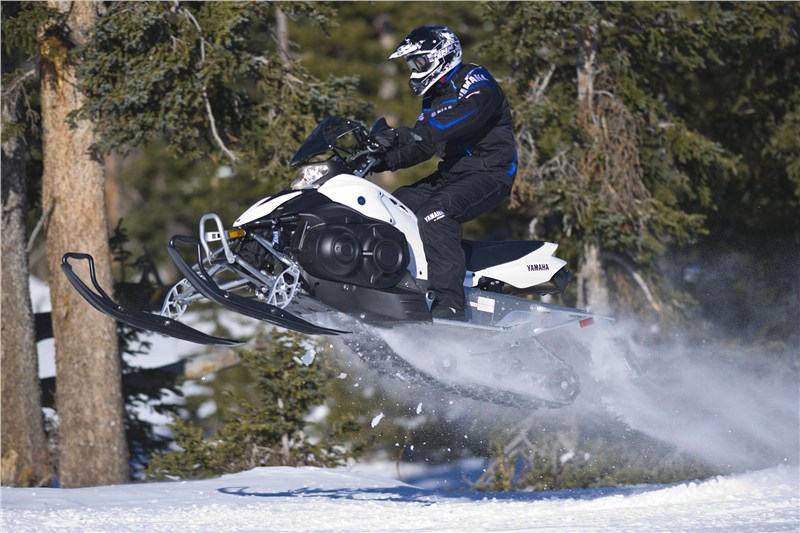

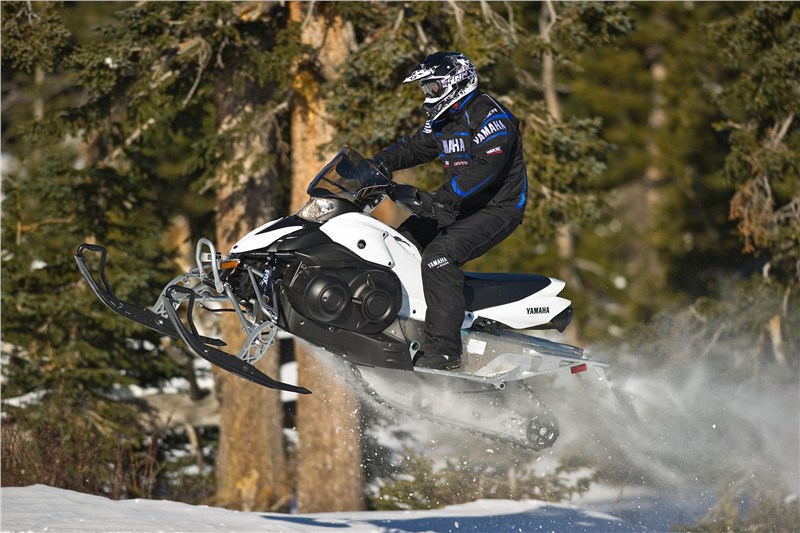

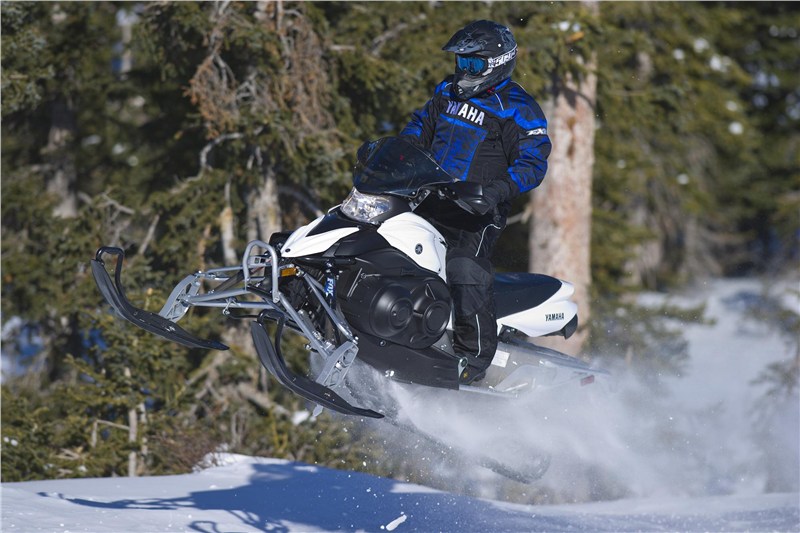

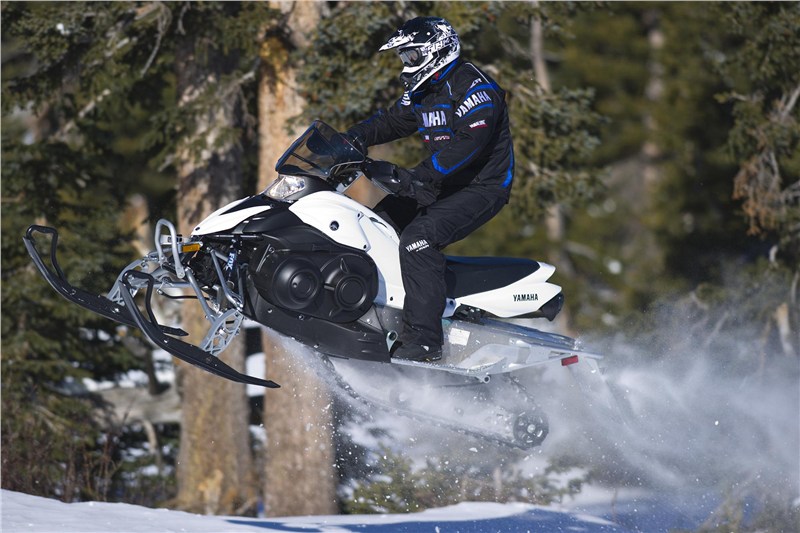

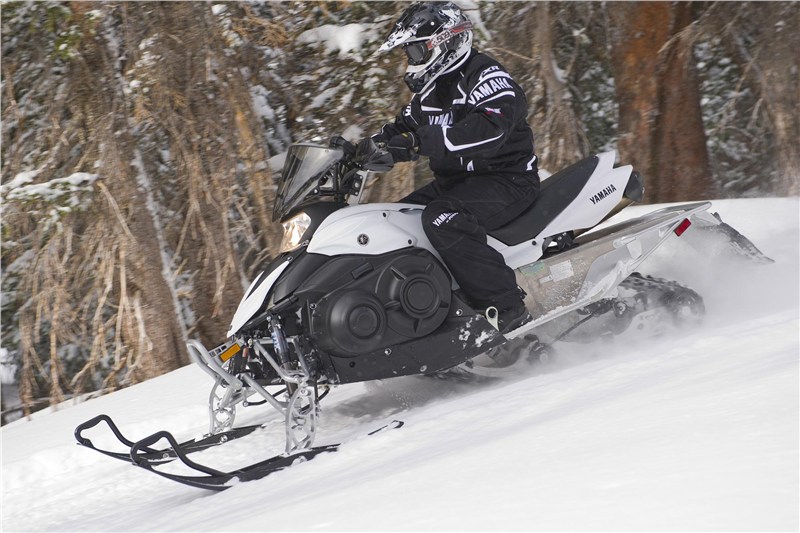

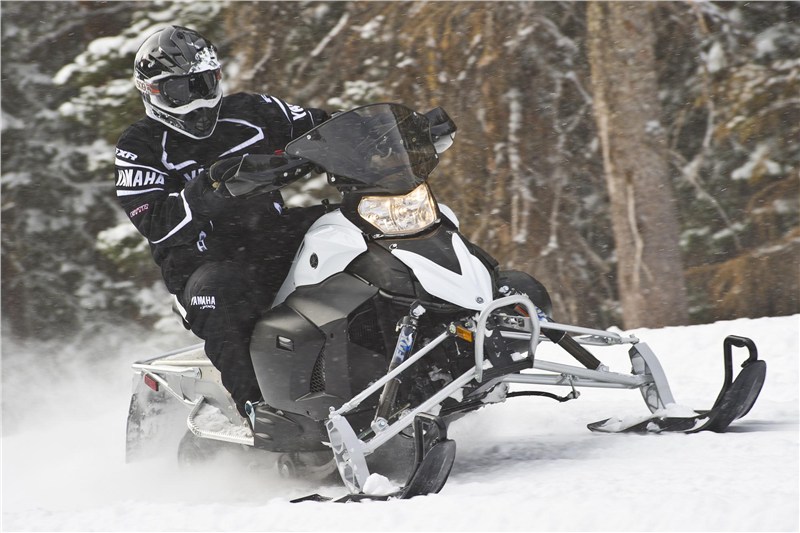

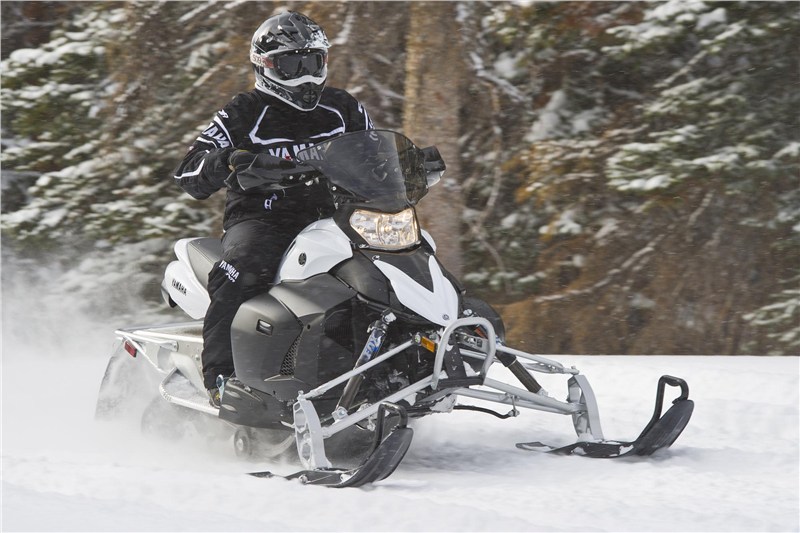

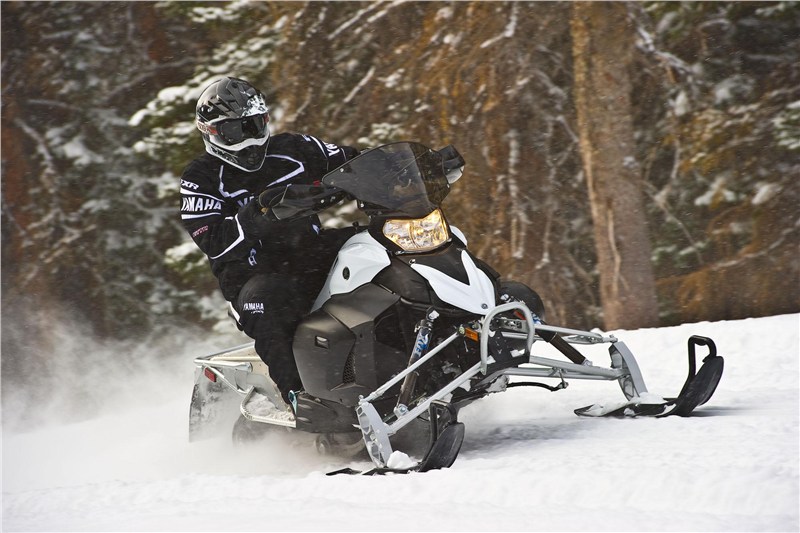

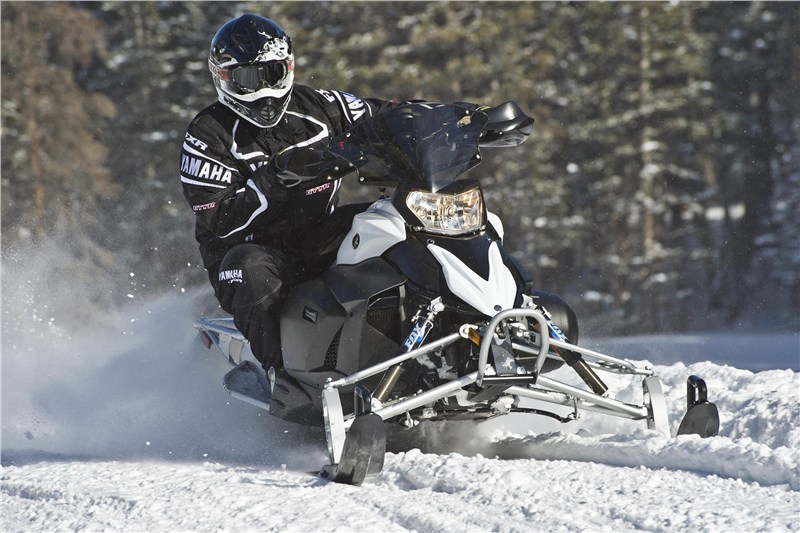

2013 Yamaha PHAZER RTX

2013 Yamaha PHAZER RTX
White/Black
MSRP: $8,599.00
Manufacturer: Yamaha
Condition: New

Description

  • Sport Performance 4-stroke engine
    Lightweight, dependable and fun, the Sport Performance engine’s high tech design puts down 80 horsepower-class performance on the trail and off. Powering in the distinctive Phazer family of sleds, this 2-cylinder engine is quick-revving and very torquey for sporty acceleration. The advanced fuel injection system automatically keeps it running at maximum output and fuel efficiency for the conditions.
  • Advanced fuel injection
    The Sport Performance engine uses an advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system.
  • Lightweight, counterbalanced crankshaft
    The Sport Performance engine’s crankshaft is designed to be light weight, responsive and durable. The lightweight, counterbalanced crankshaft delivers super-crisp throttle response and quick acceleration. It also helps mitigate the vibration inherent in a 2-cylinder engine.
  • Lightweight, rear-exiting exhaust
    The exhaust from the Sport Performance engine is routed out the rear of the sled, similar to the other Genesis 4-stroke engine packages. The rear exiting exhaust design serves three purposes. First, it keeps the exhaust heat out of the engine bay to allow a super-compact design. Second, it allows the engine to breathe more efficiently through a cooled exhaust pipe. Finally, it helps to balance the overall sled package, giving the Phazer RTX its amazingly nimble handling.
  • 14 x 121 x 1-inch Camoplast® Rip Saw™ track
    The Phazer RTX uses a 14-inch wide Camoplast® Rip Saw™ track with 1-inch lugs. The track design is lighter than a traditional 15-inch design for performance and handling. It also allows the tunnel to be narrower to contribute to the sled’s ergonomics.
  • Radiator and front extrusion
    In order to generate consistently-strong engine performance, all Genesis 80FI sleds feature a small radiator on the right hand side of the engine cab and a front extrusion. The use of a small radiator improves the sled’s cooling system function, which means greater engine durability. It also enhances the sled’s handling by relocating the mass of a rear heat exchanger up to the central portion of the sled.
  • Oil Pressure Sensing System
    The Phazer RTX is fitted with an oil pressure sensing system. If the oil pressure drops while riding, the ignition and fuel supply is controlled to limit the engine’s rpm and reduce the load on the engine. If necessary the system will stop the engine.

Specifications

Engine

Type / Displacement / cc
Four-stroke, 499cc
Cylinders
Two
Cooling
Liquid
Bore & Stroke / mm
77 X 53.6
Intake Design
3 valves
Ignition
Digital T.C.I. w/throttle position sensor
Fuel Delivery
2 x 43mm fuel injection
Exhaust
2 valves, rear exhaust
Clutch / Transmission
YVRC, variable ratio
Disc. Brake Type
2-piston hydraulic w/lightweight ventilated disc


Chassis

Front Suspension
Independent, double wishbone
Front Shocks
Fox® FLOAT®
Front Travel / in.
8.6 in
Ski Type
Lightweight plastic, saddleless design
Carbide Ski Runners
Standard
Stabilizer Bar
Standard
Rear Suspension
Dual Shock® CK
Rear Shocks
C36 aluminum HPG / C40 aluminum HPG w/ clicker
Rear Travel / in.
16.2 in
Track Type
Camoplast® Rip Saw™


Dimensions

Overall Length / in.
111 in
Overall Height / in.
46.8 in
Track/Width x Length x Height / in.
14 in x 121 in x 1.0 in
Ski Stance (ctr. to ctr.) in.
42.5 in
Fuel Capacity / Gal.
7 gal
Fuel Type
Premium Unleaded
Oil Capacity / Qts.
3, Dry sump
Engine Oil Type
Yamalube 4, 0w-30, Cold Weather Formula


Features

Electric Start
Standard
Reverse
Standard
Hand & Thumb Warmers
Standard
Windshield Height
Low
Mirrors
Optional
Seating Capacity
One
Backrest
N/A
Rear Carrier Rack
N/A
Tow Hitch
N/A
Tunnel Protectors
Optional
Headlight Watts, Type
60/55W Halogen X 2
High Beam Indicator
Standard
Oil & Temp Light
Standard
Fuel Gauge Type
Electric (LCD), low fuel warning light
Speedometer
Standard (LCD, digital)
Odometer
Standard (LCD display)
Tripmeter
Standard, dual (large LCD display)
Tachometer
Standard (LCD display)
DC Outlet
Optional
Warranty
1 Year (Limited Factory Warranty)


Features

Performance

  • Sport Performance 4-stroke engine
    Lightweight, dependable and fun, the Sport Performance engine’s high tech design puts down 80 horsepower-class performance on the trail and off. Powering in the distinctive Phazer family of sleds, this 2-cylinder engine is quick-revving and very torquey for sporty acceleration. The advanced fuel injection system automatically keeps it running at maximum output and fuel efficiency for the conditions.
  • Advanced fuel injection
    The Sport Performance engine uses an advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system.
  • Lightweight, counterbalanced crankshaft
    The Sport Performance engine’s crankshaft is designed to be light weight, responsive and durable. The lightweight, counterbalanced crankshaft delivers super-crisp throttle response and quick acceleration. It also helps mitigate the vibration inherent in a 2-cylinder engine.
  • Lightweight, rear-exiting exhaust
    The exhaust from the Sport Performance engine is routed out the rear of the sled, similar to the other Genesis 4-stroke engine packages. The rear exiting exhaust design serves three purposes. First, it keeps the exhaust heat out of the engine bay to allow a super-compact design. Second, it allows the engine to breathe more efficiently through a cooled exhaust pipe. Finally, it helps to balance the overall sled package, giving the Phazer RTX its amazingly nimble handling.
  • 14 x 121 x 1-inch Camoplast® Rip Saw™ track
    The Phazer RTX uses a 14-inch wide Camoplast® Rip Saw™ track with 1-inch lugs. The track design is lighter than a traditional 15-inch design for performance and handling. It also allows the tunnel to be narrower to contribute to the sled’s ergonomics.
  • Radiator and front extrusion
    In order to generate consistently-strong engine performance, all Genesis 80FI sleds feature a small radiator on the right hand side of the engine cab and a front extrusion. The use of a small radiator improves the sled’s cooling system function, which means greater engine durability. It also enhances the sled’s handling by relocating the mass of a rear heat exchanger up to the central portion of the sled.
  • Oil Pressure Sensing System
    The Phazer RTX is fitted with an oil pressure sensing system. If the oil pressure drops while riding, the ignition and fuel supply is controlled to limit the engine’s rpm and reduce the load on the engine. If necessary the system will stop the engine.

Handling

  • Ultra light, ultra rigid FX™ chassis
    The Phazer RTX is built on the FX Chassis. It features lightweight, rigid CF diecast member and chromoly tube construction. The FX Chassis was engineered specifically to house the Genesis sport performance engine and incorporates that engine package in its overall balance dynamic. The FX Chassis is also the backbone for the sport rider-forward position on the Phazer RTX.
  • Sport rider-forward position
    The Phazer RTX takes many of its cues from other off-road motorsports, including its sport rider-forward positioning. It has a tall, narrow seat and tall, forward handlebars like the popular YZ® dirtbike. It puts the rider in a pure sport posture, without being overly aggressive. The sport rider-forward position also locates the mass of the rider right at the balance point for the sled, aiding its incredible handling.
  • Double wishbone front suspension
    The FX Chassis uses a specifically engineered front suspension package to accommodate its unique weight distribution and handling needs. Because of the Phazer RTX’s naked front end design, the A-arms need to be longer than even the second generation design found on the Deltabox™ II chassis models. The Phazer RTX also features lightweight extruded aluminum spindles.
  • Wide, hooked handlebars
    To match the tall and forward position, a single-piece, dual-hooked handlebar is standard fare on the Phazer RTX. The hooks have the same grip material as the main bar section, for consistent control, regardless of hand position on the grip.
  • Integrated chaincase with magnesium cover
    The FX Chassis has the chaincase cast right into the frame member, and has a magnesium cover plate that forms the seal to keep the oil in. This trick piece of technology is a highlight of the goal to simplify the sled and minimize weight. Riders will appreciate the reduced overall weight on the Phazer RTX and its amazingly nimble handling as a result.
  • CF diecast construction
    Yamaha’s Controlled Flow casting technique is used for many of the structural pieces on the chassis. The CF process draws the molten metal into the mold under a vacuum, reducing the formation of air bubbles in the material. As a result, pieces can be made much thinner and still deliver the strength characteristics of a conventionally-cast, thicker piece.

Comfort

  • Rear tunnel closure
    The rear hole on the Phazer RTX tunnel is closed off to reduce the snow and ice buildup on the tunnel and runningboards. The front manifold hole will remain to cool the exhaust pipe. A heat shield will be installed to protect the seat and rear tail plastic.
  • Dual Shock® CK rear suspension
    The Phazer RTX uses a Dual Shock CK rear suspension with an HPG clicker shock. The FX Chassis uses a narrow track and the skidframe is accordingly narrower. The suspension offers a number of unique features, in addition to the narrowness. The carrier wheels on the rear upper cross shaft are oversized to improve their efficiency and reduce friction as compared to a small wheel design. The rear mount is built with a cantilever system to allow the track tension to remain consistent through the compression travel. The rear arm has coupling blocks. The front lower shock mount is on a cam to increase the shock rate through its travel.
  • Fox® FLOAT® front shocks
    Fox® FLOAT® shocks use an air spring. This eliminates the need for heavy steel coil springs. They cut three pounds off the sled’s overall weight, as compared to traditional coil over springs. They are individually tunable by using a pocket-sized air pump, which comes with the sled.
  • Tall, narrow YZ-style seat
    The tall, narrow seat is an integral element in the sport rider-forward position on the Phazer RTX. It helps put the rider in the best possible location for aggressive or casual riding. The narrowness of the seat enhances the Phazer RTX’s overall lightweight feel on the trail.
  • Standard electric start and push-button Electric Shift reverse
    Yamaha’s electric starter system allows consumers to fire up their Phazer RTX with a turn of the key. The engine’s decompression system lightens the load required to turn the engine over, allowing a small, light battery to be used. Yamaha’s Electric Shift reverse system lets users shift the sled into, and out of, reverse with the touch of a button on the digital gauge
  • Digital gauge
    The digital gauge displays key information at a glance. Vehicle speed is displayed on a large LCD readout. In addition, the rider can select tachometer, odometer or tripmeter data to appear on the secondary readout. The gauge also displays system warning lights, fuel level, and warmer intensity. The right hand side of the gauge has the push button for the Electric Shift reverse system.
  • Concentrated hand warmers
    These hand warmers have a concentrated element design, which focuses the heat in the middle of the grip material. The result is a warm grip for your hand’s most comfortable riding position. In addition, an insulator is placed between the heating element and handlebar to retain heat longer and more efficiently than previous designs.
  • New graphic packages
    The Phazer RTX comes in one graphics package; white/black. This awesome design produces one of the best looking sleds on the snow.
