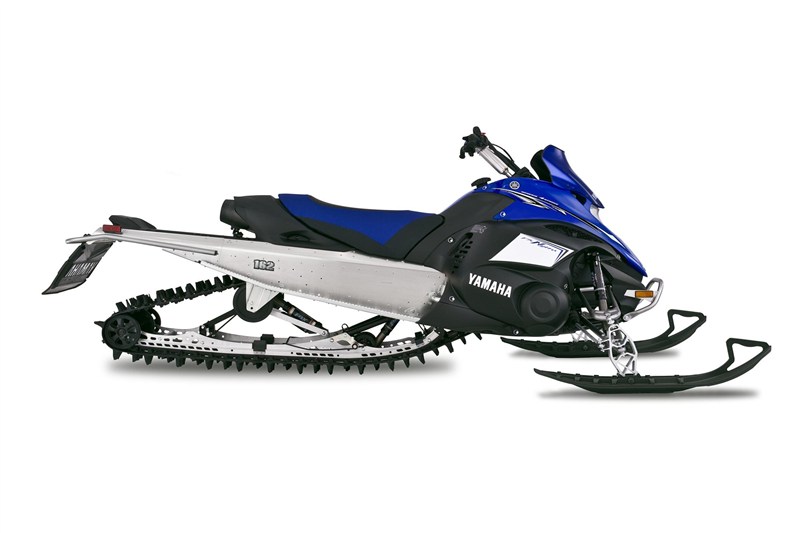

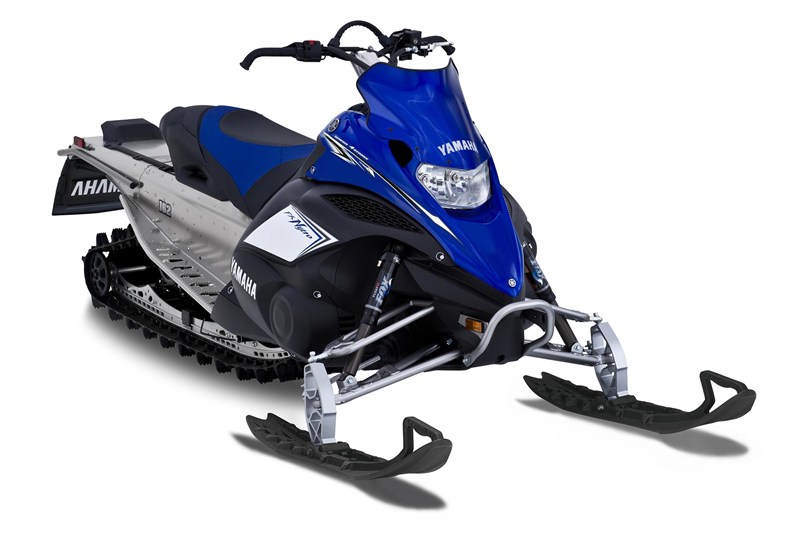

2012 Yamaha FX NYTRO MTX 162

2012 Yamaha FX NYTRO MTX 162
Yamaha Blue
MSRP: $12,899.00
Manufacturer: Yamaha
Condition: New

Description

  • High Performance 4-stroke engine
    The over-achieving High Performance engine is the heart of our lightweight, high performance and aggressive FX Nytro model family. It has dominated its class at the Old Forge Shoot-Out 2 years straight, claiming top speed twice and posting the best average ET over 4 runs down the ¼-mile track.
  • Advanced fuel injection
    The High Performance engine uses Yamaha’s advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system.
  • Engine braking reduction system
    The High Performance engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders a “coast” feeling.
  • Lightweight rear-exiting exhaust
    The patented rear exit design serves many performance-enhancing functions on the FX Nytro MTX 162. First, it maximizes horsepower by using a straight exhaust pipe design. Second, it reduces the amount of under-hood heat produced. Third, the rear-exiting design distributes weight to contribute to the excellent balance of the sled.
  • Forced air radiator ducting
    The FX Nytro MTX 162’s airflow design pulls fresh air in from around the headlight and forces it through the radiator fins for high cooling capacity, resulting in consistent engine performance even in low-snow conditions.
  • New! 15 x 162 x 2.25-inch Single-ply Ascent™ track
    The new Ascent mountain track was designed to get on plane quicker in powder and be durable enough to handle the high horsepower of a boosted sled. This was achieved by strengthening the bottom 2/3 of the lug for acceleration, while leaving the top 1/3 elastic to be able to curve and provide lift. The 15x162x2.25-inch track features a 3-inch pitch to allow more snow to pack in between the lugs for a firmer grip on the snow.
  • New! single-piece extrovert drive sprockets
    Churning the track is a pair of new single-piece extrovert drive sprockets. The engineering teams purpose-built these sprockets to work with the Ascent™ track, reduce weight from the previous sprockets, and decrease vibration.

Specifications

Engine

Type / Displacement / cc
4-Stroke, 1049cc
Cylinders
Three
Cooling
Liquid
Bore & Stroke / mm
82.0 X 66.2
Intake Design
2 Valves
Ignition
Digital T.C.I. with throttle position sensor
Fuel Delivery
41mm fuel injection
Exhaust
2 valves, rear exhaust
Clutch / Transmission
YVXC, variable ratio
Disc. Brake Type
4-piston hydraulic w/ lightweight ventilated disc


Chassis

Front Suspension
FXG2
Front Shocks
Fox® FLOAT® 2
Front Travel / in.
8.5 in
Ski Type
MT-9 mountain ski
Carbide Ski Runners
Standard
Stabilizer Bar
N/A
Rear Suspension
ProMountain® Air 162
Rear Shocks
Fox® FLOAT® 2/ FLOAT® 2 XV
Rear Travel / in.
15.0 in
Track Type
Single Ply Ascent


Dimensions

Overall Length / in.
131.5 in
Overall Height / in.
47.0 in
Track/Width x Length x Height / in.
15 in X 162 in X 2.25 in
Ski Stance (ctr. to ctr.) in.
40.7 in
Fuel Capacity / Gal.
7.4 gal
Fuel Type
Regular Unleaded
Oil Capacity / Qts.
3, Dry Sump
Engine Oil Type
Yamalube 4, 0w-30, Cold Weather Formula


Features

Electric Start
Standard
Reverse
Standard
Hand & Thumb Warmers
Standard
Windshield Height
Low
Mirrors
Optional
Seating Capacity
One
Backrest
N/A
Rear Carrier Rack
N/A
Tow Hitch
N/A
Tunnel Protectors
Standard
Headlight Watts, Type
60/55W Halogen x 2
High Beam Indicator
Standard
Oil & Temp Light
Standard
Fuel Gauge Type
Electric (LCD), low fuel warning light
Speedometer
Standard (LCD, digital)
Odometer
Standard (large LCD display)
Tripmeter
Standard, backlit (LCD)
Tachometer
Standard, backlit (LCD)
DC Outlet
Automotive
Warranty
1 Year (Limited Factory Warranty)


Features

Performance

  • High Performance 4-stroke engine
    The over-achieving High Performance engine is the heart of our lightweight, high performance and aggressive FX Nytro model family. It has dominated its class at the Old Forge Shoot-Out 2 years straight, claiming top speed twice and posting the best average ET over 4 runs down the ¼-mile track.
  • Advanced fuel injection
    The High Performance engine uses Yamaha’s advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system.
  • Engine braking reduction system
    The High Performance engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders a “coast” feeling.
  • Lightweight rear-exiting exhaust
    The patented rear exit design serves many performance-enhancing functions on the FX Nytro MTX 162. First, it maximizes horsepower by using a straight exhaust pipe design. Second, it reduces the amount of under-hood heat produced. Third, the rear-exiting design distributes weight to contribute to the excellent balance of the sled.
  • Forced air radiator ducting
    The FX Nytro MTX 162’s airflow design pulls fresh air in from around the headlight and forces it through the radiator fins for high cooling capacity, resulting in consistent engine performance even in low-snow conditions.
  • New! 15 x 162 x 2.25-inch Single-ply Ascent™ track
    The new Ascent mountain track was designed to get on plane quicker in powder and be durable enough to handle the high horsepower of a boosted sled. This was achieved by strengthening the bottom 2/3 of the lug for acceleration, while leaving the top 1/3 elastic to be able to curve and provide lift. The 15x162x2.25-inch track features a 3-inch pitch to allow more snow to pack in between the lugs for a firmer grip on the snow.
  • New! single-piece extrovert drive sprockets
    Churning the track is a pair of new single-piece extrovert drive sprockets. The engineering teams purpose-built these sprockets to work with the Ascent™ track, reduce weight from the previous sprockets, and decrease vibration.

Handling

  • FXG2 front suspension geometry
    The FX Nytro MTX 162 features the acclaimed FX Nytro front suspension with more trail and relaxed caster for greater deep snow handling and side hilling ability. The sway bar was also removed to enhance handling in steep, mountainous regions.
  • New! Camoplast MT9 Ski
    The new skis have great deep snow flotation and cut 1.8 lbs off from the previous design.
  • FX™ chassis with sport rider-forward position
    The compact design puts the engine down low and back in the chassis, leaving the top of the cab open for airflow. This gives the FX Nytro MTX 162 a very centralized mass. The FX Nytro MTX 162’s sport rider-forward ergonomic design puts the rider in an aggressive, yet comfortable, forward posture.
  • Tall, wide, hooked mountain handlebars
    To match the tall and forward position, a single-piece, dual-hooked handlebar is standard fare on the FX Nytro MTX 162. The hooks have the same grip material as the main bar section, for consistent control, regardless of hand position on the grip. Mountain riders will appreciate the center grab strap when it’s time for sidehilling.
  • Composite upper skeleton
    The headlight assembly and upper portion of the Nytro MTX 162 is supported by a super-lightweight composite framework. By using a rugged, high tech composite material as the structure for the top portion of the sled, Yamaha engineers were able to keep the mass centered low and deep in the chassis.
  • Lightweight tunnel
    The FX Nytro MTX 162 features a lightweight tunnel design. With the runningboards tipped up at an aggressive 11-degree angle, the FX Nytro MTX 162 delivers big ground clearance for deep snow capability. The design also features large snow evacuation and boot gripper punch outs.

Comfort

  • ProMountain® Air rear suspension
    The Nytro MTX 162 is equipped with a totally redesigned rear suspension. In a joint effort, Yamaha co-developed this suspension with Fox to make it the best suspension for any mountain rider. It is equipped with a Fox® Float™ 2 and Fox® Float™ XV shock that boost this suspension to a whole another level. This combined with a new shallow approach angle, a semi coupled design, and new lightweight rails, make this one suspension you don’t want to mess with.
  • Fox® FLOAT™ 2 front shocks
    Fox® FLOAT™ 2 shocks use an air spring designed to force the piston to rebound. This eliminates the need for steel coil springs. They cut three pounds off the sled’s overall weight, as compared to traditional coil over springs. They are individually tunable by using a pocket-sized air pump, which comes with the sled, so consumers will be able to set the front suspension up to their liking.
  • Wide runningboards with traction
    The FX Nytro MTX 162 is all about fun and handling. As a result, the runningboards are nice and wide and loaded with traction. Riders will be able to put their feet anywhere on the runningboards and have confidence in their traction. This allows the rider to move around and really enjoy the full fun of a lightweight sled.
  • Wheels with removable bearings
    Replaceable bearing wheels makes maintenance easy and cheap, while the 6 spoke design adds to the visual appeal of the already super cool looking Nytro MTX 162. This design is implemented on all rear wheels.
  • New sculpted narrow seat
    The FX Nytro MTX 162 has a narrow seat for comfort. In addition to putting the rider in a tall, forward, attack posture, the seat’s height makes it plush and comfortable for a full day of riding. The narrow seat sits atop the beveled tunnel, which allows the track to be a traditional 15 inches wide, to maximize traction. In addition, a new seat cover material has been incorporated this year for added comfort and durability. The seat foam has been improved as well with anti-sagging properties.
  • Concentrated hand warmers
    These hand warmers have a concentrated element design, which focuses the heat in the middle of the grip material. The result is a warm grip for your hand’s most comfortable riding position. In addition, an insulator is placed between the heating element and handlebar to retain heat longer and more efficiently than previous designs.
  • Standard electric start
    Yamaha’s electric starter system allows consumers to fire up their Nytro MTX 162 with the turn of a key. There is no pulling on a nylon cord to get this high-tech engine growling! Electric start is a standard feature on all of Yamaha’s 4-stroke machines.
  • Digital gauge
    The digital gauge displays key information at a glance. Vehicle speed is displayed on a large LCD readout. In addition, the rider can select tachometer, odometer or tripmeter data to appear on secondary readout. The gauge also displays system warning lights, fuel level, and warmer intensity.
  • Standard mechanical reverse
    The Nytro MTX 162’s simple reverse system allows riders to back out of tight spaces hassle-free. It’s engaged with the lever located on the right shroud. Just pull out the lever and slide it to the right for quick and easy use.
  • Quick-release, single-piece hood/console shroud
    The FX Nytro MTX 162 has a single-piece hood and console shroud. The design allows owners to open and close the top portion of the sled easily with Dzus® quick-connect fasteners.
  • New graphic packages
    The FX Nytro MTX 162 comes in two graphic packages; Yamaha blue/white as well as Yamaha black. These awesome designs produce one of the best looking sleds on the snow.
