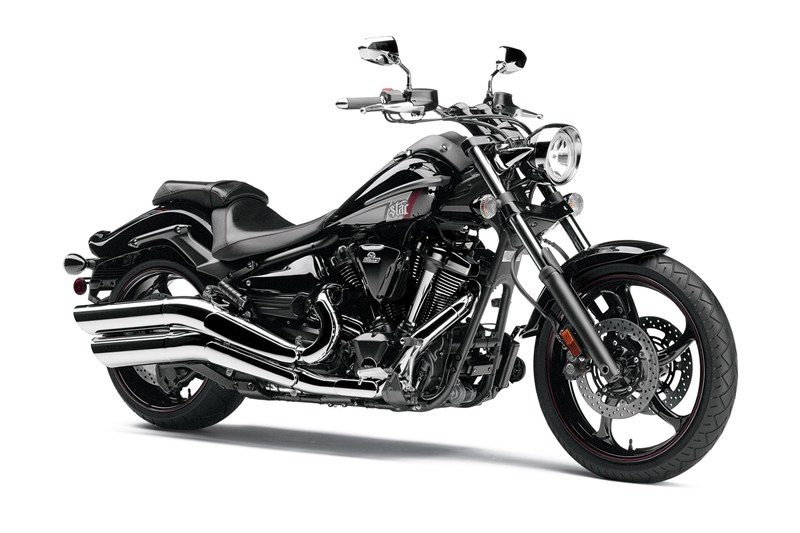

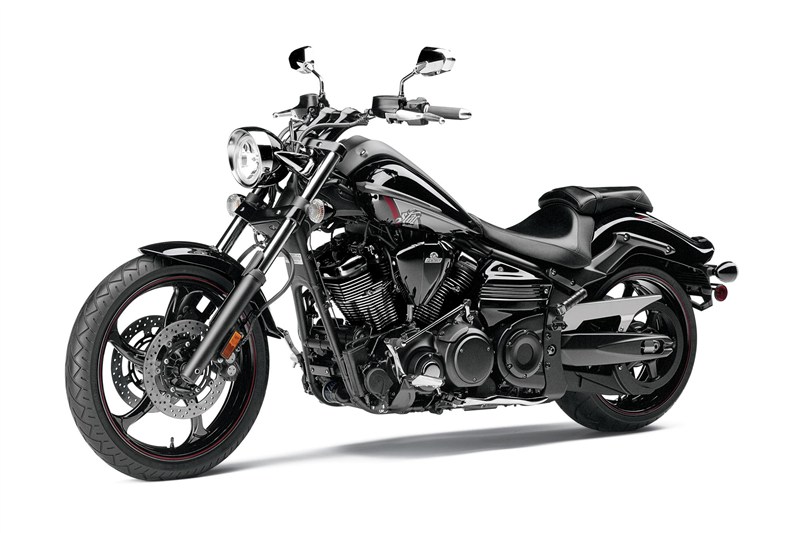

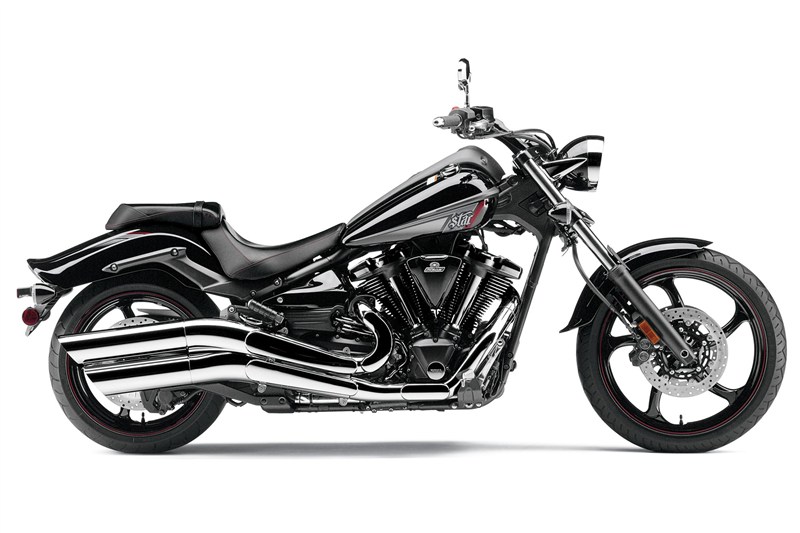

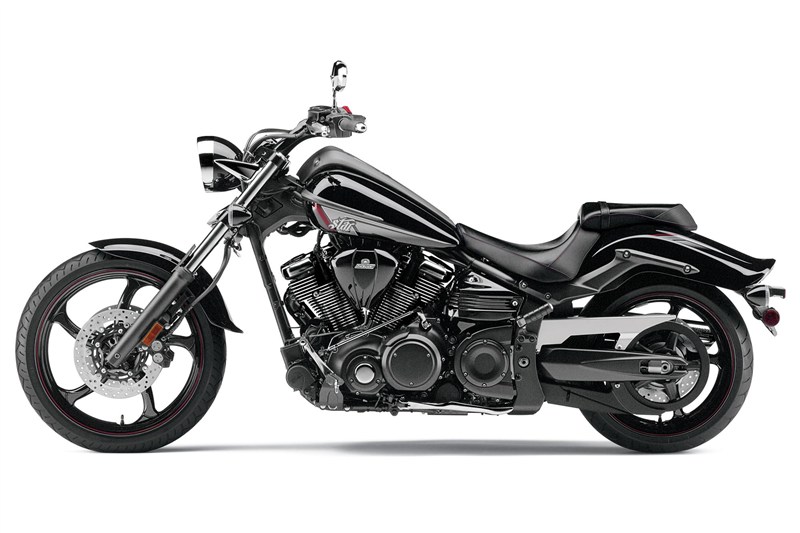

2013 Yamaha RAIDER

2013 Yamaha RAIDER
Raven
MSRP: $14,890.00
Manufacturer: Yamaha
Condition: New

Description

  • The Raider was inspired by the custom chopper movement, but since it’s a Star, it had to also handle, stop and go.
  • A 6-degree yoke angle—the first ever on a street-legal Star Motorcycle—makes it possible to achieve that custom look as well as neutral handling and straight-line cruisability: 33-degree rake plus 6 degrees yoke angle gives total rake of 39 degrees and 102mm of trail.
  • Custom 5-spoke wheels carry a 120/70-21-inch bias tire up front, and a wide, 210/40-18 radial out back—the tallest and widest ever on a Star.
  • Estimated 42 mpg* means this cruiser can go the distance between fill-ups.

Specifications

Engine

Type
113-cubic-inch (1854cc) air-cooled V-twin OHV, 4 valves/cylinder
Bore x Stroke
100.0 x 118.0mm
Compression Ratio
9.5:1
Fuel Delivery
Twin-Bore electronic fuel injection; throttle position sensor
Ignition
TCI: Transistor Controlled Ignition
Transmission
5-speed, multiplate wet clutch
Final Drive
Belt


Chassis

Frame
Double cradle
Suspension / Front
Telescopic fork; 5.1-in travel
Suspension / Rear
Swingarm; 3.5-in travel
Brakes / Front
Dual hydraulic disc, 298mm
Brakes / Rear
Hydraulic disc, 310mm
Tires / Front
120/70-21M/C 62H
Tires / Rear
210/40-18M/C 73H
Wheels
5-spoke cast


Dimensions

Length
101.2 in
Width
36.4 in
Height
45.9 in
Seat Height
27.4 in
Ground Clearance
5.7 in
Wheelbase
70.9 in
Fuel Capacity
4.2 gal
Fuel Economy**
42 mpg
Wet Weight***
730 lb


Other

Warranty
1 Year (Limited Factory Warranty)


Features

New for 2013:

  • Clutch has light, easy-pull operation — 20% less effort at the lever than before.

Engine:

  • 113-cubic-inch (1854cc) air-cooled, OHV with 4 valves per cylinder, pushrod 48-degree V-twin pumps out max torque at just 2500 rpm and max power at 4500 rpm for powerful, relaxed cruising.
  • Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture.
  • Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life.
  • 9.5:1 compression ratio and aggressive cam timing increase power output across the board.
  • Computer-controlled, twin-bore fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization.
  • A 3.5-liter airbox is hidden in the area below the fuel tank for great performance and clean styling.
  • Two-into-one-into-two exhaust with Exhaust Ultimate Power valve (EXUP®) inside boosts torque in the 2500-3500-rpm range.
  • Special custom-machining of the cooling fin edges gives a jewel-like appearance to the engine as light hits it from different angles.

Chassis/Suspension:

  • All-aluminum cast frame is light, rigid and tuned for light, athletic handling. A light, Controlled-Fill, aluminum swingarm casting complements the bike’s lithe style.
  • Low, sculpted seat holds the rider in place, and pullback bars reach back to enforce a casual, urban cruising style.
  • A 6-degree yoke angle—the first ever on a street-legal Star Motorcycle—makes it possible to achieve that custom look as well as neutral handling and straight-line cruisability: 33-degree rake plus 6 degrees yoke angle gives total rake of 39 degrees and 102mm of trail.
  • Custom 5-spoke wheels carry a 120/70-21-inch bias tire up front, and a wide, 210/40-18 radial out back—the tallest and widest ever on a Star.
  • 46mm fork tubes serve a sweet appearance and an excellent ride through 5.1 inches of wheel travel.
  • A tucked-out-of-sight single shock out back provides a smooth ride under varying loads.
  • Flangeless fuel tank carries a full 4.2 gallons of fuel.
  • Front brake master cylinder with integrated lever operates a pair of 298mm front discs squeezed by strong monoblock calipers for excellent power and feel, with a 310mm disc out back.
  • Strong, light and narrow belt final drive contains embedded carbon fiber for even greater strength.
  • Wiring harness uses super-slim wires for compactness and lighter weight, and switchgear wiring is routed inside the handlebar for a clean appearance.

Additional Features:

  • Left-thumb operated high-beam switch, and right-thumb activated accessory driving light switch for great visibility.
  • Jewel-like fit and finish, and Star quality paint, chrome and attention to detail are evident all over the Raider.
  • Cool, tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital tripmeters, odometer and self-diagnostics.
  • Bright multireflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look.
  • 02 sensor and three-way catalyst reduce emissions.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
