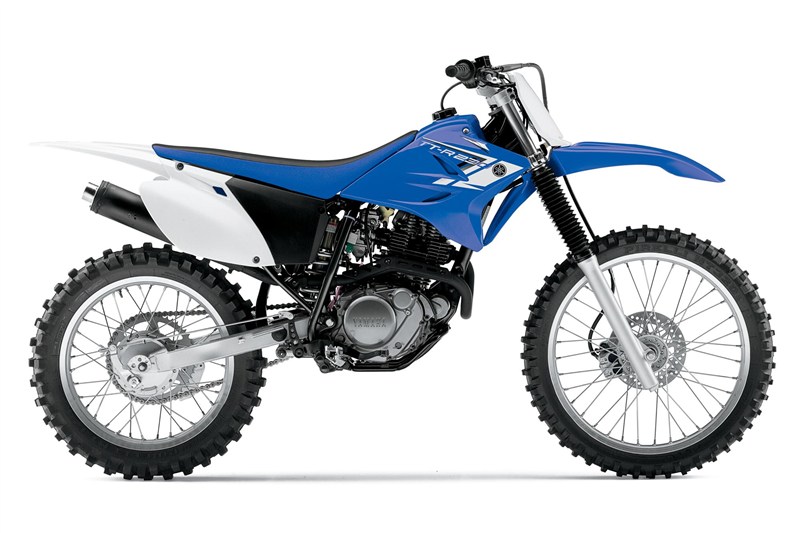

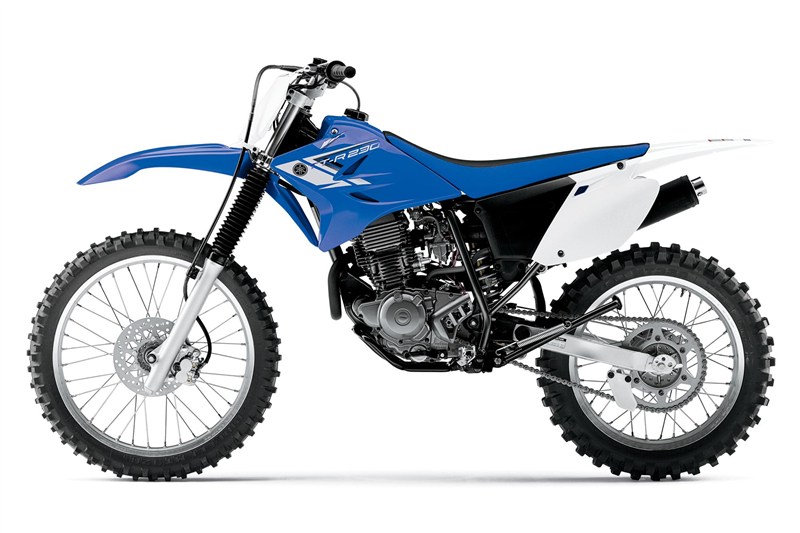

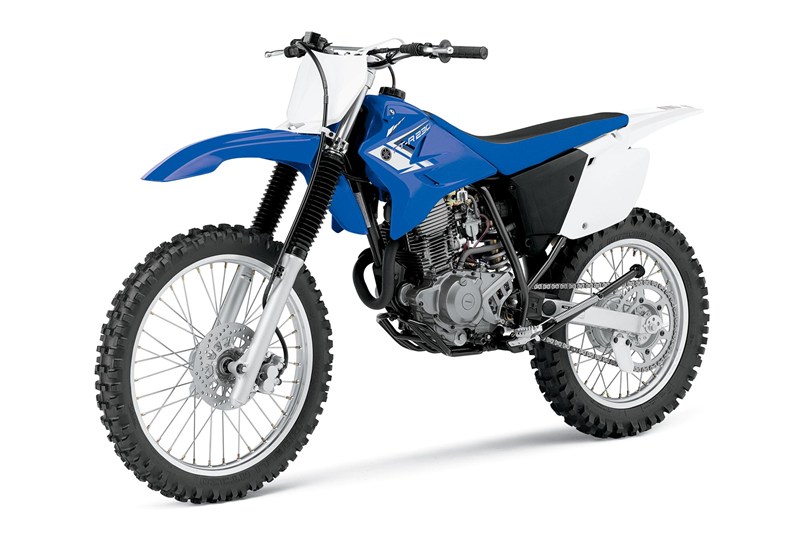

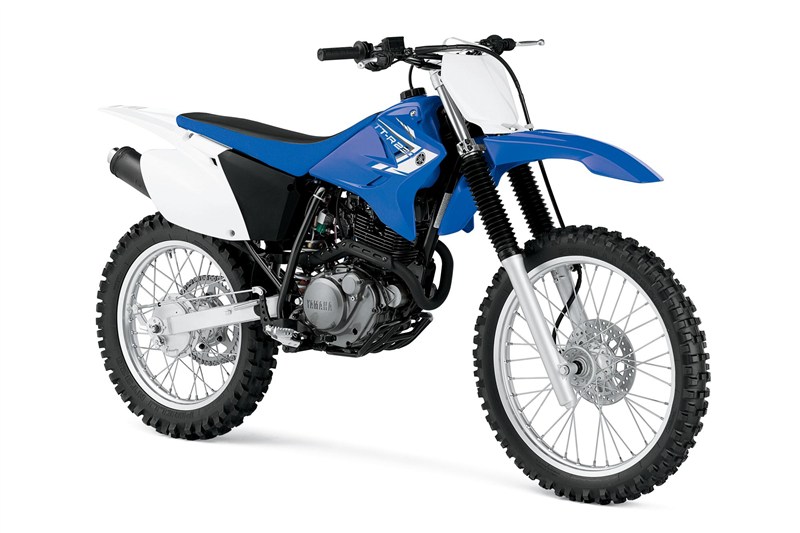

2013 Yamaha TT-R230

2013 Yamaha TT-R230
Team Yamaha Blue/White
MSRP: $3,990.00
Manufacturer: Yamaha
Condition: New

Description

  • YZ-inspired handling and looks, and a stout 223cc air-cooled, SOHC four-stroke producing predictable, broadband power, make the TT-R230 a great choice for beginner and intermediate riders.
  • Competition-style flat seat/tank junction for great rider mobility.
  • Electric start makes getting started a simple pushbutton exercise.
  • A low seat height on top of a long-travel suspension and 11.6 inches of ground clearance make this a serious trailbike that’s also accessible to a wide range of riders.
  • Steel, diamond-type-design frame means great handling and strength.

Specifications

Engine

Type
223cc air-cooled SOHC 4-stroke, 2 valves
Bore x Stroke
70.0mm x 58.0mm
Compression Ratio
9.5:1
Fuel Delivery
Carburetor
Ignition
CDI
Transmission
Constant-mesh 6-speed; multiplate wet clutch
Final Drive
Chain


Chassis

Suspension / Front
Telescopic fork; 9.4-in travel
Suspension / Rear
Single shock; 8.7-in travel
Brakes / Front
220mm single disc
Brakes / Rear
130mm drum
Tires / Front
80/100-21 NHS
Tires / Rear
100/100-18 NHS


Dimensions

Length
81.3 in
Width
31.5 in
Height
46.5 in
Seat Height
34.3 in
Wheelbase
54.5 in
Ground Clearance
11.6 in
Fuel Capacity
2.1 gal
Wet Weight***
251 lb


Other

Warranty
90 Day (Limited Factory Warranty)


Features

Engine:

  • Super-reliable, electric start, 223cc air-cooled, SOHC four-stroke puts out smooth, widespread power perfectly suited for all kinds of trails and riders.
  • Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.
  • CDI magneto ignition system is ultra-reliable and nearly maintenance-free.
  • YZ-type air filter for easy maintenance and maximum airflow.
  • Lightweight exhaust with quiet muffler and USFS-approved spark arrestor.
  • Automatic cam chain tensioner means minimal maintenance and longer engine life.

Chassis/Suspension:

  • Steel frame with compact wheelbase and low seat height combines accessibility to new or smaller riders with superb maneuverability and super-responsive handling.
  • Linkage-mounted adjustable rear shock serves up 8.7 inches of smooth, progressive rear wheel travel for great bump absorption and handling.
  • 36mm front fork with 9.4 inches of wheel travel provides plush, confidence-inspiring control over rough terrain.
  • 11.6 inches of ground clearance should be enough to deal with almost any trail.
  • Aluminum box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments.
  • Front 220mm disc and 130mm rear drum brakes for powerful, confident stops.
  • Full-size 21-inch front and 18-inch rear aluminum wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.

Additional Features:

  • Long gripper seat is low, comfortable, and allows easy rider movement.
  • Team Yamaha-inspired colors, graphics and front and side number plates create distinctive styling.
  • Sleek fuel tank with 2.1-gallon capacity for good range and excellent freedom of movement.
  • Large, folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions.
  • Durable fork boots provide excellent fork seal and stanchion tube protection.
