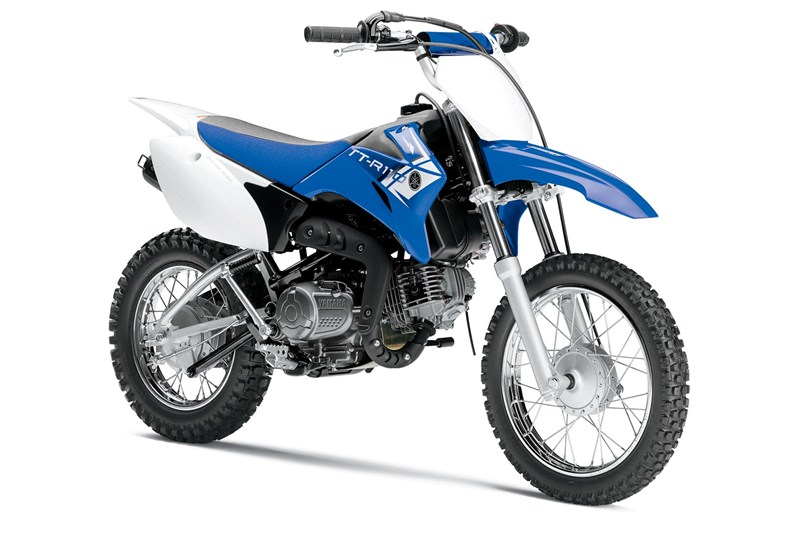

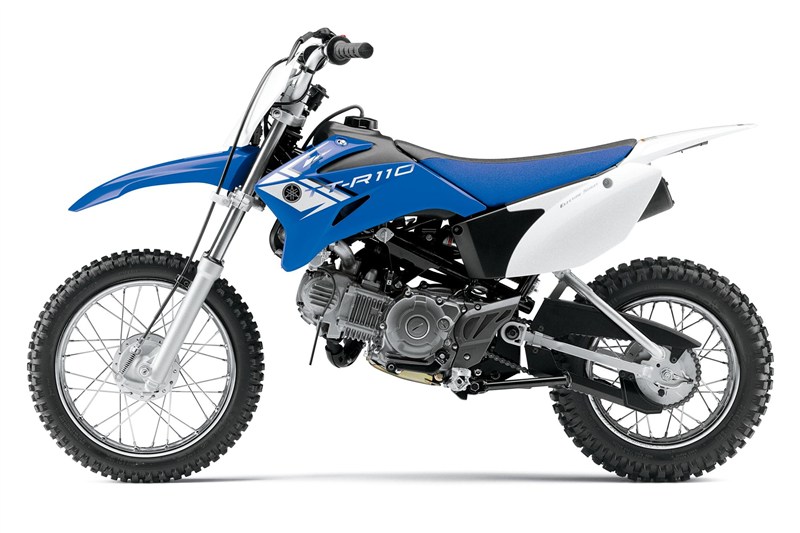

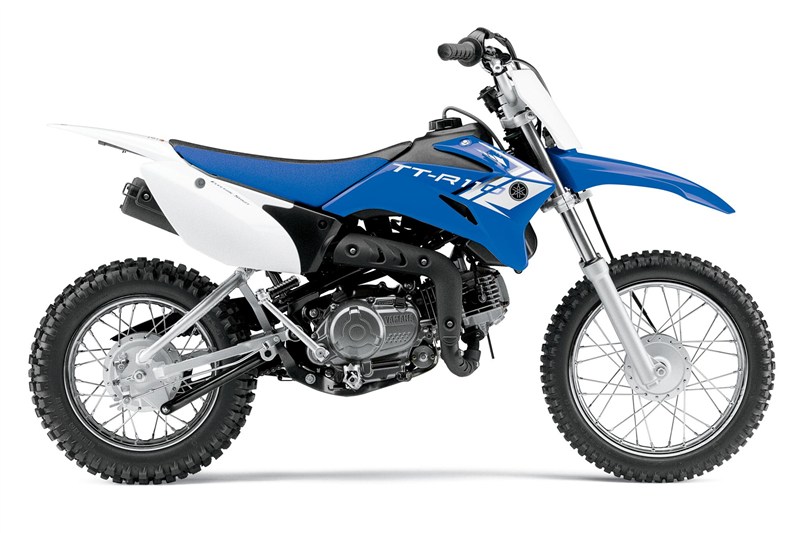

2013 Yamaha TT-R110E

2013 Yamaha TT-R110E
Team Yamaha Blue/White
MSRP: $2,240.00
Manufacturer: Yamaha
Condition: New

Description

  • Convenient electric starter for effortless starting.
  • Big fun for the whole family, the YZ-styled, four-stroke-powered TT-R110 begs to be ridden by everyone.
  • A seat height of only 26.4 inches makes this one accessible to most riders, but 7.1 inches of ground clearance and great suspension at both ends means it can go places.
  • Four-speed auto-clutch transmission has an easily accessible gear for nearly any terrain.

Specifications

Engine

Type
110cc air-cooled 4-stroke, SOHC
Bore x Stroke
51.0mm x 54.0mm
Compression Ratio
9.3:1
Fuel Delivery
Mikuni® VM16 carburetor
Ignition
CDI
Transmission
Constant-mesh 4-speed/wet, multiple disc
Final Drive
Chain drive


Chassis

Suspension / Front
31mm Telescopic fork, coil spring/oil damper, 4.5-in travel
Suspension / Rear
Swingarm (Monocross®), coil spring/gas-oil damper, 4.3-in travel
Brakes / Front
95mm drum
Brakes / Rear
110mm drum
Tires / Front
2.50-14-4PR
Tires / Rear
3.00-12-4PR


Dimensions

Length
61.6 in
Width
26.8 in
Height
36.3 in
Seat Height
26.4 in
Wheelbase
42.5 in
Ground Clearance
7.1 in
Fuel Capacity
1.0 gal
Wet Weight***
159 lb


Other

Warranty
90 Day (Limited Factory Warranty)


Features

Engine:

  • Torquey/powerful 110cc air-cooled SOHC four-stroke powerplant is tuned for maximum off-road performance in a wide range of trail conditions.
  • Compact hemispherical combustion chamber with 9.3:1 compression produces max torque at 4000 rpm, max horsepower at 7500 rpm.
  • Four-speed gearbox with automatic clutch has the right gear for wherever you ride.
  • Convenient electric starter for effortless starting, and backup kick starting.
  • CDI ignition system is ultra-reliable and never needs maintenance.
  • Automatic cam chain tensioner means minimal maintenance and longer engine life.
  • Easy-access, tool-free air filter adds extra convenience during maintenance.
  • Lightweight exhaust system features quiet, USFS-approved spark arrestor.

Chassis/Suspension:

  • Steel backbone frame ties steering head and swingarm pivot together via a straight line, with the engine mounted at three places for optimum strength and high ground clearance.
  • 31mm fork with high-tech internals including a damper valve with oil lock provides excellent damping, great bottoming resistance and 4.5 inches of smooth travel.
  • Monocross® rear suspension pivoting on a strong, 12mm shaft, along with a gusseted steel swingarm, provide excellent rear wheel control through 4.3 inches of travel.
  • Die-cast aluminum top triple clamp helps provide light, precise handling and looks great, too.
  • 26.4-inch seat height and 7.1 inches of ground clearance help inspire confident performance on rugged trails.
  • Front and rear drum brakes deliver strong, dependable stopping power.
  • 14-inch front and 12-inch rear wheels inspire great rider confidence by keeping the seat low and the steering light.
  • Knobby tires offer superb grip and exceptional wear.

Additional Features:

  • Long, YZ-style gripper seat is low, comfortable, and allows easy rider movement.
  • Team Yamaha-inspired colors, graphics and front and side number plates create styling similar to larger YZ lineup.
  • Large, folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions.
  • Key-type ignition switch deters unauthorized riding.
