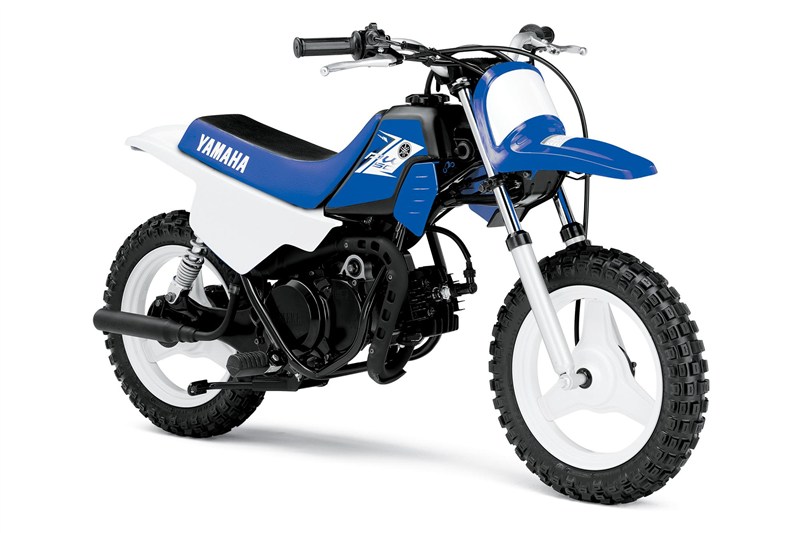

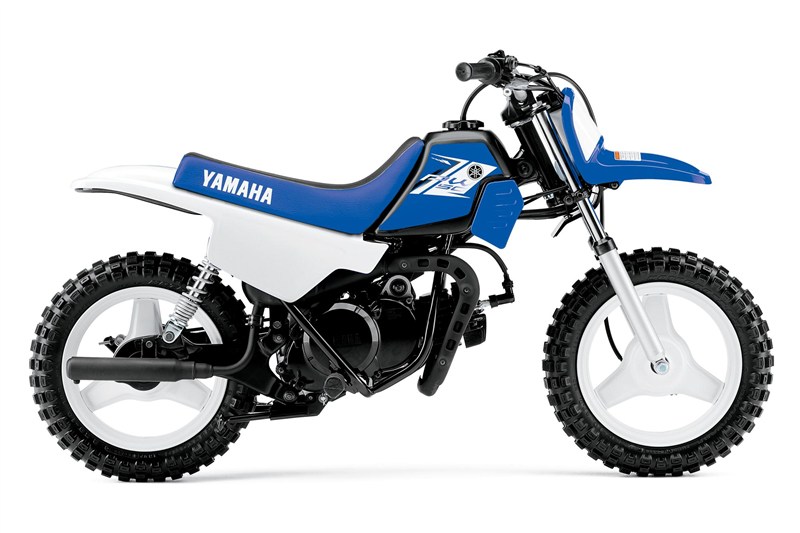

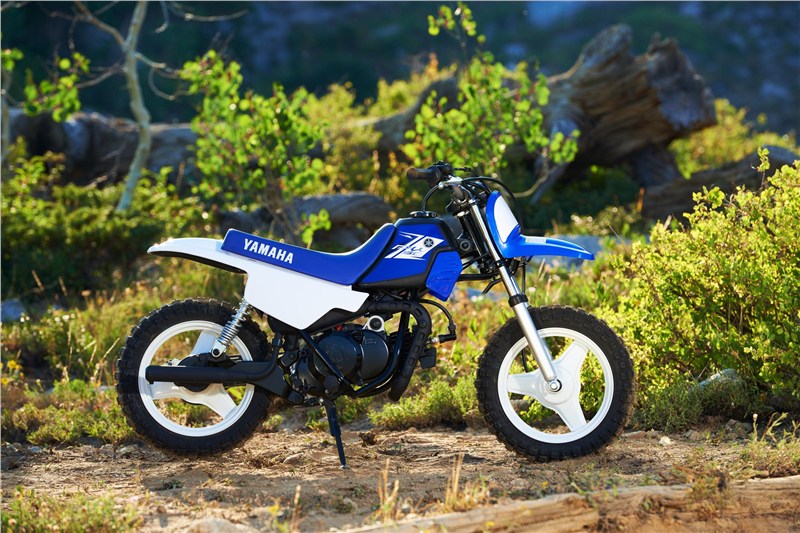

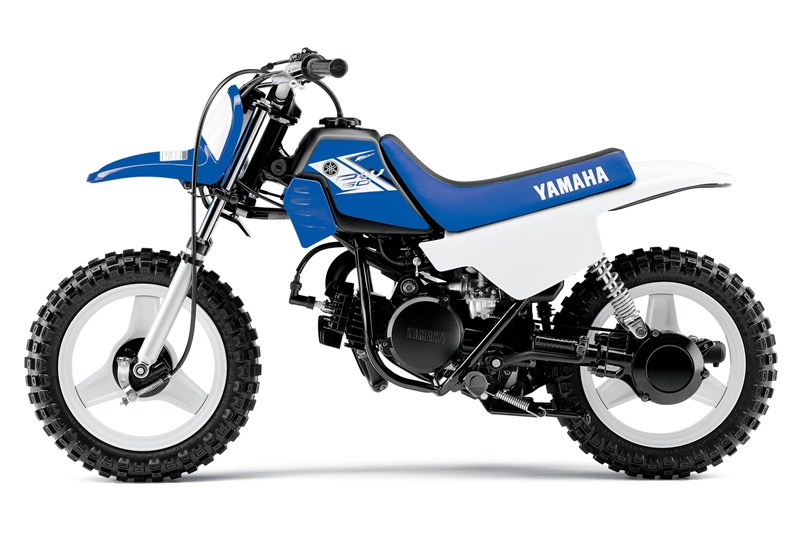

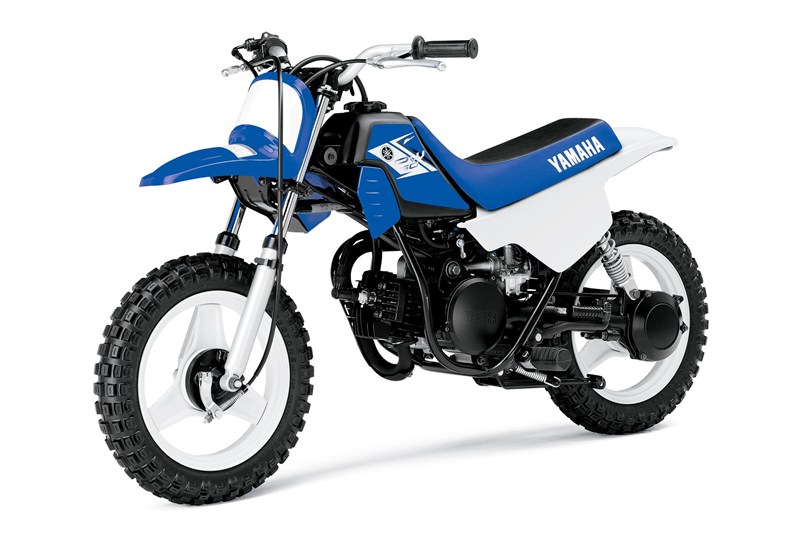

2013 Yamaha PW50

2013 Yamaha PW50
Team Yamaha Blue/White
MSRP: $1,440.00
Manufacturer: Yamaha
Condition: New

Description

  • Fully automatic transmission means no shifting required; the PW50 is a total twist-and-go package.
  • Torque-tuned, spunky little 49cc two-stroke is built to thrill without intimidating beginners.
  • A seat only 19.1 inches high makes this one the logical choice for the littlest rider in the group.
  • An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.
  • Shaft final drive makes chain maintenance a thing of the past.

Specifications

Engine

Type
49cc air-cooled 2-stroke; reed-valve inducted
Bore x Stroke
40.0mm x 39.2mm
Compression Ratio
6.0:1
Fuel Delivery
VM12 carburetor
Ignition
CDI
Transmission
Wet centrifugal automatic
Final Drive
Shaft


Chassis

Suspension / Front
Telescopic fork; 2.4-in travel
Suspension / Rear
Unit swingarm; 2.0-in travel
Brakes / Front
Drum
Brakes / Rear
Drum
Tires / Front
2.50-10-4PR
Tires / Rear
2.50-10-4PR


Dimensions

Length
49.0 in
Width
22.6 in
Height
28.1 in
Seat Height
19.1 in
Wheelbase
33.7 in
Ground Clearance
4.1 in
Fuel Capacity
.53 gal
Wet Weight***
86 lb


Other

Warranty
90 Day (Limited Factory Warranty)


Features

Engine:

  • 49cc air-cooled, case-reed–inducted, two-stroke single is tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.
  • Single-speed automatic transmission means the rider simply twists the throttle and goes, allowing him/her to concentrate on the ride ahead.

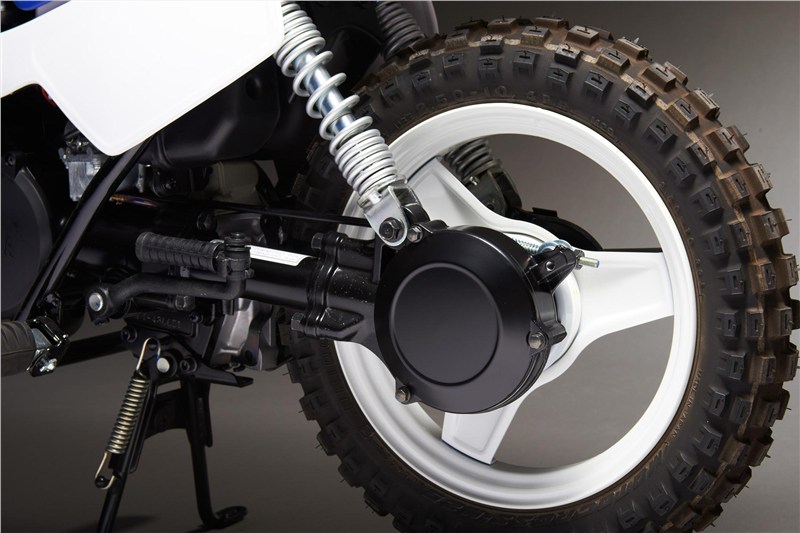

  • Class-exclusive shaft drive system is virtually maintenance-free and comes fully enclosed for added durability.
  • Exclusive autolube oil injection system eliminates the need for fuel/oil premixing.

Chassis/Suspension:

  • 19.1-inch seat height allows most kids to put both feet down for handling-enhancing and added confidence.
  • 22mm telescopic front fork with 2.4 inches of travel smoothes out the bumps for responsive handling.
  • Mag-style wheels mean there’s no need to tighten or replace spokes.
  • Dual rear shocks with 2.0 inches of travel smooth the trail to deliver confidence-inspiring ride quality.
  • Front and rear drum brakes provide smooth, predictable stopping power.
  • 10-inch front and rear knobby tires provide excellent traction and superior wear.
  • Quiet exhaust pipe, complete with removable baffle, is routed away from the rider.
  • Rear fender, seat and side panel unit removes quickly for ease of maintenance.

Additional Features:

  • A thick seat cushions the trail’s blows and allows maximum rider movement.
  • Team Yamaha-inspired colors, graphics and front and side number plates create styling just like the bigger off-roaders.
  • Large, folding footpegs with rubber grips provide excellent footing.

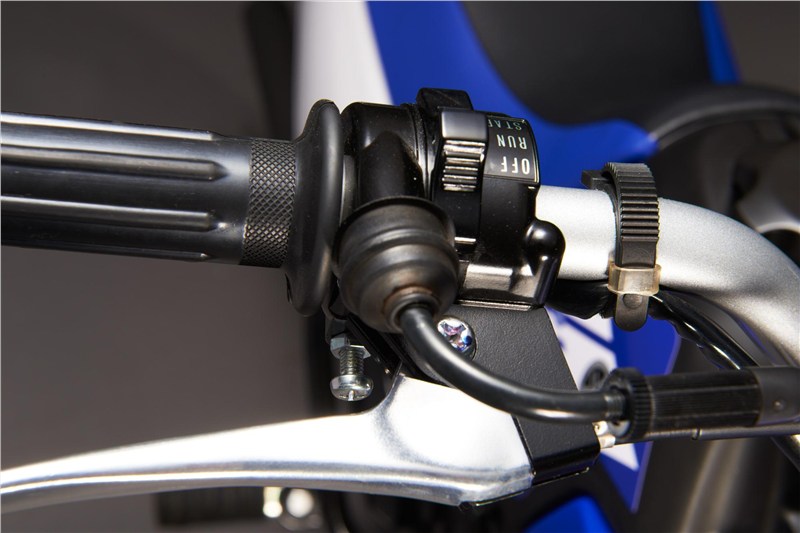

  • An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.
