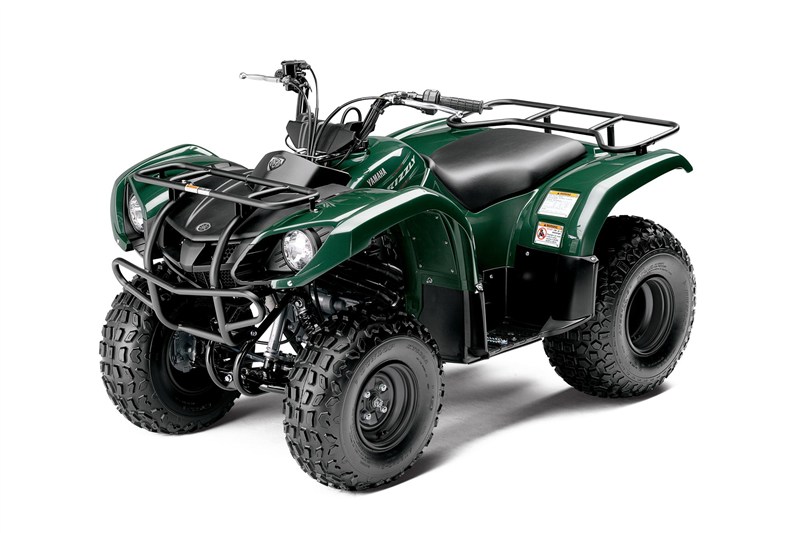

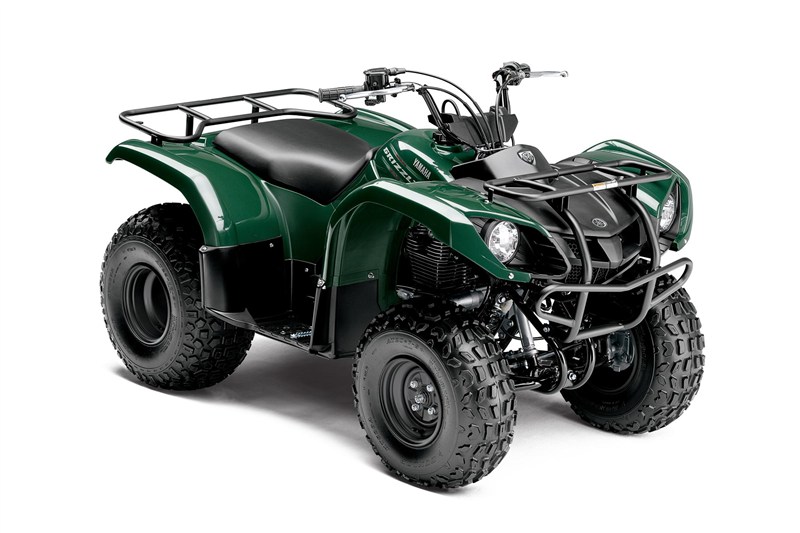

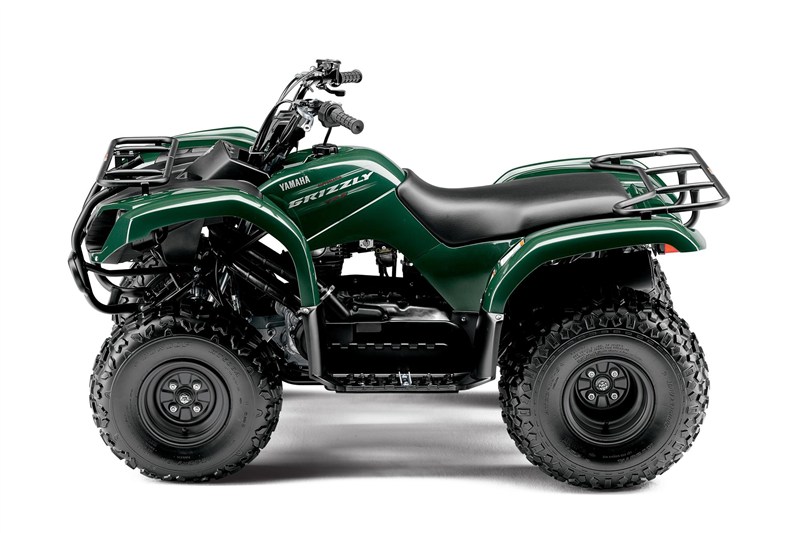

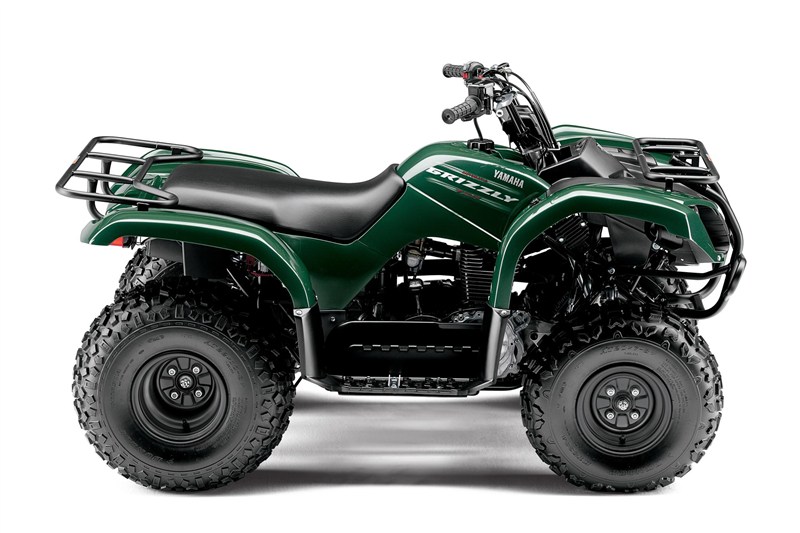

2013 Yamaha GRIZZLY 125 AUTOMATIC

2013 Yamaha GRIZZLY 125 AUTOMATIC
Hunter Green
MSRP: $3,699.00
Manufacturer: Yamaha
Condition: New

Description

  • Grizzly styling provides industry-leading good looks and durability, and a big Grizzly-style seat provides maximum rider comfort.
  • Fully automatic V-belt transmission with forward, neutral and reverse is simple to operate and eliminates the need for shifting.
  • Tough, powerful 124cc SOHC, four-stroke single cranks out plenty of smooth broadband propulsion.
  • Robust midsize steel frame fits a wide range of riders.
  • Rugged steel cargo racks can pack a total of 33 pounds of combined cargo—11 pounds up front and 22 on the rear.
  • Simple-to-use handlebar-mounted parking brake and choke lever for added convenience.
  • Wide front and rear fenders with integrated full floorboards provide mud and splash protection for a dry, comfortable ride.

Specifications

Engine

Type
124cc, 4-stroke, air-cooled single; SOHC
Bore x Stroke
49.0mm x 66.0mm
Compression Ratio
9.0:1
Fuel Delivery
Mikuni® 18mm
Ignition
DC - CDI
Starting System
Electric
Transmission
V-belt automatic/F, N, R
Drive Train
2WD; sealed O-ring chain


Chassis

Suspension / Front
Independent wishbone, 2.8-in travel
Suspension / Rear
Swingarm, 3.2-in travel
Brakes / Front
Dual sealed drum
Brakes / Rear
Sealed drum
Tires / Front
AT20x7-8
Tires / Rear
AT22x10-8


Dimensions

L x W x H
66.9 x 39.0 x 38.6 in
Seat Height
27.0 in
Wheelbase
42.5 in
Turning Radius
114 in
Ground Clearance
5.7 in
Fuel Capacity
2.0 gal
Wet Weight
335 lb
Rack Capacity
11 lb Fr./ 22 lb Rr.


Other

Instrumentation
N/A
Lighting
Dual 30W Krypton multireflector headlights; 21W/5W brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

Engine:

  • Powerful 124cc air-cooled four-stroke single delivers reliable, smooth engine performance for all riders.
  • Simple-to-operate selector knob lets you effortlessly select forward, neutral or reverse.
  • Adjustable throttle limiter lets adult supervisor add power gradually as beginning riders 16 years and older gain experience.
  • Reliable, pushbutton electric start in any gear adds extra convenience and dependability.
  • Rugged muffler with USFS-approved spark arrestor provides quiet operation.
  • Automatic cam chain tensioner reduces engine maintenance and extends engine life.

Chassis/Suspension:

  • Independent A-arm front suspension with 2.8 inches of travel delivers a smooth, plush ride and responsive steering.
  • Rugged swingarm packing a single rear shock with 3.2 inches of travel smoothes out the bumps for a comfortable ride.
  • Class-leading low 27-inch seat height enhances rider comfort and allows for great handling.
  • 5.7-inch ground clearance allows smooth riding in a wide variety of terrain.
  • Fully sealed front and rear drum brakes provide strong, reliable stopping power.
  • Brawny 20x7-8 front and 22x10-8 rear knobby tires offer excellent traction and boost ground clearance.

Additional Features:

  • Dual 30-watt multireflector Krypton headlights, set back in the front cowl, add the perfect menacing appearance.
  • Large 2-gallon fuel tank provides excellent range.
