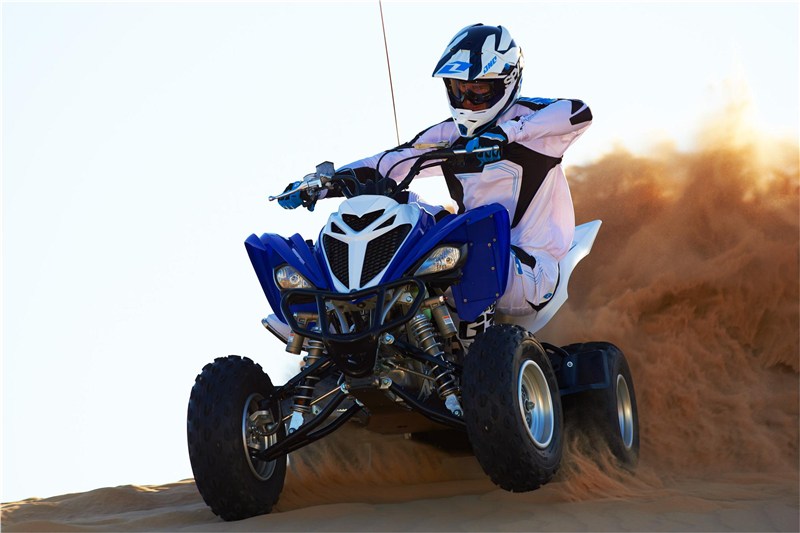

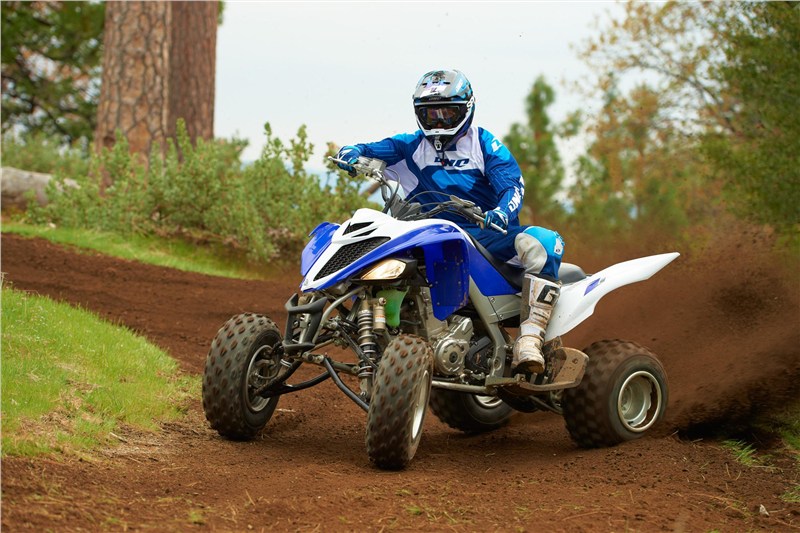

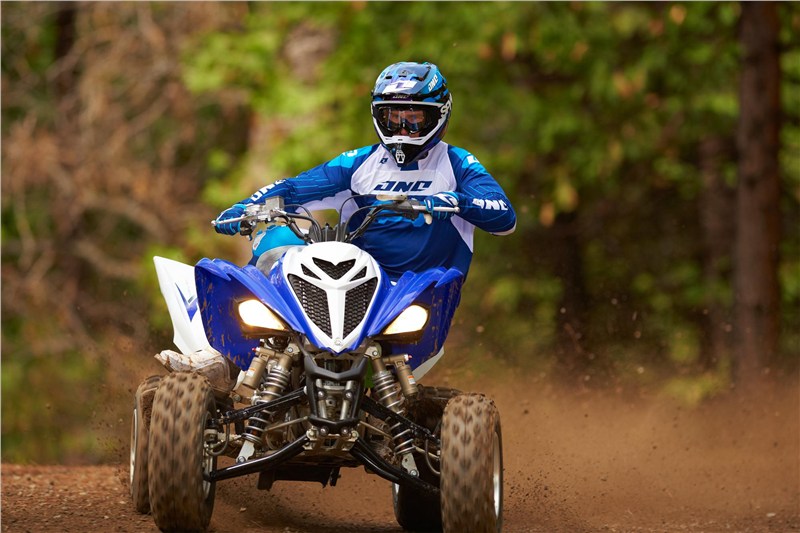

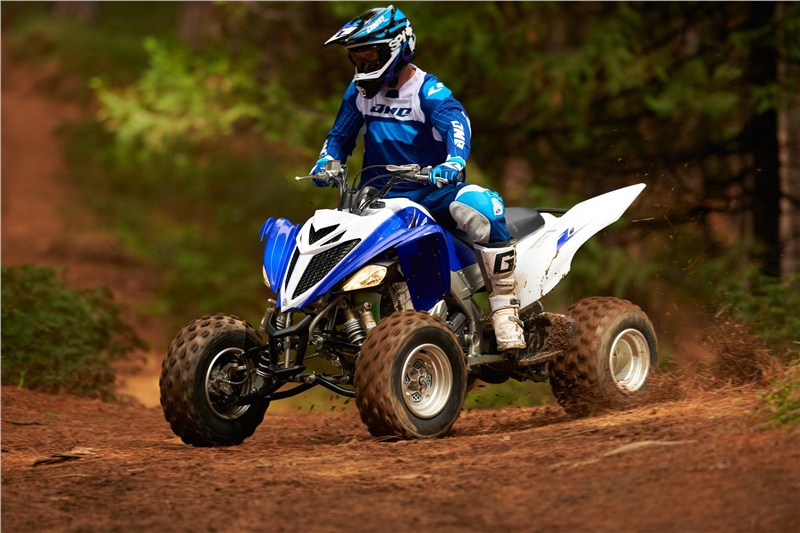

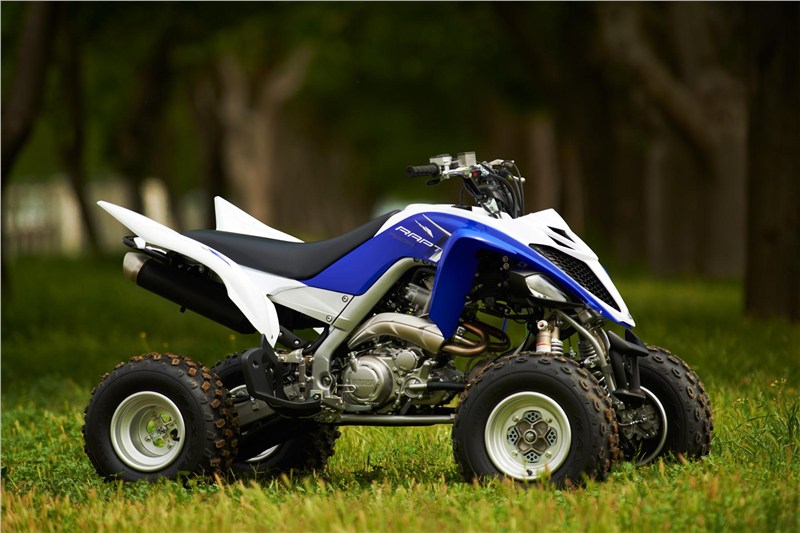

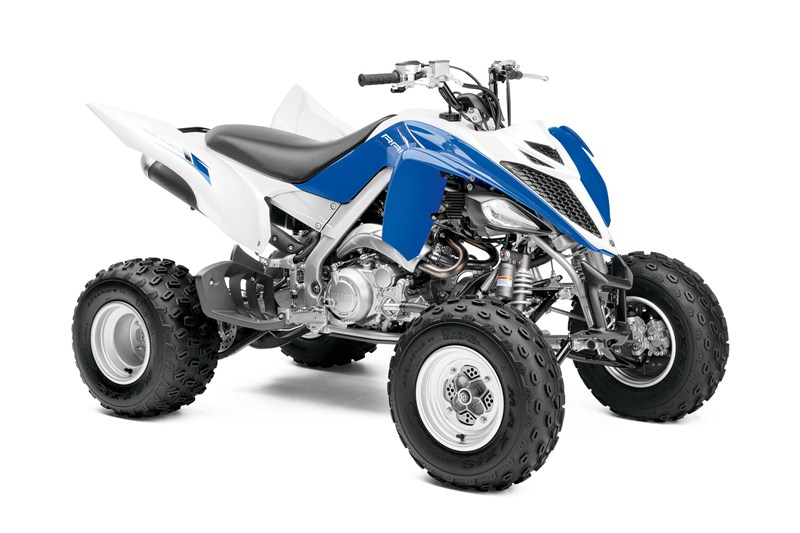

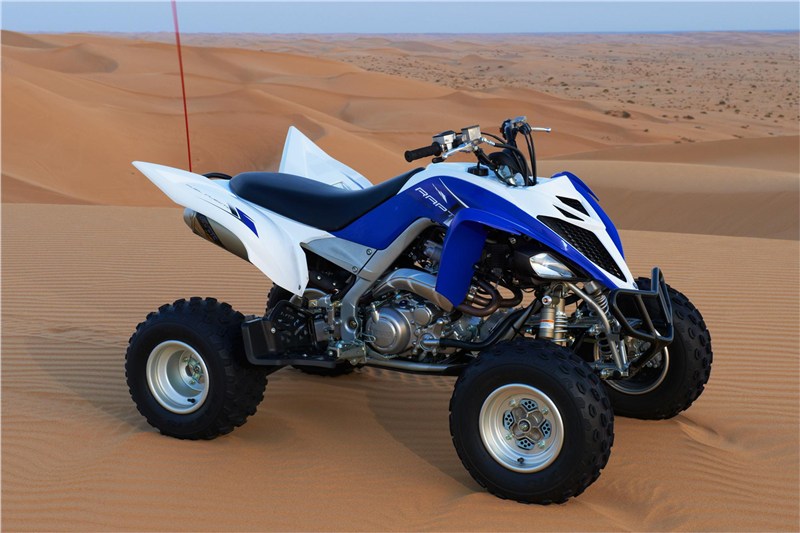

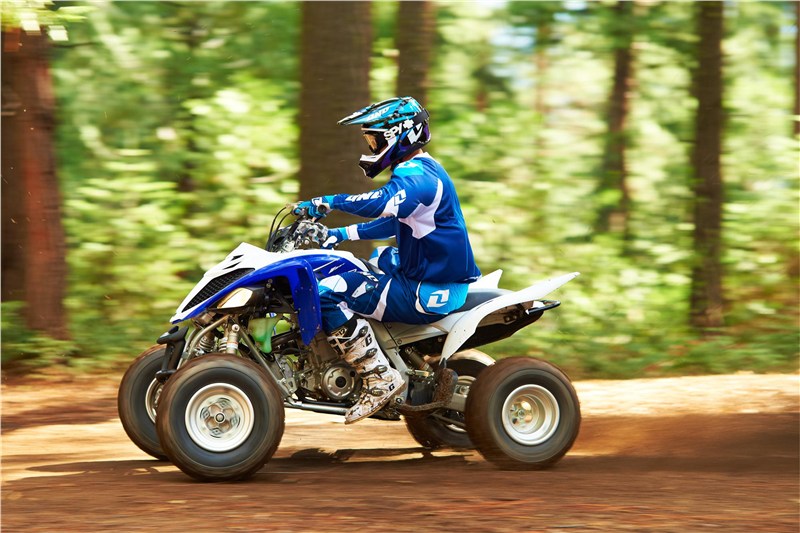

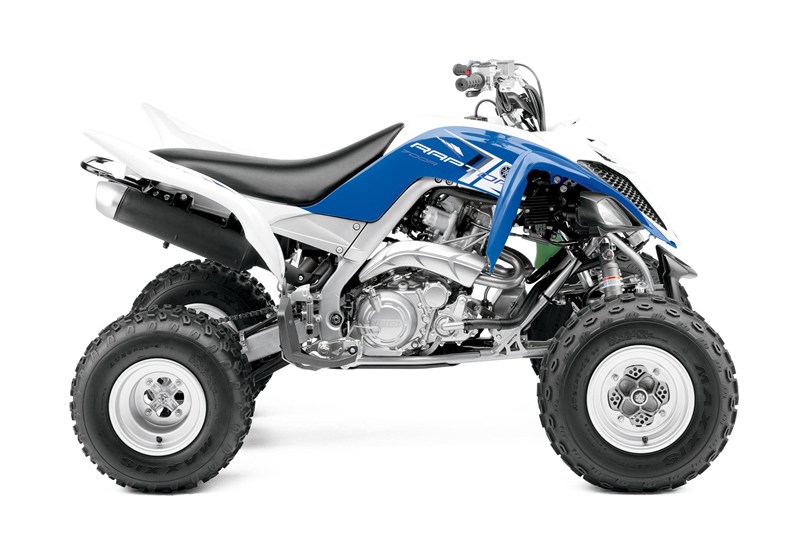

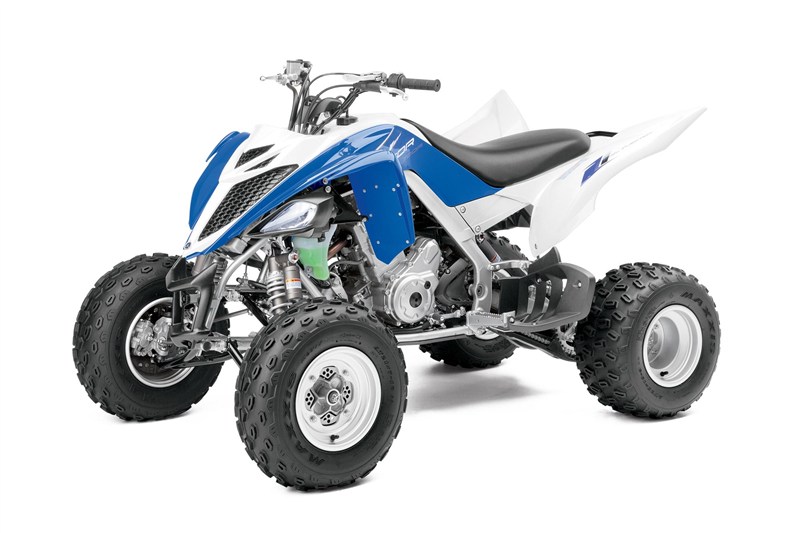

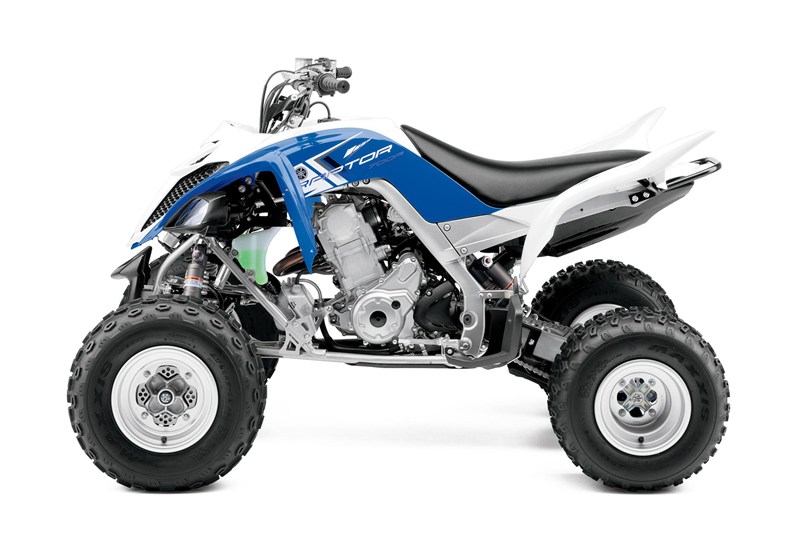

2013 Yamaha RAPTOR 700R

2013 Yamaha RAPTOR 700R
Team Yamaha Blue/White
MSRP: $8,099.00
Manufacturer: Yamaha
Condition: New

Description

  • Powered by our most potent big-bore Raptor engine ever – 686cc of liquid cooled, fuel-injected power. The engine produces big torque right off idle, transitioning into a fat mid-range and monstrous top-end.
  • New aggressive styling makes the Raptor 700R look as menacing as it really is. The mighty Raptor 700R is ready to go whether the destination is the dunes, the trails or the track.
  • Big power and lightweight, a combination that makes any ATV rider take notice, is standard on the Raptor 700R, with a hybrid steel aluminum frame and Controlled-Fill aluminum sub-frame and cast aluminum swingarm combining to produce a superstrong structure and the lightest ATV in its class.
  • A thick comfortable seat, adjustable suspension with sport-tuned piggyback shocks provide excellent comfort while the dual counterbalancers, electric starting, and reverse keep things nice and civilized when needed, but when it comes time to pull the trigger the big-bore Raptor 700R stands tall.
  • The YFZ inspired handling of the Raptor 700R is incredible to experience blasting through the woods. Thanks to the 9.1 inches of front travel and 10.1 inches out back, the trail bumps smooth out while the rider keeps things under control. With the combination of power, solid handling, and a great suspension this machine has to be experienced to be fully appreciated.

Specifications

Engine

Type
686cc liquid-cooled w/fan, 4-stroke; SOHC, 4 valves
Bore x Stroke
102.0mm x 84.0mm
Compression Ratio
9.2:1
Fuel Delivery
Yamaha Fuel Injection (YFI) , 44mm
Ignition
16-Bit ECU
Starting System
Electric
Transmission
5-speed w/reverse; wet multiplate clutch
Drive Train
2WD; sealed O-ring chain, eccentric adjustment


Chassis

Suspension / Front
Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment, 9.1-in travel
Suspension / Rear
Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment, 10.1-in travel
Brakes / Front
Dual ventilated hydraulic disc, twin piston
Brakes / Rear
Ventilated hydraulic disc, twin piston
Tires / Front
AT21 x 7-10
Tires / Rear
AT20 x 10-9


Dimensions

L x W x H
72.6 x 45.5 x 43.9 in
Seat Height
32.7 in
Wheelbase
50.4 in
Ground Clearance
4.4 in
Fuel Capacity
2.9 gal
Wet Weight
422 lb


Other

Lighting
Dual 30W Krypton multireflector headlights & 3.9/0.5W LED brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

New for 2013:

  • New styling enhances the Raptor 700R’s menacing looks.
  • Front and rear piggyback shocks offer full adjustability and optimal bump absorbing performance.
  • An adjustable front brake lever enables precise tuning for the rider’s personal preference.
  • New Maxxis® tires deliver class leading traction.
  • Twin piston rear brake caliper is added for excellent stopping power.
  • The Raptor 700R is proudly assembled in the U.S.A., alongside Yamaha’s 4x4 and Side x Side utility vehicles.

Engine:

  • Forged lightweight piston, connecting rod and crankshaft in the 686cc engine are light and strong, for a hard-hitting, quick-revving powerplant that revs all the way to 9000 rpm. Dual counterbalancers keep it smooth.
  • Yamaha Fuel Injection (YFI) means consistently excellent engine performance in a wide range of conditions, elevations and temperatures.
  • Competition-spec dry-sump lubrication system boosts usable horsepower and keeps overall engine size more compact.
  • Digital TCI w/16-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
  • Reliable pushbutton electric start in any gear adds extra convenience.
  • Race-bred five-speed transmission with reverse, along with Raptor 700R’s monstrous powerband, means there’s a choice of gears in just about all situations.
  • YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power. Heavy-duty clutch features extra-sturdy basket and plates designed to harness the Raptor 700R’s power.
  • Easy-to-reach oil filter and tool-free air filter provide added convenience.

Chassis/Suspension:

  • State-of-the-art chassis combines a steel front section with an aluminum rear section and detachable subframe to create a super-strong structure.
  • Compact, CAD-designed chassis creates the ideal wheelbase for light, quick, super-accurate steering.
  • Piggyback shocks provide excellent sport-riding comfort, with high- and low-speed compression adjustability, rebound and preload adjustability, and 9.1-inch travel.
  • YZ-style piggyback rear shock gives 10.1-inch wheel travel with high- and low-speed compression adjustability for maximum sport versatility, along with preload and rebound adjustment.
  • Front brake master cylinder features an adjustable lever for increased comfort and feel.
  • New twin piston rear brake caliper is added for excellent stopping power on the trail or in the dunes.
  • Twin aluminum-piston front disc brakes deliver tremendous stopping power. Discs are drilled, which helps reduce unsprung weight for excellent suspension compliance.
  • Cast aluminum swingarm carries an eccentric quick-adjust drive chain mechanism that takes most of the work out of that task.
  • Handlebar-mounted flip-type parking brake lever and rear brake caliper adjust automatically.
  • High-performance 21x7-10 front and 20x10-9 rear Dunlop® radials with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
  • Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
  • Race-inspired 45mm serrated footpegs provide excellent boot traction.

Additional Features:

  • Inner rolled wheels reduce weight while maintaining strength.
  • Long seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
  • Multireflector 30-watt Krypton headlights set back in the front cowl add the perfect no-compromises sporting accent, and an LED taillight provides great visibility.
  • Large-capacity, 2.9-gallon fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.
  • Thumb throttle lever has a smooth shape for a feel riders will appreciate, with less fatigue at the end of the day.
