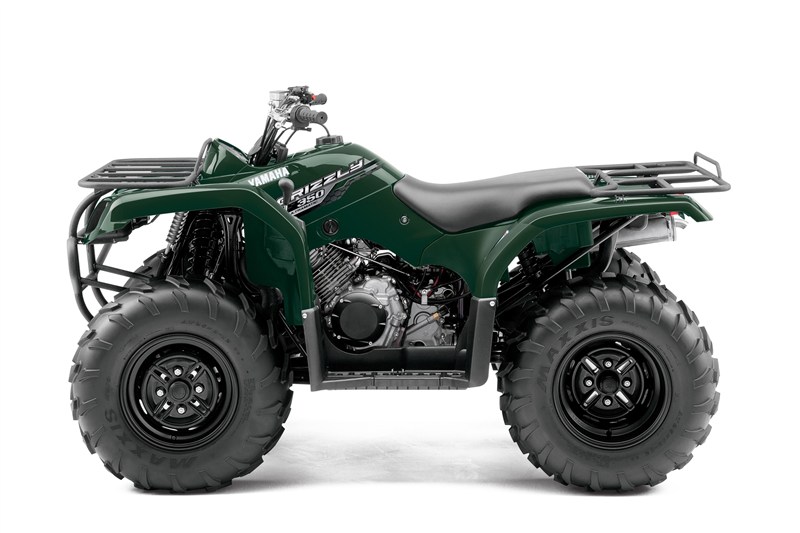

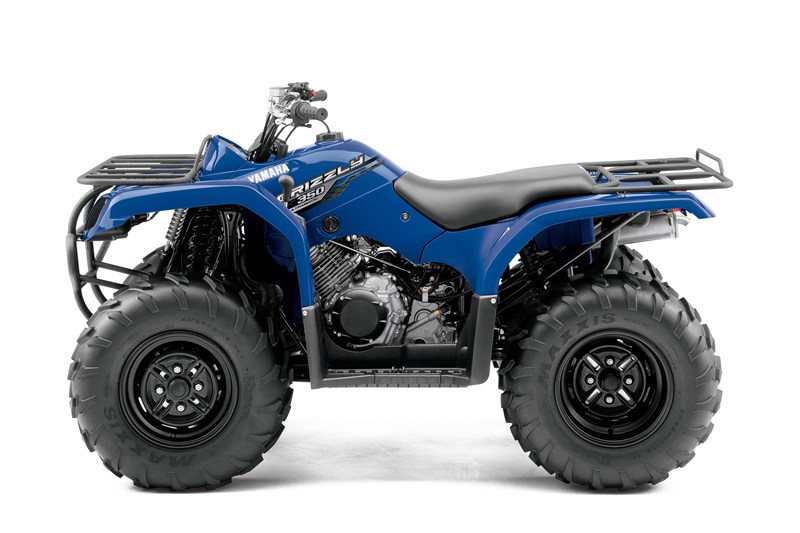

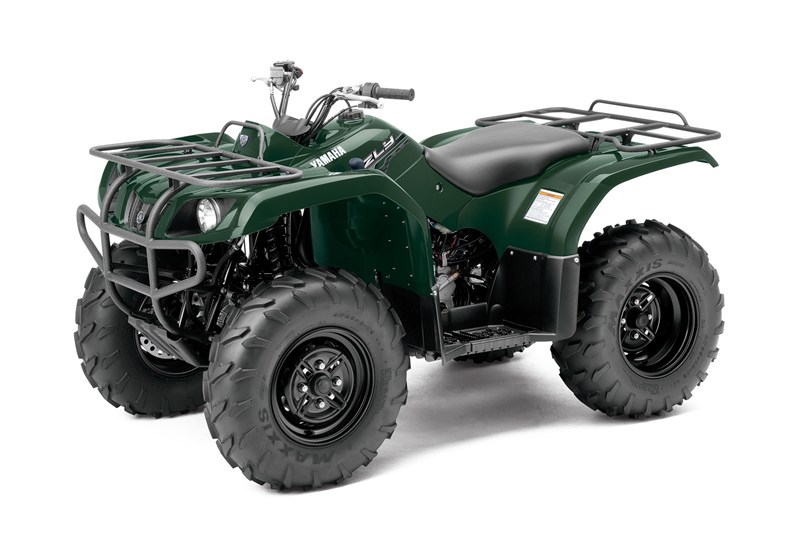

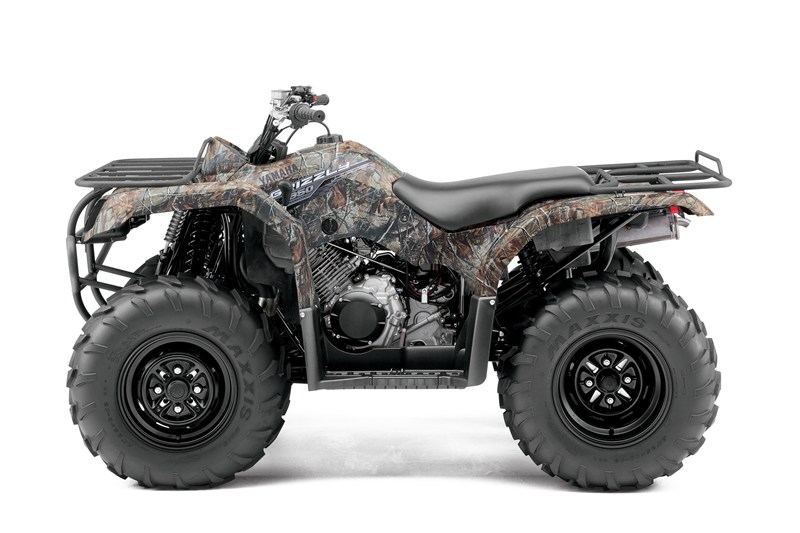

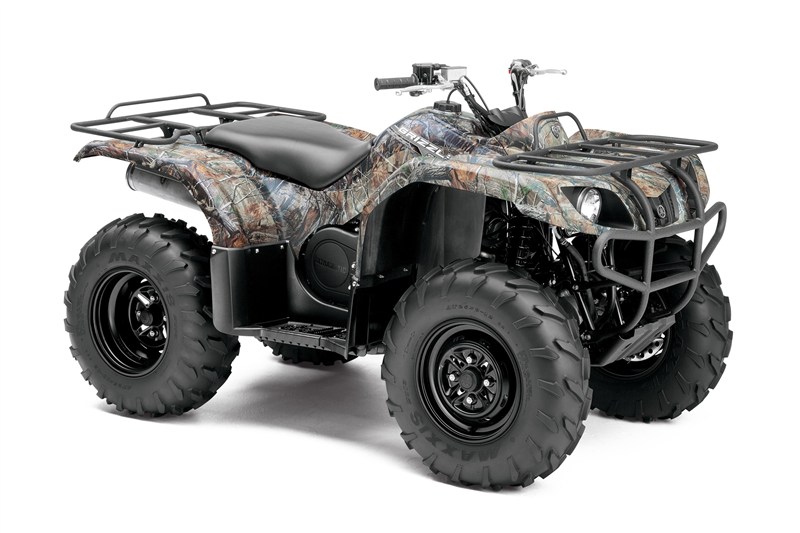

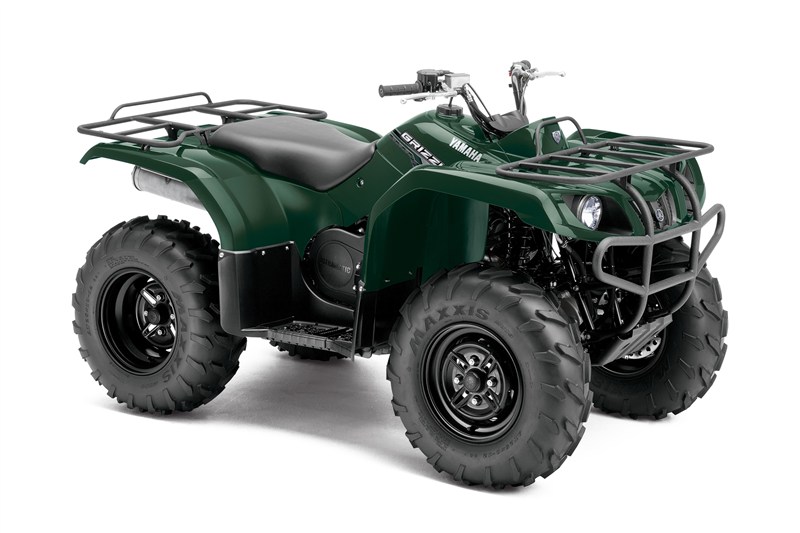

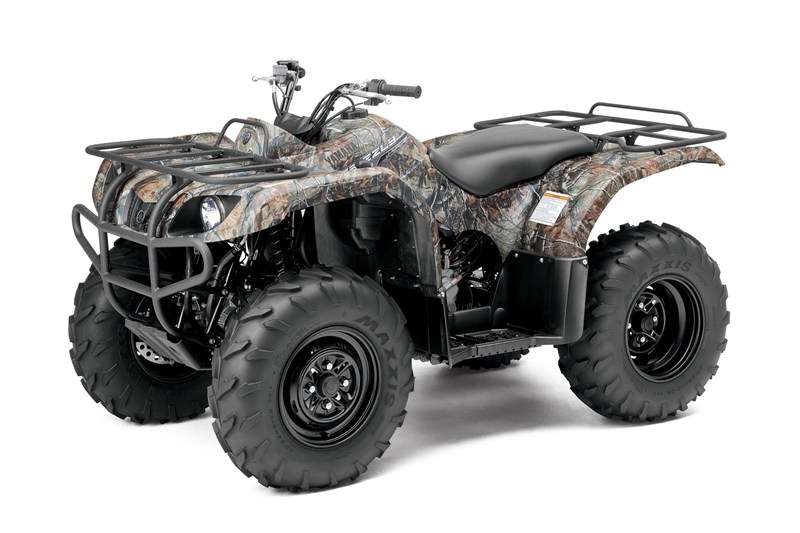

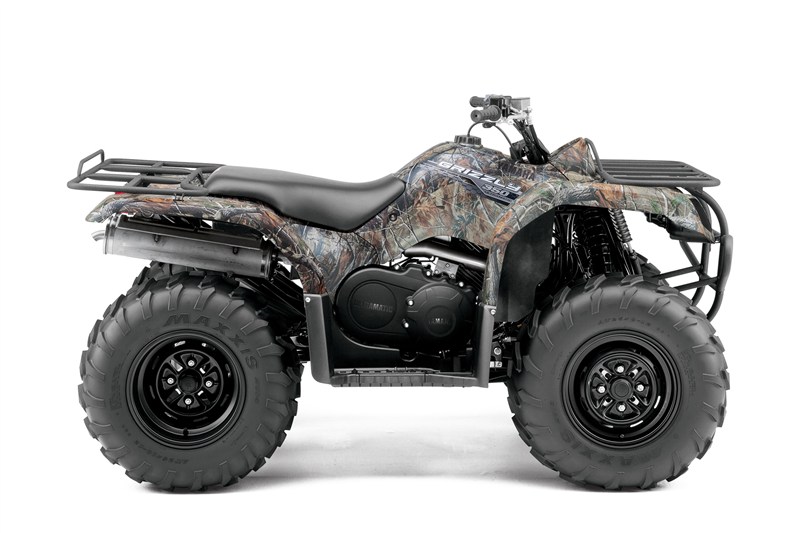

2014 Yamaha GRIZZLY 350 AUTO. 4X4

2014 Yamaha GRIZZLY 350 AUTO. 4X4

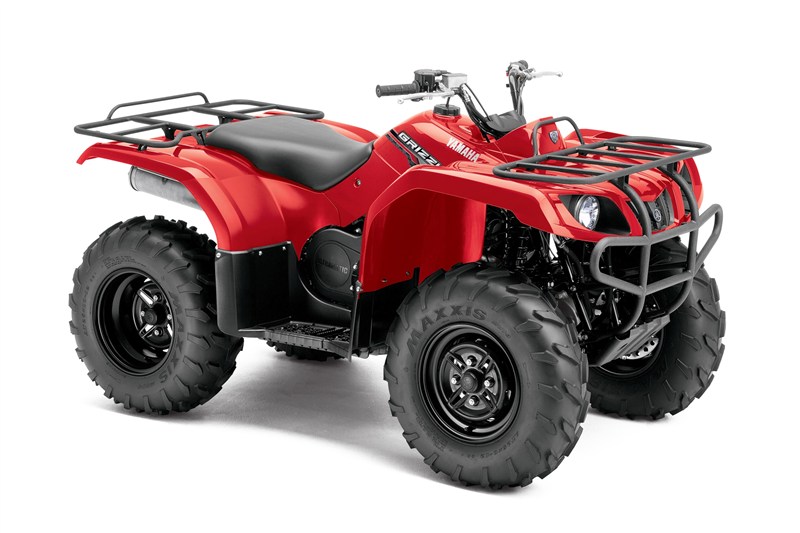

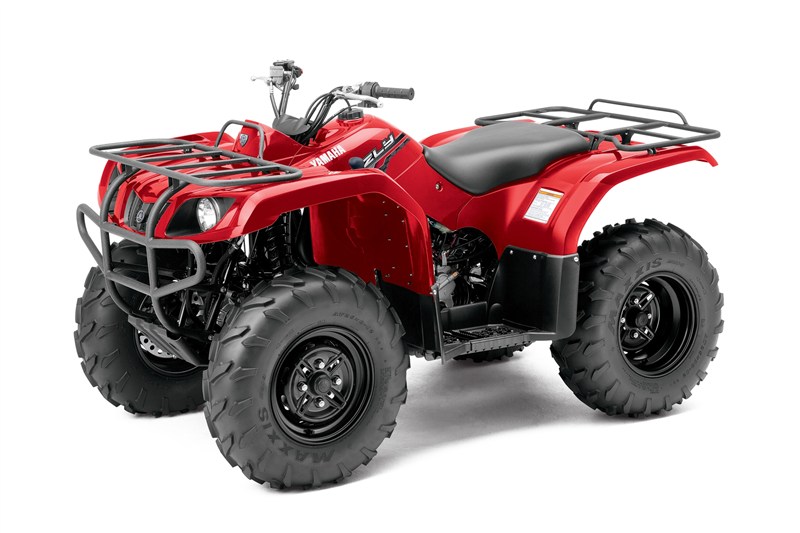

Red
MSRP: $5,599.00
Manufacturer: Yamaha
Condition: New

Description

  • The power-packed, highly reliable Grizzly 350 Automatic 4x4 solid axle carries a lot of advanced Yamaha ATV technology in an affordable package.
  • Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.
  • Three-position On-Command® 4WD sytem lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
  • Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling—even in 4WD.
  • Left-side-mounted F/N/R shift lever keeps throttle hand free while shifting.
  • Wide, fully integrated floorboards help keep feet dry, and serrated foot pegs provide extra grip in wet conditions.
  • Large-diameter ventilated hydraulic dual front disc and single rear drum brakes deliver consistent stopping power in a variety of conditions.
  • Aggressive 25x8-12 front and 25x10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.

Specifications

Engine

Type
348cc, 4-stroke, air/oil-cooled single; SOHC
Bore x Stroke
83.0mm x 64.5mm
Compression Ratio
9.2:1
Fuel Delivery
Mikuni® 33mm BSR
Ignition
DC - CDI
Starting System
Electric
Transmission
Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/ F, N, R
Drive Train
Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive


Chassis

Suspension / Front
Independent double wishbone; 6.3-in travel
Suspension / Rear
Swingarm; 7.1-in travel
Brakes / Front
Dual hydraulic discs
Brakes / Rear
Fully sealed drum
Tires / Front
AT25x8-12
Tires / Rear
AT25x10-12


Dimensions

L x W x H
78.1 x 42.7 x 44.1 in
Seat Height
32.6 in
Wheelbase
48.5 in
Turning Radius
118 in
Ground Clearance
9.7 in
Fuel Capacity
3.8 gal
Wet Weight
568 lb
Rack Capacity
88 lb Fr./176 lb Rr.
Towing Capacity
1102 lb


Other

Instrumentation
None
Lighting
Dual 30W Krypton multireflector headlights & 21W/5W brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

Engine:

  • Rugged and reliable 348cc air/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
  • Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
  • Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
  • Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
  • Specially designed drive system air intake helps prevent overheating and assists in keeping water and debris from entering the drive case.
  • Automatic cam chain tensioner reduces engine maintenance.

Chassis/Suspension:

  • Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
  • 9.7 inches of ground clearance and composite plastic skidplate improve maneuverability and undercarriage protection.
  • Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
  • 32.6-inch seat height for great handling.
  • Independent double-wishbone front suspension features 6.3 inches of travel.
  • Sturdy steel swingarm and single rear shock feature 7.1 inches of travel.
  • Heavy-duty front carry bar and CV joint guards help prevent damage to boot covers.

Additional Features:

  • Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
  • Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
  • Large front and rear fenders with inner guards offer excellent mud/splash protection.
  • Water-resistant, large-capacity underseat storage box provides added convenience.
  • Plush, specially designed seat is widely contoured for incomparable rider comfort.
  • Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.
  • Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
  • Easy-access, tool-free air filter box allows for quick maintenance.
  • Maintenance-free 12-amp-hour battery provides reliable cold-weather starting power.
  • Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
  • Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.
  • Easy, handlebar-mounted choke lever.
  • Assembled in Newnan, GA, U.S.A.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
