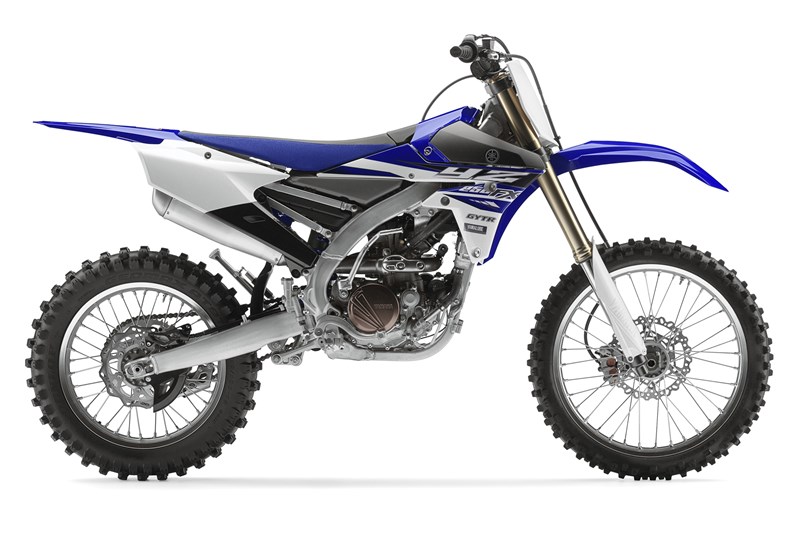

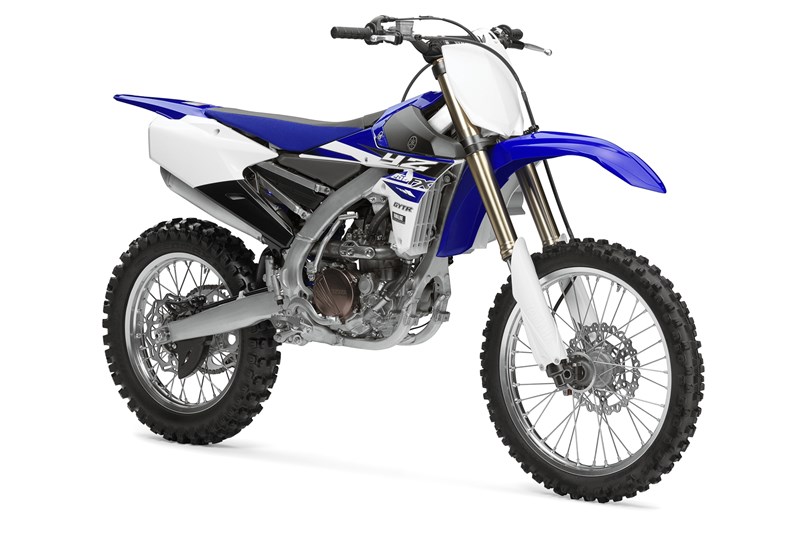

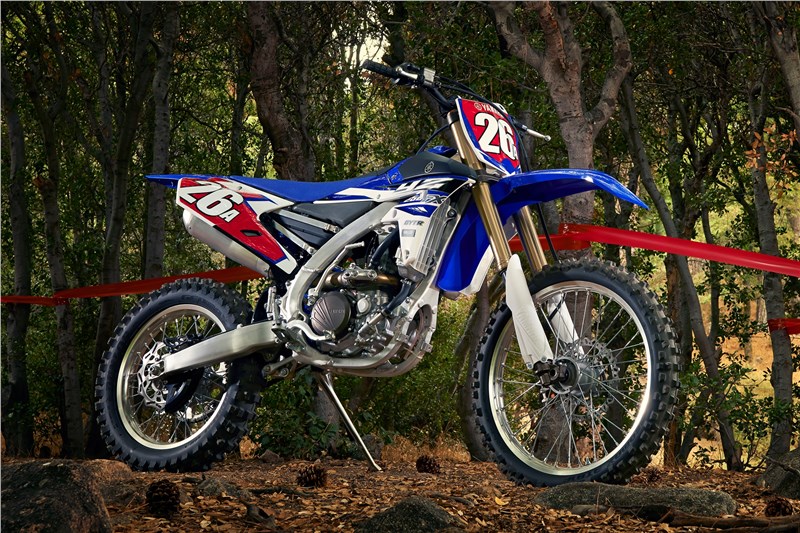

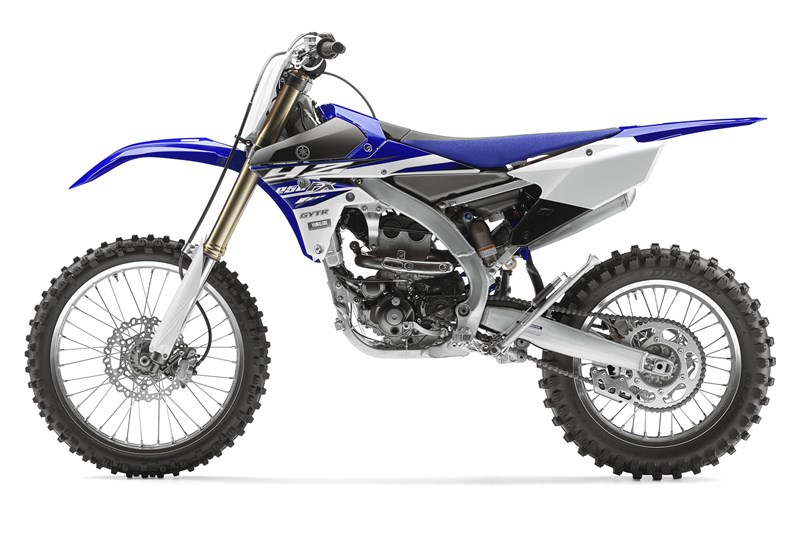

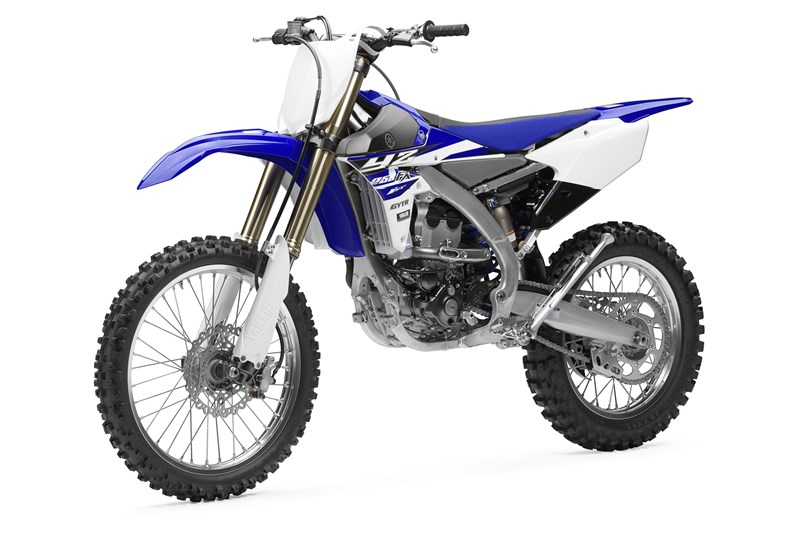

2015 Yamaha YZ250FX

2015 Yamaha YZ250FX
Team Yamaha Blue/White
MSRP: $7,890.00
Manufacturer: Yamaha
Condition: New

Description

  • All-New for 2015 with a revolutionary rearward slanted 250cc, liquid-cooled, DOHC 4-stroke with 4 titanium valves based on the 2015 YZ250F, with an added sixth gear and wide ratio transmission, among other modifications, make it an “out-of-the-box” Hare Scrambles/GNCC® competition machine.
  • Nearly the same bilateral beam frame that is found on the championship winning YZ250F is used on the FX. It places the engine and fuel tank close to the center mass of the bike for extremely light and nimble handling character.
  • A Keihin 44mm throttle body fuel injection system is tuned for cross-country racing and ensures smooth throttle response and easy starting in nearly all conditions.
  • Industry leading KYB® air/oil separation Speed Sensitive System forks and a KYB® rear shock suspension with settings designed specifically for cross country racing.
  • With a 2.1 gallon fuel tank, 18-inch rear wheel and XC racing tires, the YZ250FX is ready to win right out of the box.
  • The YZ250FX is the first YZ to feature electric start which helps reduce rider fatigue.

Specifications

Engine

Engine Type
250cc liquid-cooled DOHC 4-stroke; 4 titanium valves
Bore x Stroke
77.0 x 53.6mm
Compression Ratio
13.5:1
Fuel Delivery
Yamaha Fuel Injection (YFI) Keihin® 44mm
Ignition
TCI: Transistor Controlled Ignition
Transmission
Wide-ratio constant-mesh 6-speed; multiplate wet clutch
Final Drive
Chain


Chassis

Suspension / Front
KYB® Speed-Sensitive System; inverted fork; fully adjustable, 12.2-in travel
Suspension / Rear
KYB® Fully adjustable single shock; 12.5-in travel
Brakes / Front
Hydraulic single disc brake, 250mm
Brakes / Front
Hydraulic single disc brake, 245mm
Tires / Front
90/90-21 54M
Tires / Rear
110/100-18 64M


Dimensions

L x W x H
85.2 x 32.5 x 50.4 in
Seat Height
38.0mm
Wheelbase
57.7 in
Ground Clearance
12.8 in
Fuel Capacity
2.1 gal
Wet Weight***
249 lb


Other

Warranty
30 Day (Limited Factory Warranty)


Features

Top Features:

  • All-New for 2015 with a revolutionary rearward slanted 250cc, liquid-cooled, DOHC 4-stroke with 4 titanium valves based on the 2015 YZ250F, with an added sixth gear and wide ratio transmission, among other modifications, make it an “out-of-the-box” Hare Scrambles/GNCC® competition machine.
  • Nearly the same bilateral beam frame that is found on the championship winning YZ250F is used on the FX. It places the engine and fuel tank close to the center mass of the bike for extremely light and nimble handling character.
  • A Keihin 44mm throttle body fuel injection system is tuned for cross-country racing and ensures smooth throttle response and easy starting in nearly all conditions.
  • Industry leading KYB® air/oil separation Speed Sensitive System forks and a KYB® rear shock suspension with settings designed specifically for cross country racing.
  • With a 2.1 gallon fuel tank, 18-inch rear wheel and XC racing tires, the YZ250FX is ready to win right out of the box.
  • The YZ250FX is the first YZ to feature electric start which helps reduce rider fatigue.

Engine:

  • The revolutionary, rearward slanted, high-performance liquid-cooled, 4-stroke, 4-valve, fuel-injected engine has been tuned to challenge for race victories in the very competitive GNCC and Hare Scrambles race series.
  • The position of the engine moves the rotational mass of the cams towards the center of the bike which allows for a straight shot, down draft intake and straight exhaust port for ultimate performance. This keeps air box up high, out of dust and mud/water.
  • The fuel injection system uses 3-D mapped electronic control for the fuel and ignition timing that are optimized for cross-country racing.
  • A 6-speed wide-ratio transmission is used to insure the right gear is selected for a wide variety of terrain found in cross country racing.
  • The clutch plate material, springs, push lever and oil valve are optimized for cross-country racing.
  • Push button electric start makes starting the YZ250FX easy and convenient.

Chassis/Suspension:

  • An all aluminum bilateral beam frame similar to the YZ250F provides strength, lightness and durability for race conditions.
  • Industry favorite KYB® air/oil separate Speed Sensitive System spring forks with Kashima coating and KYB® rear shock, also with Kashima coating and featuring a large 50mm piston. Both the forks and rear shock are tuned specifically for cross country racing.
  • Special cross-country racing Dunlop AT81 tires are used to maximize traction while delivering excellent wear.

Additional Features:

  • Accessory GYTR® Power Tuner lets owners adjust air/fuel mixture and ignition timing maps to match engine performance characteristics to the rider and race conditions in a matter of seconds with the push of a few buttons.
  • Quick-adjust clutch, aluminum handlebars and a side stand are standard for added rider convenience.
  • Quick-release quarter-turn Dzus® air box fasteners for tool-less access to the air filter.
  • High-quality O-ring is tough and durable.
  • The YZ250FX is pre-wired for an optional radiator fan.
