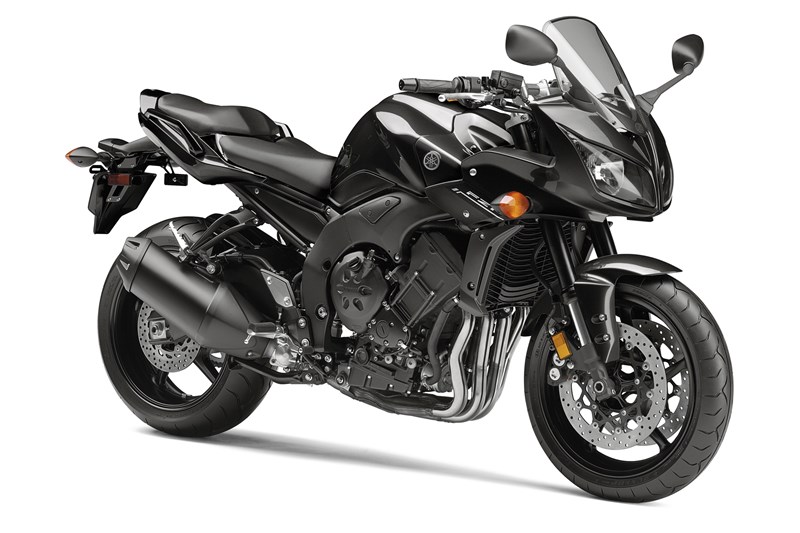

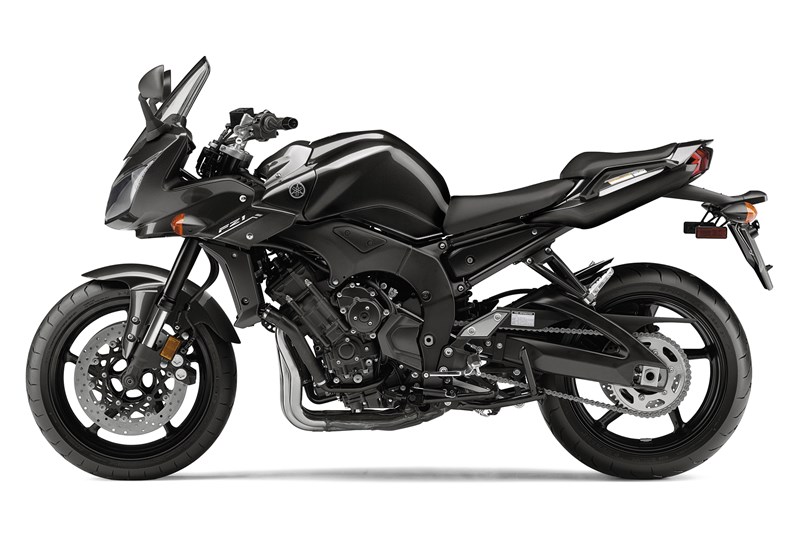

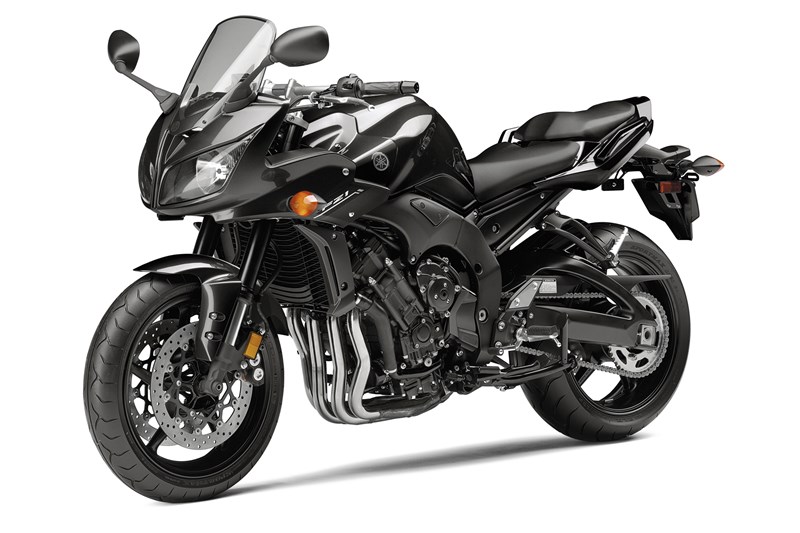

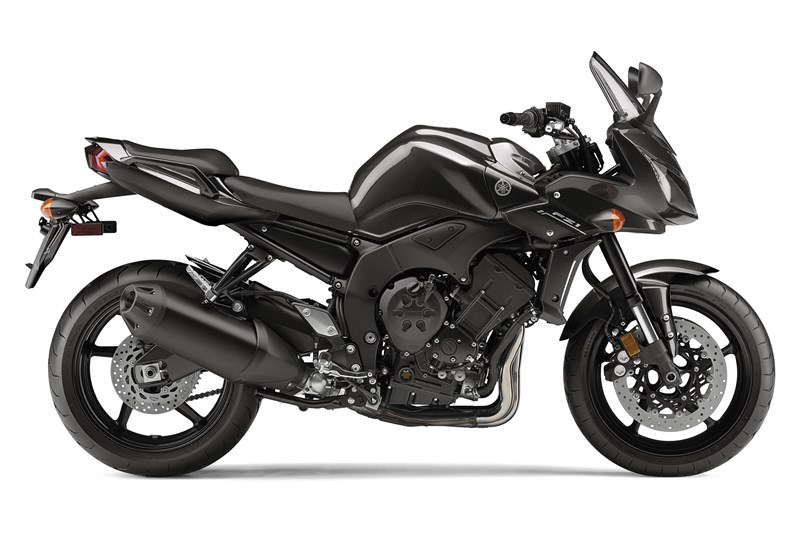

2015 Yamaha FZ1

2015 Yamaha FZ1
Granite Gray
MSRP: $10,790.00
Manufacturer: Yamaha
Condition: New

Description

  • Our ultimate street brawler brings 998cc of fuel-injected power to the fray, in a light-and-strong aluminum frame.
  • Sculpted bodywork and a comfortable handlebar position for great looks and rider comfort.
  • Fully adjustable 43mm inverted fork and a single shock with adjustable preload and rebound damping. Tunable for sport touring or urban assault.

Specifications

Engine

Engine Type
998cc liquid-cooled inline 4-cylinder; DOHC, 20 valves
Bore x Stroke
77 x 53.6mm
Compression Ratio
11.5:1
Fuel Delivery
Fuel injection
Ignition
Digital TCI: Transistor Controlled Ignition with 32-bit ECU
Transmission
6-speed w/multiplate wet clutch
Final Drive
O-ring chain


Chassis

Suspension / Front
43mm fork; fully adjustable, 5.1-in travel
Suspension / Rear
Single shock; adjustable preload and rebound damping, 5.1-in travel
Brakes / Front
Dual 320mm floating discs w/4-piston calipers
Brakes / Rear
245mm disc w/single-piston caliper
Tires / Front
120/70-ZR17
Tires / Rear
190/50-ZR17


Dimensions

L x W x H
84.3 x 30.3 x 47.4 in
Seat Height
32.1 in
Wheelbase
57.5 in
Ground Clearance
5.3 in
Rake (Caster Angle)
25.0°
Trail
4.3 in
Fuel Capacity
4.8 gal
Fuel Economy**
35 mpg
Wet Weight***
487 lb


Other

Warranty
1 Year (Limited Factory Warranty)


Features

Top Features:

  • Our ultimate street brawler brings 998cc of fuel-injected power to the fray, in a light-and-strong aluminum frame.
  • Sculpted bodywork and a comfortable handlebar position for great looks and rider comfort.
  • Fully adjustable 43mm inverted fork and a single shock with adjustable preload and rebound damping. Tunable for sport touring or urban assault.

Engine:

  • Compact design, 998cc DOHC 20-valve engine is tuned for tremendous mid-range punch and massive top-end power.
  • Fuel injection with computer-controlled sub-throttle valves provides precise fuel/air mixture for superb power delivery across the entire rev range.
  • Closed-deck cylinder block provides great strength while allowing a narrow engine in spite of big, 77mm bores.
  • Narrow-angle five-valve combustion chambers produce a highly efficient 11.5:1 compression ratio.
  • Carburized connecting rods with fracture split big ends produce a quick-revving engine with excellent high-rpm durability.
  • High silicon-content ceramic-composite cylinder lining reduces friction and maximizes heat dissipation for consistent power delivery.
  • Four-into two-into one short-style exhaust system with Exhaust Ultimate Power valve (EXUP®), a stainless catalizer and 02 sensor. Delivers outstanding power throughout the FZ1’s broad rpm range while meeting all emissions regulations.
  • Race-inspired curved radiator with twin ring-style fans keeps everything cool under all conditions.

Chassis/Suspension:

  • Aggressive chassis geometry with Supersport inspired 51 percent front wheel weight bias. Provides quick and nimble handling.
  • Short 4.8-gallon fuel tanks allows the rider to move into a forward position. Rider forward ergonomics move the rider into a position of great control.
  • Cast aluminum frame uses the engine as a stressed member. Allows for optimal rigidity, light weight, and superb handling.
  • Stressed-engine design holds the engine in place with six mounts, for excellent vertical stiffness and handling.
  • Controlled-Fill (CF) aluminum swingarm. Lightweight and tuned for excellent handling and tire grip; looks great, too.
  • Fully adjustable 43mm inverted fork and a single shock with adjustable preload and rebound damping. Tunable for sport touring or urban assault.
  • 320mm front discs squeezed by monoblock four-piston calipers up front and a single 245mm rear disc serve up strong and consistent stopping power.
  • Removable subframe for easy maintenance and detachable passenger foot pegs for even more stripped-down style.
  • Light, five-spoke wheels and fat radial tires, including a 190/50-ZR17 rear, complete the look and serve up the traction.

Additional Features:

  • Half-cowl fairing design features aggressive eye-catching naked bike profile.
  • High-tech instrument display features analog tachometer, digital speedometer, dual trip meter with miles on reserve function, odometer, water temperature and lights for neutral, high beam, low fuel and turn signals—also a fade-in lighting feature with adjustable brightness.
  • Two-piece seat serves up great comfort.
  • Passenger grabrails provide passenger comfort while maintaining an aggressive appearance.
  • Durable O-ring-sealed drive chain provides longer chain life.
  • Dual 12V 60/55-watt multireflector headlight features a sleek, profile for superb aerodynamics and visibility.
  • Standard toolkit located in convenient storage compartment under passenger seat.
