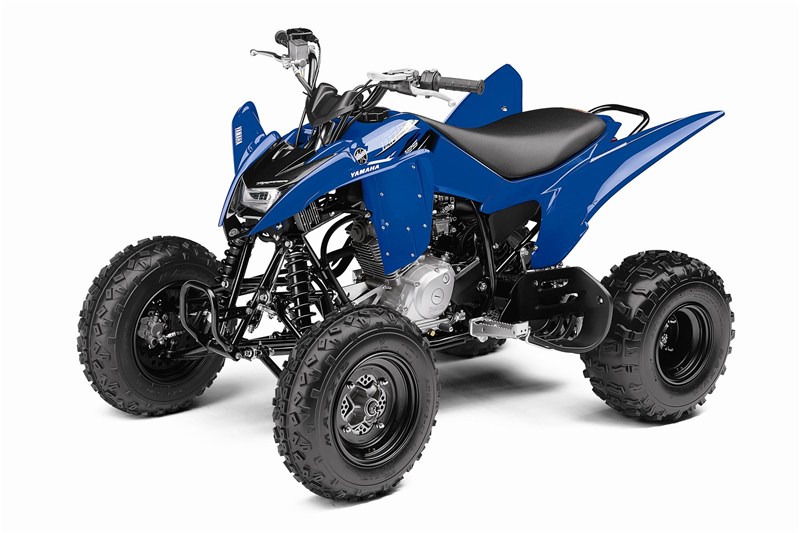

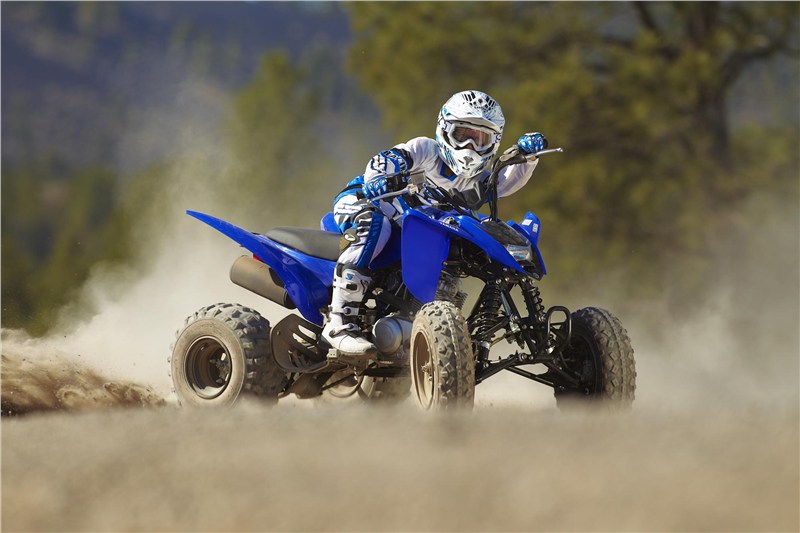

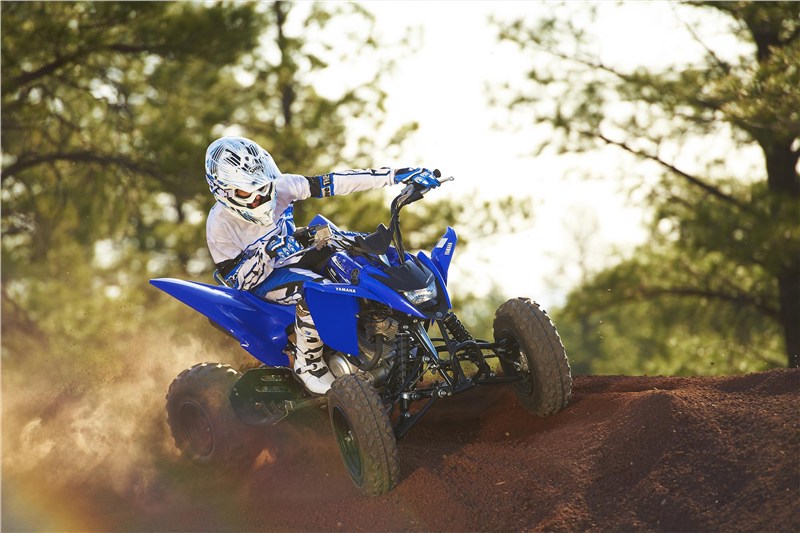

2012 Yamaha RAPTOR 125

2012 Yamaha RAPTOR 125

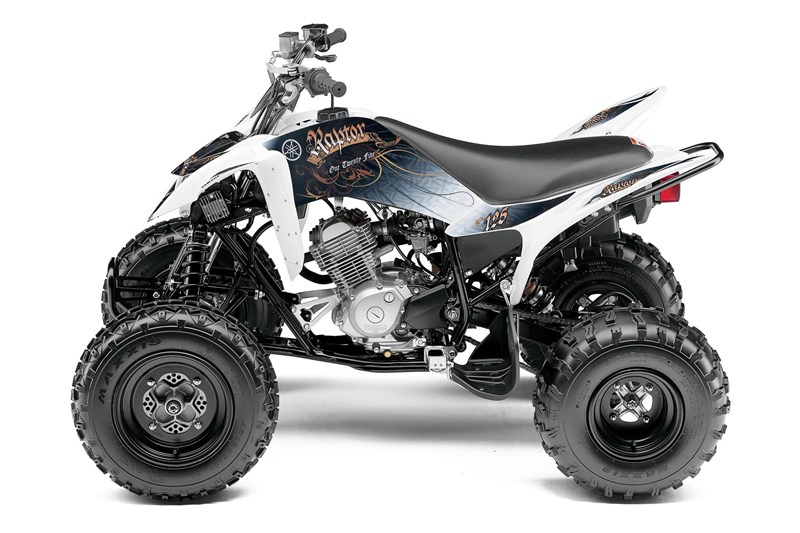

White w/Custom Graphic
MSRP: $3,399.00
Manufacturer: Yamaha
Condition: New

Description

  • Lightest production sport ATV ever provides amazingly nimble handling and a great power-to-weight ratio, for a ride beginners and more experienced riders alike will appreciate.
  • Handlebar, seat, and foot peg ergos are designed specifically for smaller riders aged 16 years and older.
  • Class-exclusive five-speed manual transmission has a gear for almost any terrain.
  • Powerful 125cc four-stroke engine comes to life with the push of the electric start button.
  • Low profile 18-inch rear Maxxis® tires offer superb traction and great handling.

Specifications

Engine

Type
124cc air-cooled 4-stroke: SOHC; single
Bore x Stroke
54.0 x 54.0mm
Compression Ratio
10.0:1
Fuel Delivery
Mikuni® 29mm BSR
Ignition
DC-CDI
Starting System
Electric
Transmission
5-speed; wet multiplate clutch
Drive Train
2WD; sealed O-ring chain, eccentric adjustment


Chassis

Suspension / Front
Independent double wishbone; 5-way preload-adjustable shocks, 7.5-in travel
Suspension / Rear
Swingarm: 7.9-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Hydraulic disc
Tires / Front
Maxxis® AT19 x 6-10
Tires / Rear
Maxxis® AT18 x 9-8


Dimensions

L x W x H
63.4 x 40.0 x 39.8 in
Seat Height
28.1 in
Wheelbase
43.7 in
Ground Clearance
3.3 in
Fuel Capacity
2.4 gal
Wet Weight
299 lb


Other

Lighting
Single 35/36.5W headlight & 21W/5W brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

Engine:

  • Light and powerful 124cc, SOHC, four-stroke single produces a broad powerband.
  • The engine is fitted with a single-axis counterbalancer to reduce vibration at the handlebars, seat, and footrests for a more enjoyable ride.
  • Five-speed gearbox with manual clutch provides the flexibility to tackle pretty much any track or trail.
  • Electric starting is standard equipment and works in any gear.
  • Mikuni® 29mm carburetor provides light throttle pull and excellent throttle response across the rpm range.
  • DC-CDI ignition system designed specifically for the Raptor 125 delivers optimum performance at all rpm levels.
  • Three-chamber muffler, a proven design straight from the Raptor 250, is light, quiet, and boosts low- and midrange performance.

Chassis/Suspension:

  • The seat and handlebar position are designed to offer an ideal riding position and maximum rider comfort.
  • Independent double-wishbone front suspension with five-way preload adjustable shocks gives 7.5 inches of wheel travel.
  • Rigid and light swingarm is controlled by a 7.9 inches of wheel travel, for consistent wheel control and rider comfort.
  • Low, 28.1-inch seat height provides rider comfort and allows optimal rider movement.
  • Triple hydraulic disc brakes deliver excellent stopping power even in wet conditions.
  • Easy-to-use eccentric chain adjuster means hassle-free chain maintenance.
  • Wide 19-inch front and 18-inch rear Maxxis® tires provide plenty of grip and awesome handling.

Additional Features:

  • Yamaha introduces an Industry First! Starting with the 2012 model year, every Sport ATV model will feature a white color version that can be customized with 1 of 11 graphic choices. After purchasing their ATV, customers order their customizable graphics from ONE® Industries.
  • Single 35-watt headlight boasts an aggressive look and offers great illumination.
  • YFZ-type parking brake for parking convenience.
  • Raptor and YFZ lineage rolled into one sporty looking package.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
