2012 Yamaha RAPTOR 90

2012 Yamaha RAPTOR 90

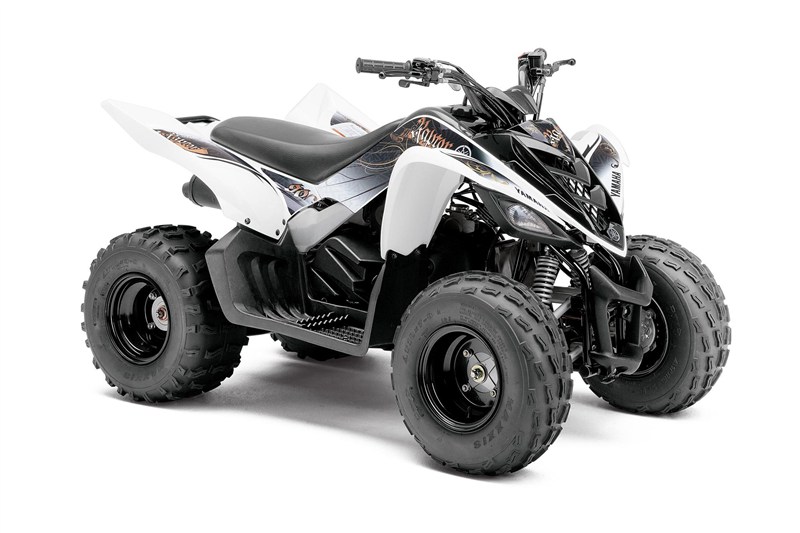

White w/Custom Graphic
MSRP: $2,699.00
Manufacturer: Yamaha
Condition: New

Description

  • The Raptor 90 has the features to deliver more fun than ever before, with a 88cc SOHC 2-valve engine tuned to develop excellent low-to-mid rpm range performance. It also has features surprising in this class and price range, like a fully automatic CVT transmission, dual A-arm front suspension, rear disc brake, low-profile tires, and styling unmistakably inspired by the mighty Raptor 700R.
  • Dual A-arm front suspension has 4.4-inches of travel for sporty-riding comfort, while adding to the Raptor 90’s big-ATV look. Shocks have 5-way preload adjustment to accommodate a variety of riders and terrain. The rear swingarm, also 5-way preload adjustable, offers 3.3-inches of travel.
  • For sporty looks and handling, Raptor 90 uses low-profile Maxxis® tires. For riding comfort, there are aggressive-looking full floorboards.
  • For strong, reliable stopping power, there’s a hydraulic disc brake with a drilled rotor in the back, and dual sealed drums in the front.
  • Restricting power output for learning riders is exceptionally convenient; there’s a simple plug-in for the CDI unit.
  • Available in an exclusive White version with two graphics choices young riders will love.

Specifications

Engine

Type
88cc, 4-stroke, air-cooled single; SOHC, 2-valve
Bore x Stroke
47.0mm x 51.0mm
Compression Ratio
10.2:1
Fuel Delivery
SVR22
Starting System
Electric, kick start backup
Ignition
DC-CDI
Transmission
Automatic CVT
Drive Train
Chain


Chassis

Suspension / Front
Independent double wishbone; 5-way preload adjustment, 4.4-in travel
Suspension / Rear
Swingarm; 5-way preload adjustment, 3.3-in travel
Brakes / Front
Dual sealed drum
Brakes / Rear
Hydraulic disc
Tires / Front
Maxxis® AT18 x 7-8; steel wheels
Tires / Rear
Maxxis® AT18 x 9-8; steel wheels


Dimensions

L x W x H
58.7 x 34.8 x 35.8 in
Seat Height
25.7 in
Turning Radius
114 in
Ground Clearance
3.9 in
Fuel Capacity
1.3 gal
Wet Weight
264 lb


Other

Lighting
None
Warranty
6 Month (Limited Factory Warranty)


Features

Engine:

  • The go-getter 88cc, 4-stroke, SOHC, 2-valve engine is tuned to develop excellent low-to-mid-range performance, just where it’s needed. Engine is force-air cooled for performance and long engine life, and it uses simple, reliable wet-sump lubrication.
  • Easy-to-operate electric starting comes standard, of course, and an emergency kick starter is also provided in a storage spot under the seat for more peace of mind.
  • Constantly variable transmission (CVT) means no shifting. Handy for all riders, it’s a feature entry-level riders particularly appreciate.
  • Engine power is transferred to the rear wheels via a tried-and-true chain drive.

Chassis/Suspension:

  • Dual A-arm front suspension has 4.4-inches of travel for sporty-riding comfort, while helping to give the front end the look of a big Raptor. Shocks have 5-way preload adjustment to accommodate a variety of riders and terrain. The rear swingarm, also 5-way preload adjustable, offers 3.3-inches of travel to enhance riding comfort and traction.
  • Raptor 90 is designed to be comfortable for a wide variety of riders. With its roomy ergonomics, growing riders 12 and older won’t outgrow the machine before they’re ready for more displacement when they’re older.
  • Maxxis® low-profile tires, AT18 x 7-8 front and AT18 x 9-8 rear, give Raptor 90 sporty looks and sporty handling. For riding convenience, there are aggressive-looking full floorboards.
  • For strong, reliable stopping power, there’s a hydraulic disc brake in the back with a drilled rotor that’s protected against rocks and other obstacles by a beefy guard. Up front, there are dual sealed drums. There’s a handlebar-mounted parking brake, too.

Additional Features:

  • The DC-CDI digital ignition timing control system means reliable performance, with a strong, efficient spark.
  • Battery and other electrical components are conveniently and centrally located for service. Waterproof connectors add to the overall reliability.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
