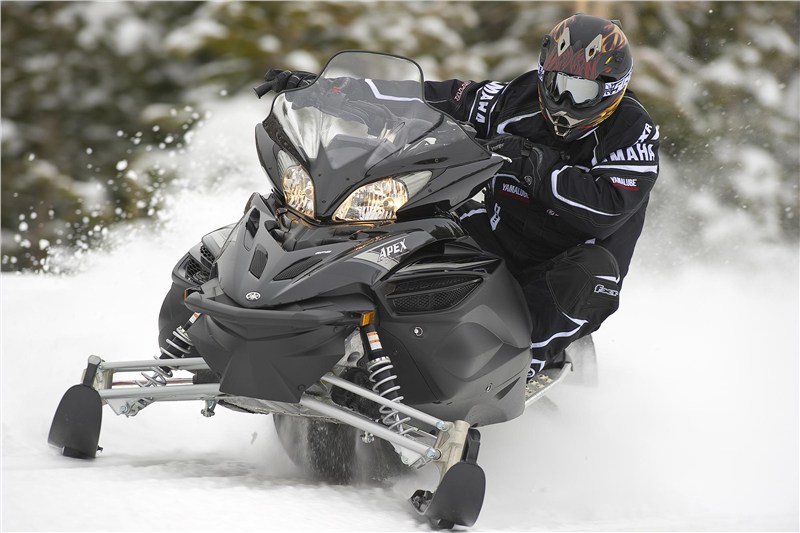

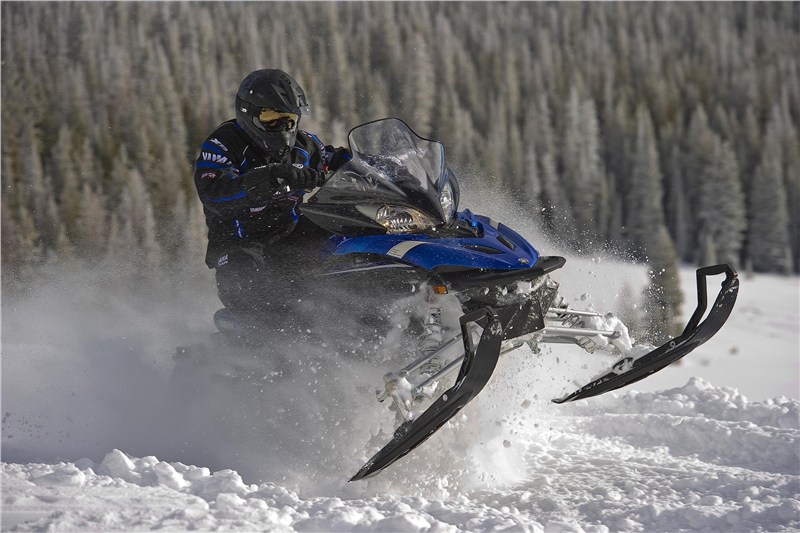

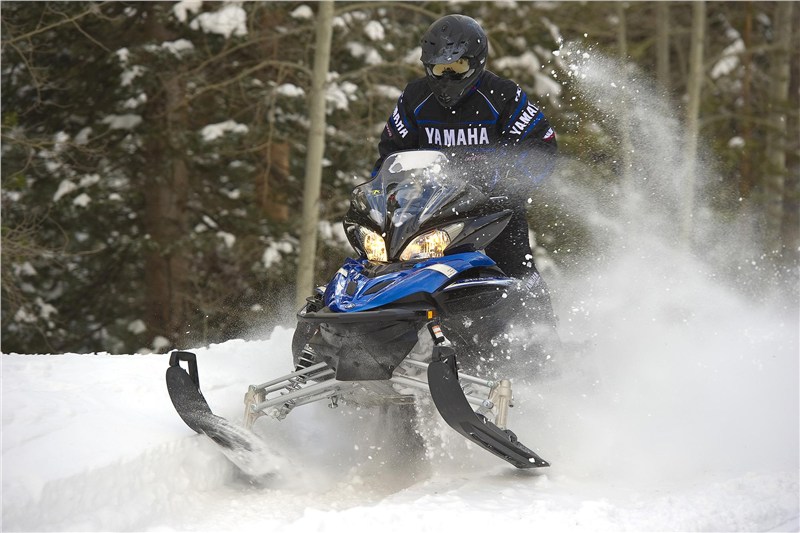

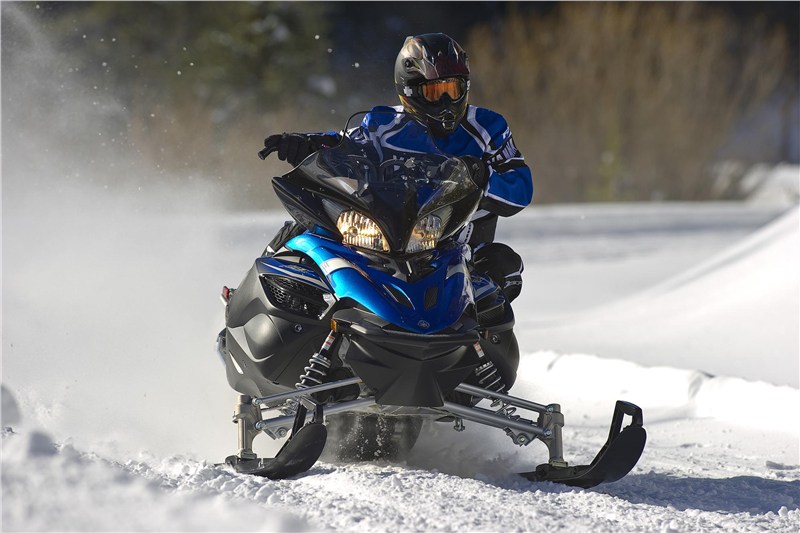

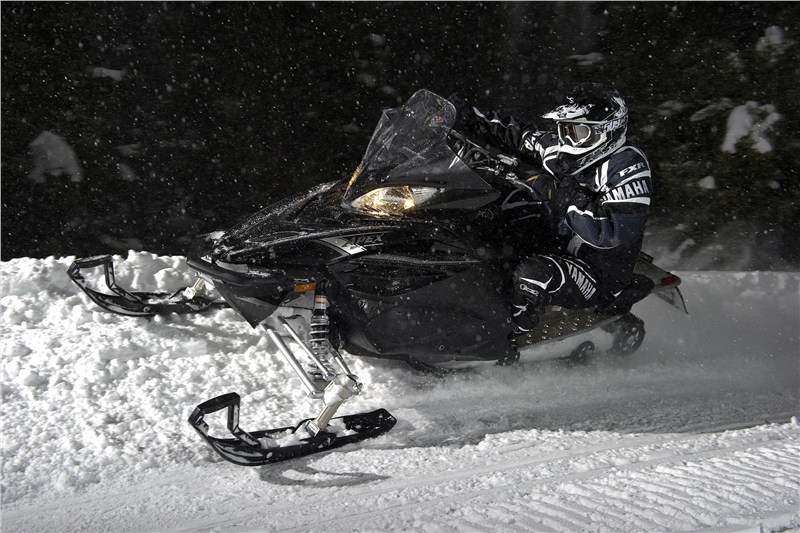

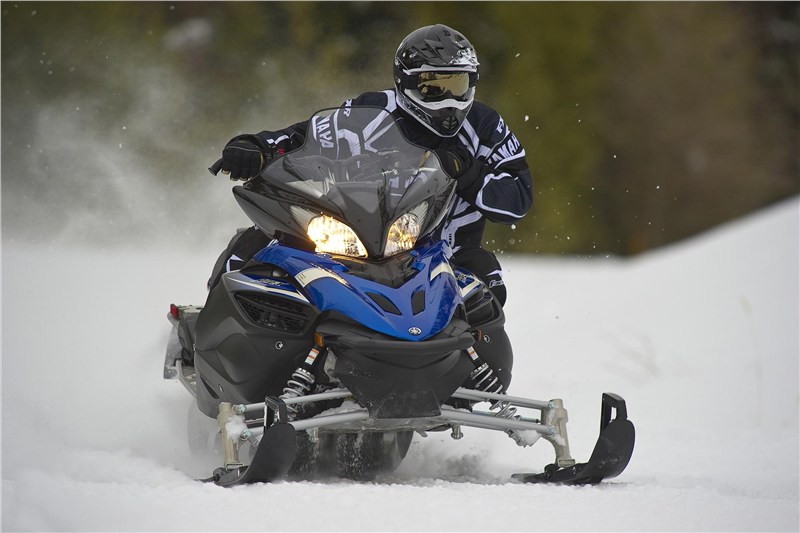

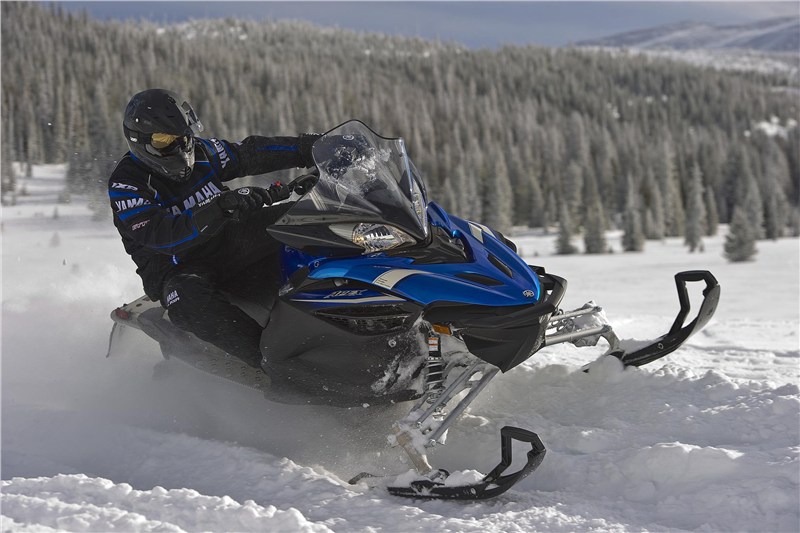

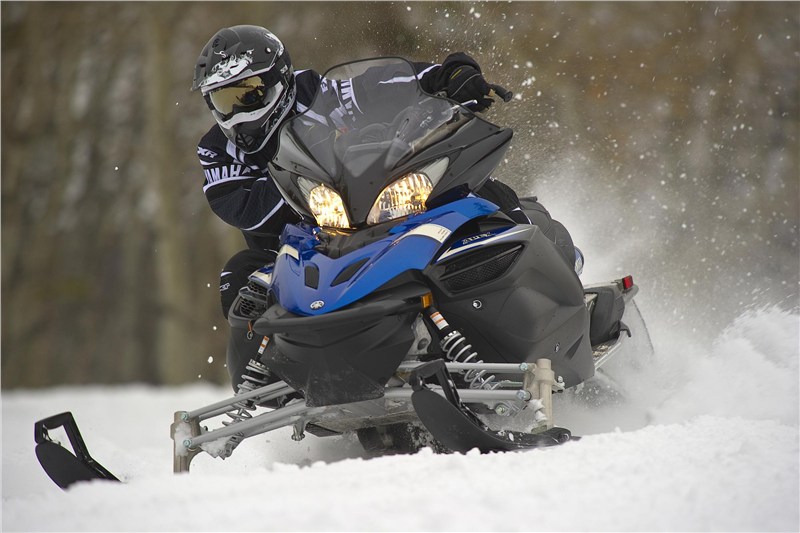

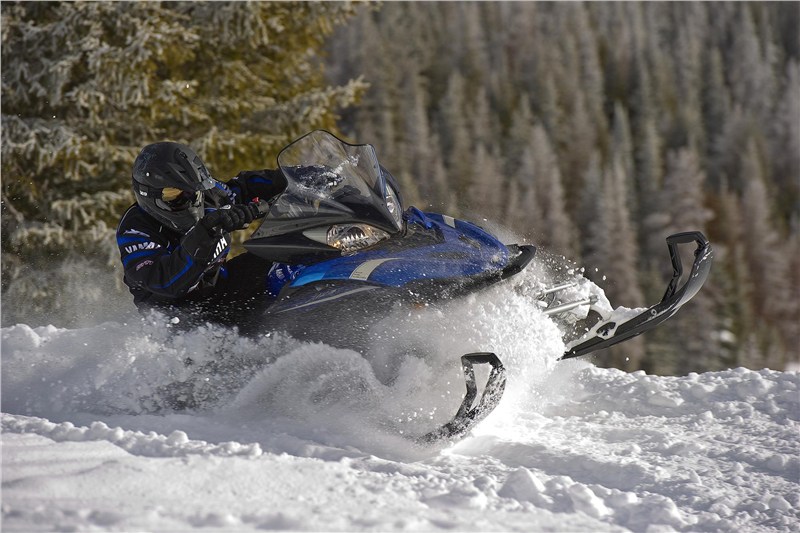

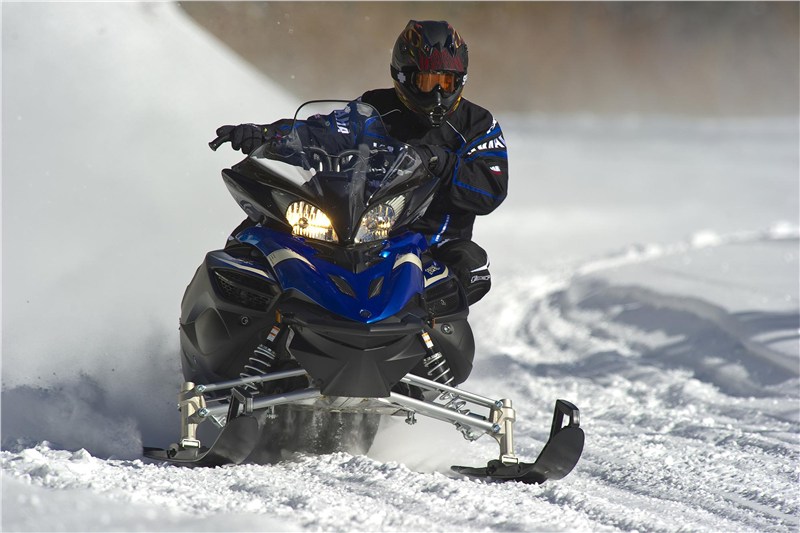

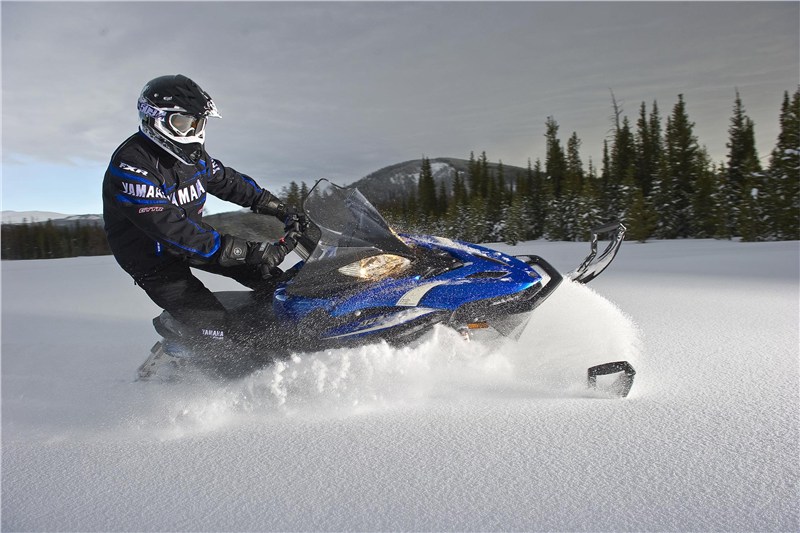

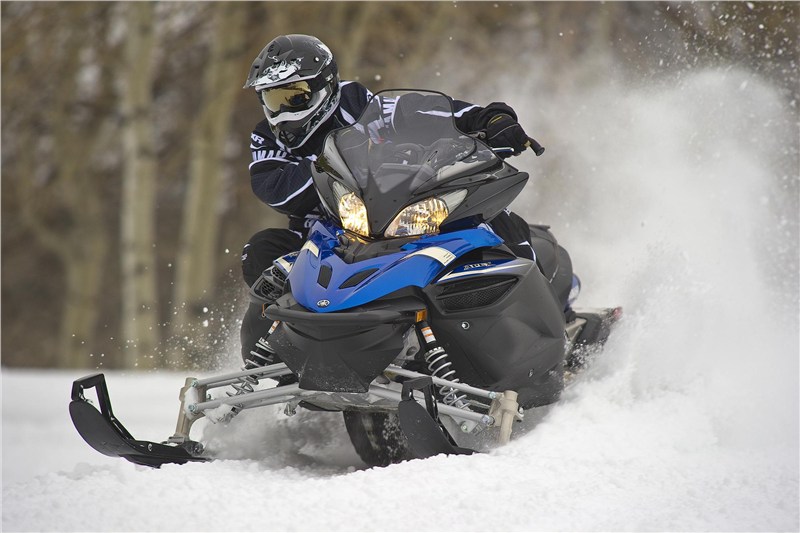

2012 Yamaha APEX XTX

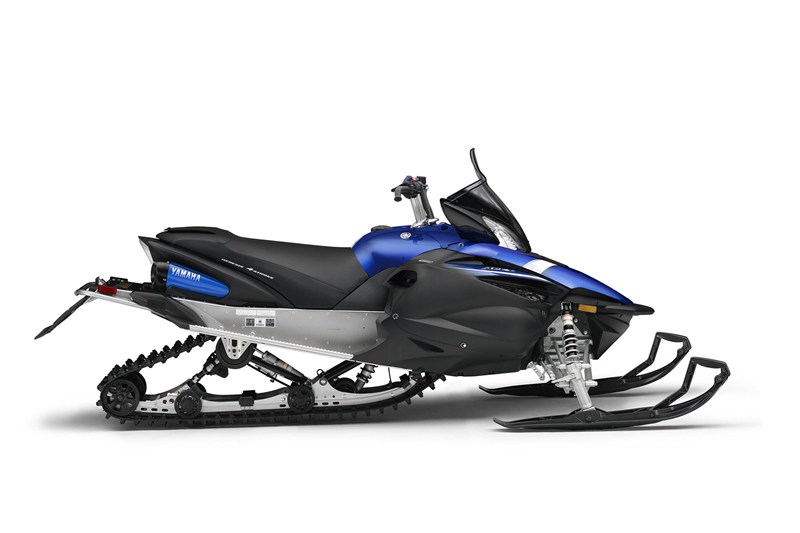

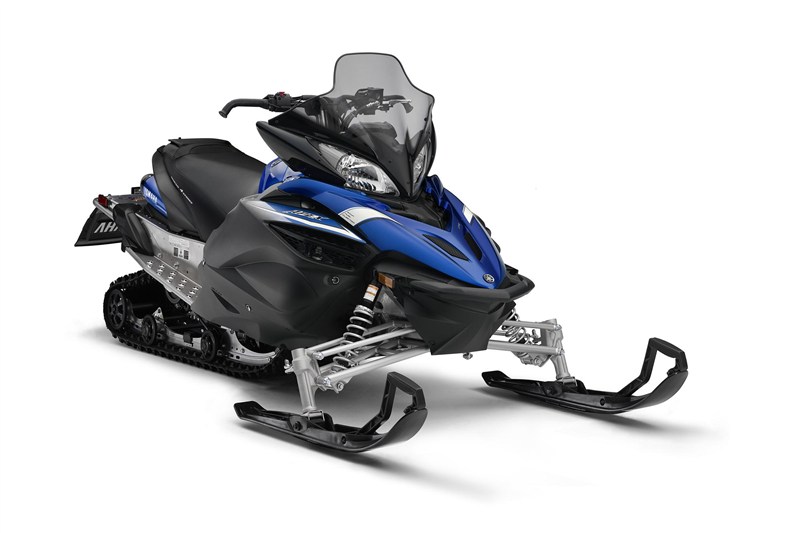

Electric Blue
MSRP: $14,399.00
Manufacturer: Yamaha
Condition: New
Description
- Top Performance 4-cylinder Genesis 4-Stroke engine
The physical casting of the engine remains the same, but the valve timing, intake and exhaust tracts, airbox and exhaust pipes are all recalibrated for optimum midrange torque output as well as an overall top end gain. - Airbox/intake
The intake tracts on the Apex XTX have been lengthened by 11mm, as compared to the previous model. The engine utilizes the pressure waves in the longer intake tubes and in the airbox to boost airflow and maximize high RPM performance. - Injector
The distance between the throttle valve and intake valve has been designed for optimum fuel delivery. In addition, the 4-hole injector on the throttle body creates a spray of finely atomized fuel, with droplets of just tenths of a micron in size. The spray is aimed directly at the intake valve skirt for maximum efficiency and performance. The result? Simply unmatched throttle response. - EXUP and new exhaust pipe
Yamaha-exclusive EXUP valve technology controls the exhaust pressure waves for optimum intake and exhaust efficiency, delivering unmatched overall performance with more midrange torque. Additionally, the exhaust pipes have been enlarged to 38mm from 35mm for added exhaust pressure wave efficiency. - 15 x 144 x 1.25-inch Rip Saw™ track
The Camoplast Rip Saw track is a standard feature on the Apex XTX. It has been widely acclaimed in the industry as the best all-around OEM track for acceleration, cornering bite and everyday trail usage. - Engine Braking Reduction System
The Top Performance Genesis 4-Stroke engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders more of a “coast” feeling.
Specifications
Engine
Type / Displacement / cc
Four-stroke, 998cc
Cylinders
Four
Cooling
Liquid
Bore & Stroke / mm
74.0 X 58.0
Intake Design
3 Valves
Ignition
Digital TCI w/throttle position sensor
Fuel Delivery
39mm fuel injection, liquid heated
Exhaust
2 valves, rear exhaust (Ti) with EXUP
Clutch / Transmission
YVXC, variable ratio, magnesium chaincase & cover, reverse
Disc. Brake Type
4-piston hydraulic aluminum caliper w/lightweight ventilated disc, mechanical parking brake, adjust lever
Chassis
Front Suspension
Independent, double wishbone
Front Shocks
40 mm aluminum HPG
Front Travel / in.
8.5 in
Ski Type
Lightweight plastic, saddleless design
Carbide Ski Runners
Standard
Stabilizer Bar
Standard
Rear Suspension
Dual Shock CK 144
Rear Shocks
Aluminum H.P.G piggyback clicker damping adjuster
Rear Travel / in.
11.7 in
Track Type
Camoplast® Rip Saw™
Dimensions
Overall Length / in.
118.1 in
Overall Height / in.
47.6 in
Track/Width x Length x Height / in.
15 in X 144 in X 1.25 in
Ski Stance (ctr. to ctr.) in.
42.8 in
Fuel Capacity / Gal.
9.2 gal
Fuel Type
Premium Unleaded
Oil Capacity / Qts.
3, Dry Sump
Engine Oil Type
Yamalube 4, 0w-30, Cold Weather Formula
Features
Electric Start
Standard
Reverse
Standard
Hand & Thumb Warmers
Standard, 9 position adjustable, independent control
Windshield Height
Medium
Mirrors
Optional
Seating Capacity
One
Backrest
N/A
Rear Carrier Rack
N/A
Tow Hitch
N/A
Tunnel Protectors
Standard
Headlight Watts, Type
60/55W Halogen X 2
High Beam Indicator
Standard
Oil & Temp Light
Standard
Fuel Gauge Type
Electric (LCD), low fuel warning light
Speedometer
Standard (LCD digital)
Odometer
Standard (large LCD display)
Tripmeter
Standard, dual (large LCD display)
Tachometer
Standard, backlit (LCD)
DC Outlet
Automotive & RCA
Warranty
1 Year (Limited Factory Warranty)
Features
Performance
- Top Performance 4-cylinder Genesis 4-Stroke engine
The physical casting of the engine remains the same, but the valve timing, intake and exhaust tracts, airbox and exhaust pipes are all recalibrated for optimum midrange torque output as well as an overall top end gain. - Airbox/intake
The intake tracts on the Apex XTX have been lengthened by 11mm, as compared to the previous model. The engine utilizes the pressure waves in the longer intake tubes and in the airbox to boost airflow and maximize high RPM performance. - Injector
The distance between the throttle valve and intake valve has been designed for optimum fuel delivery. In addition, the 4-hole injector on the throttle body creates a spray of finely atomized fuel, with droplets of just tenths of a micron in size. The spray is aimed directly at the intake valve skirt for maximum efficiency and performance. The result? Simply unmatched throttle response. - EXUP and new exhaust pipe
Yamaha-exclusive EXUP valve technology controls the exhaust pressure waves for optimum intake and exhaust efficiency, delivering unmatched overall performance with more midrange torque. Additionally, the exhaust pipes have been enlarged to 38mm from 35mm for added exhaust pressure wave efficiency. - 15 x 144 x 1.25-inch Rip Saw™ track
The Camoplast Rip Saw track is a standard feature on the Apex XTX. It has been widely acclaimed in the industry as the best all-around OEM track for acceleration, cornering bite and everyday trail usage. - Engine Braking Reduction System
The Top Performance Genesis 4-Stroke engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders more of a “coast” feeling.
Handling
- Electric Power Steering
Industry-first Electric Power Steering system is velocity sensitive, delivering maximum assist up to trail speed, and gradually tapering off from there. You’ll love the EPS system because it helps isolate the rider from uncomfortable trail feedback, eases the effort required to move the bars, and provides excellent handling and predictability. - Trail ski
The skis have great cornering agility and work in tandem with the EPS to significantly reduce hunting and darting. - Front suspension geometry
The 15mm trail offset on the ski mount helps minimize inside ski lift due to centrifugal force during turns. And, by optimizing the amount of resistance from the snow surface that’s applied to the rear end of the ski, including forces from bumps and ruts, this offset helps the Apex XTX achieve its amazingly smooth handling, including its excellent straight line performance. - Rigid steering gate
The steering gate has a rigid single-piece construction designed to handle the additional forces exerted by the EPS system. The gate is made using Yamaha’s exclusive lightweight, yet rugged CF diecast manufacturing process. - Hooked handlebars
To match the tall and forward position, a single-piece, dual-hooked handlebar is standard fare on the Apex XTX. The hooks have the same grip material as the main bar section, for consistent control, regardless of hand position on the grip. - Short exhaust system
The Apex XTX has a very short, compact exhaust layout. This helps keep the sleds mass centralized, which results in excellent handling. Another benefit of the short exhaust design is that the tunnel no longer needs to have a cast reinforcement piece to hold the muffler.
Comfort
- Dual Shock CK 144
The Dual Shock CK 144 rear suspension is the culmination of many years of development and testing. In order to be the ultimate top performance cross country snowmobile, the Apex XTX needed to have cornering like a 121-inch trail sled, bump bridging like a 136-inch sled and the flotation of a 144-inch sled. The solution is the aggressive 6-degree rear tip-up on the rails, which gives the sled the footprint of a short track model on hardpack and the footprint of a long track model in fresh snow. The coupled design delivers excellent comfort and bump absorption over a wide variety of trail conditions. - Seat
The Apex XTX’s seat raises the rider’s hips approximately 2 inches for all-day trail riding comfort. The seat has a roomy storage trunk at the rear. It’s large enough to hold a couple water bottles, spare gloves, a fleece shirt….and an Xtremely Practical tow strap! - HPG front shocks
The 40mm High Pressure Gas (HPG) shocks on the Apex XTX’s third generation front suspension geometry deliver consistent performance with excellent fade resistance. - Clicker rear shock
The Dual Shock CK 144 rear suspension is fitted with a 40mm HPG shock with a remote reservoir and compression clicker on the rear arm and an aluminum-body HPG shock on the front arm. - Concentrated hand warmers
These hand warmers have a concentrated element design, which focuses the heat in the middle of the grip material. The result is a warm grip for your hand’s most comfortable riding position. In addition, an insulator is placed between the heating element and handlebar to retain heat longer and more efficiently than previous designs. - Standard electric start
Yamaha’s electric starter system allows consumers to fire up their Apex XTX with the turn of a key. There is no pulling on a nylon cord to get this high-tech engine growling! Electric start is a standard feature on all of Yamaha’s 4-stroke machines. - Windshield
The windshield and side deflector design, developed using computer modeling, provides maximum wind protection with minimum aerodynamic drag and swirl-in. - Standard mechanical reverse
The Apex XTX’s simple reverse system allows riders to back out of tight spaces hassle-free. It’s engaged with the lever located on the right shroud. Just pull out the lever and slide it to the right for quick and easy use. - Dual DC outlets
The Apex XTX offers two styles of DC outlets. It comes with a standard automotive-style outlet for cell phones, GPS or other electronics accessories. And it also comes standard with an RCA-style plug near the left hand grip to power up heated helmet visors or other small-plug accessories. - New graphic packages

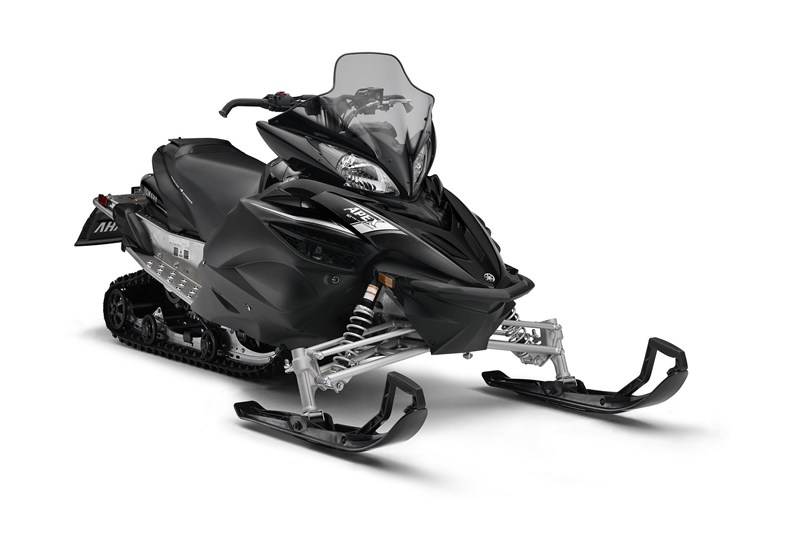

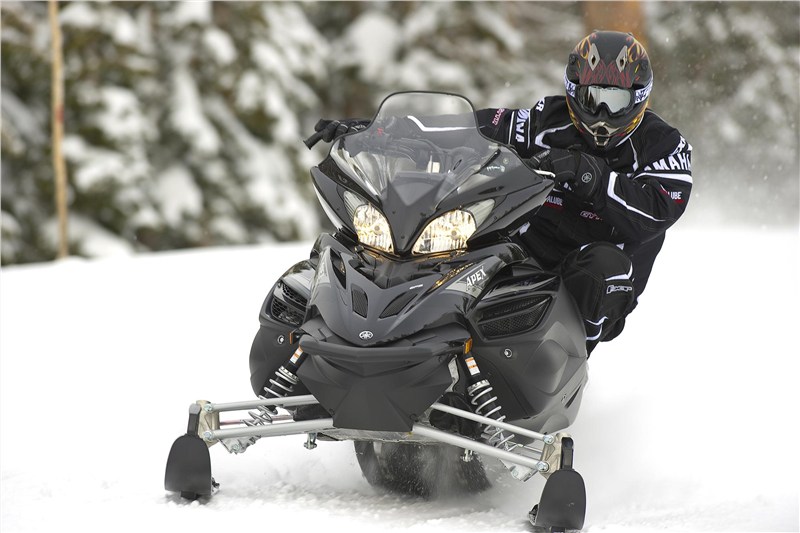

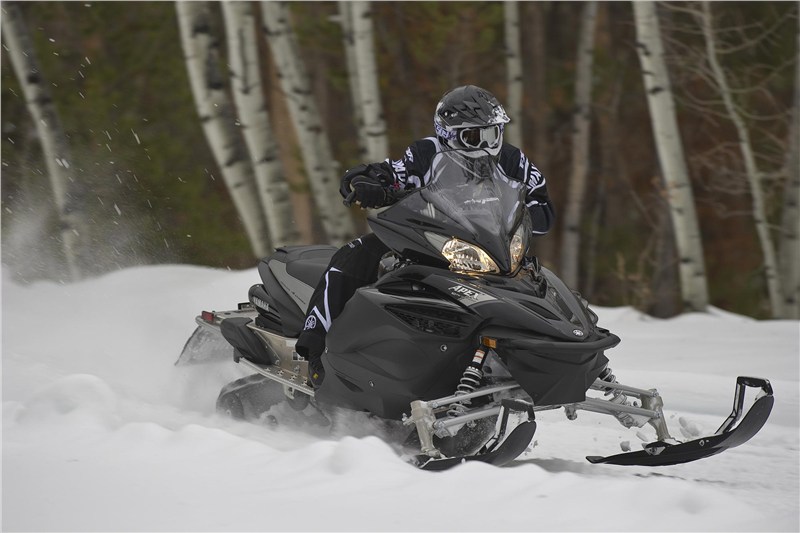

The Apex XTX comes in two graphic packages; Yamaha black as well as Electric blue/white. These awesome designs produce one of the best looking sleds on the snow.
