- 2013 Yamaha PHAZER MTX

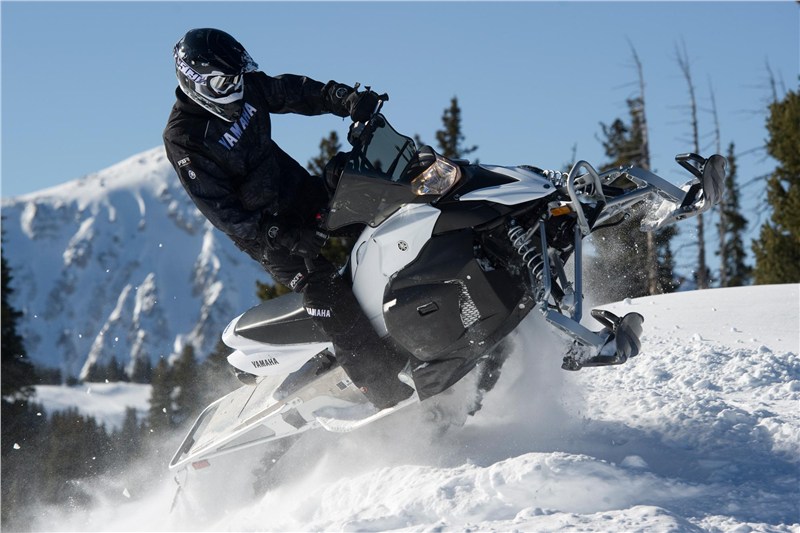

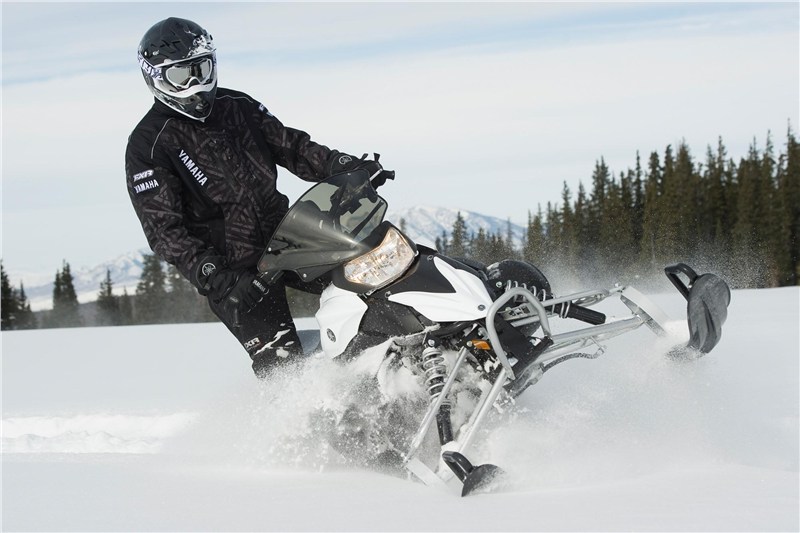

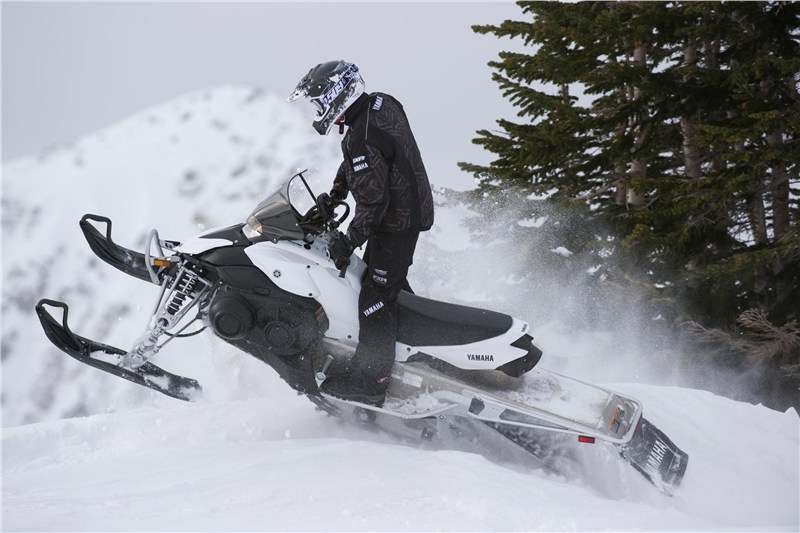

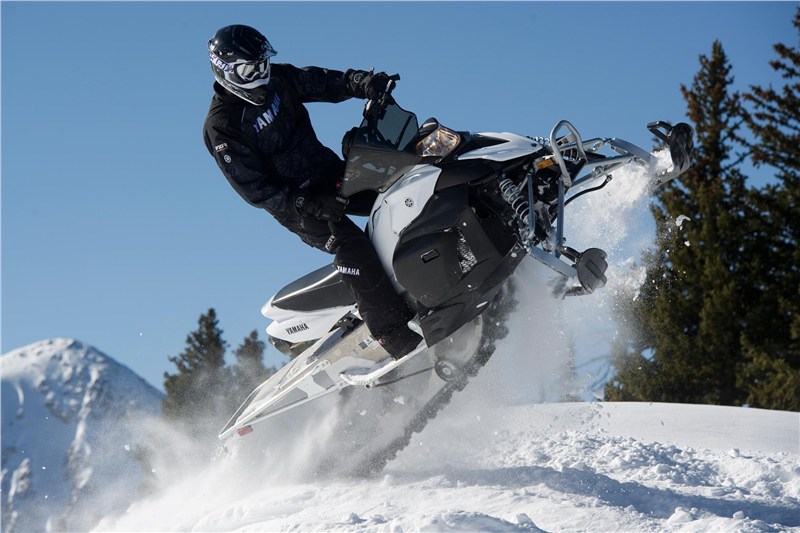

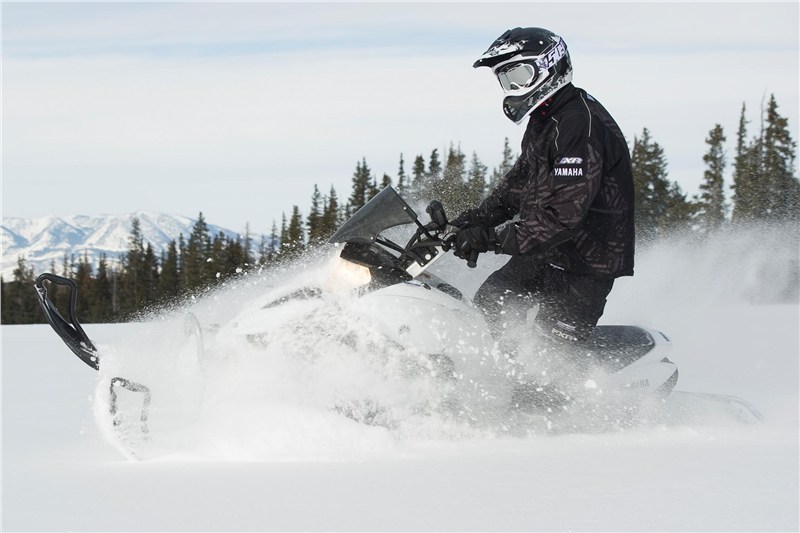

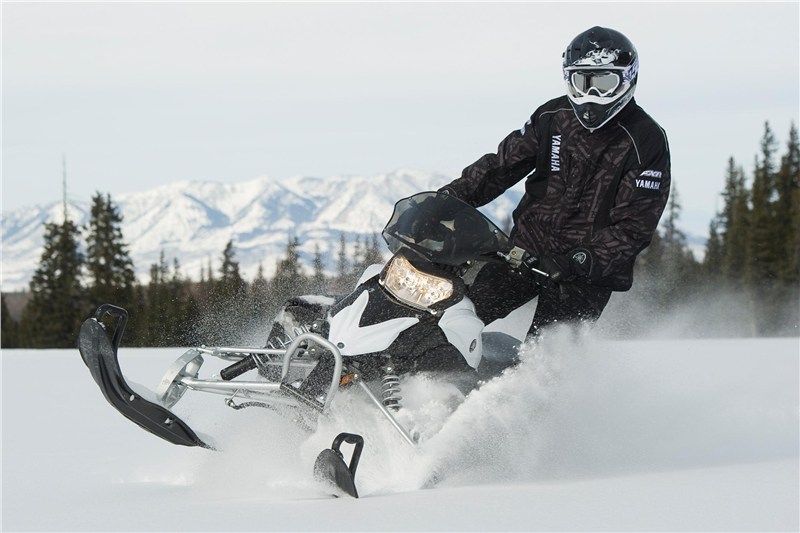

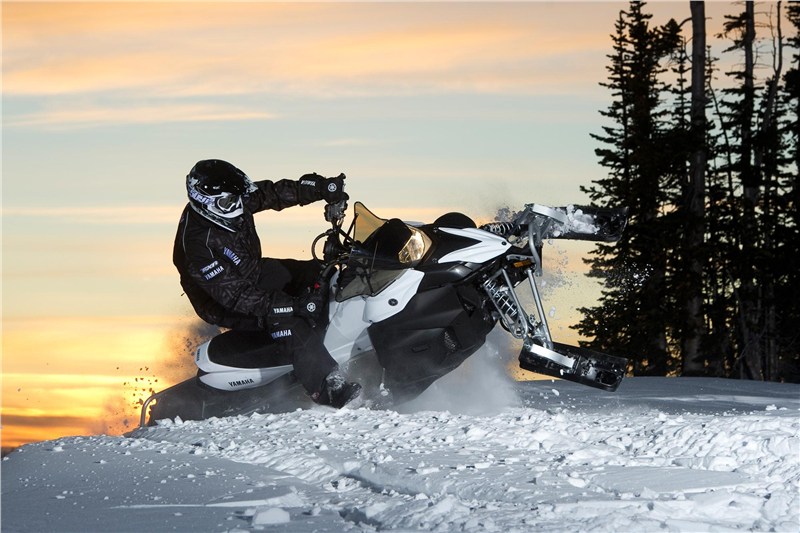

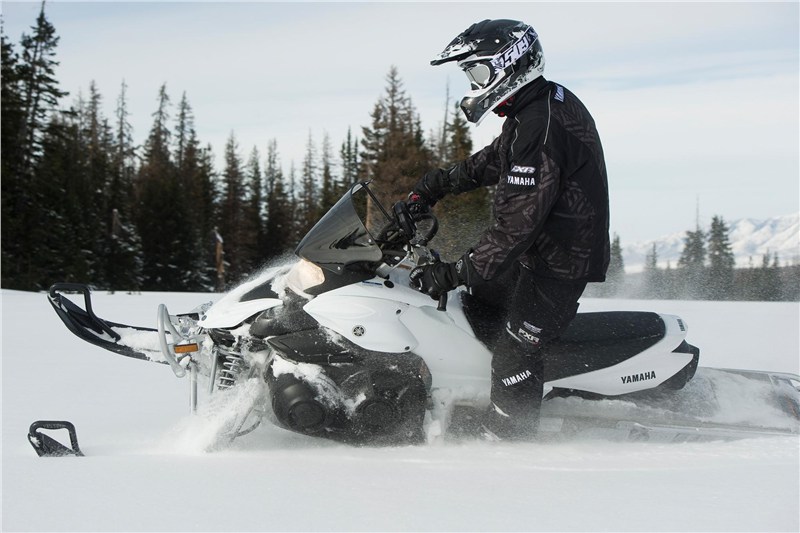

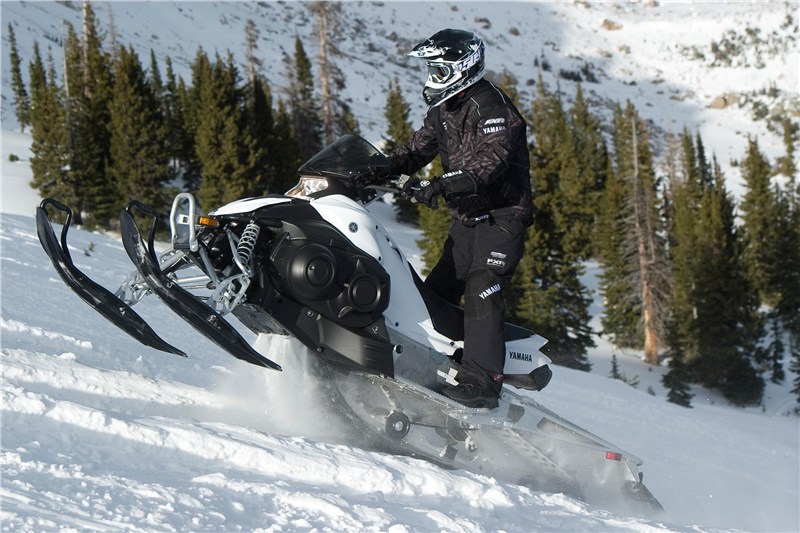

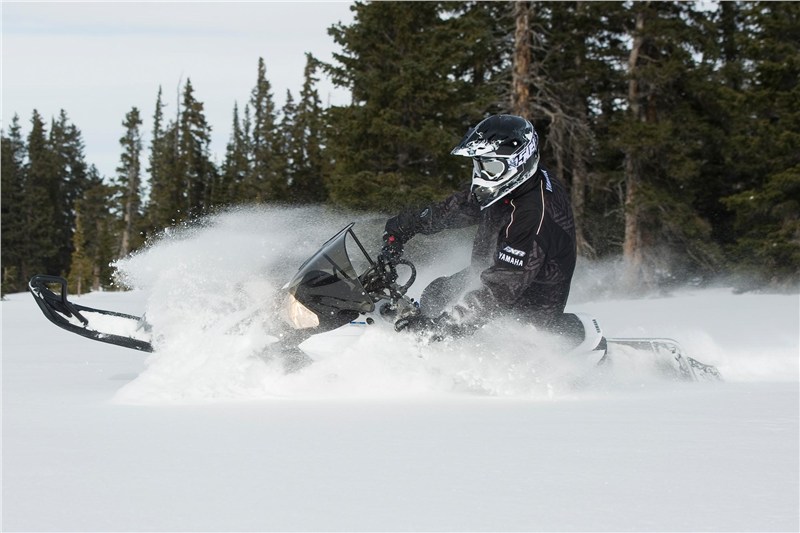

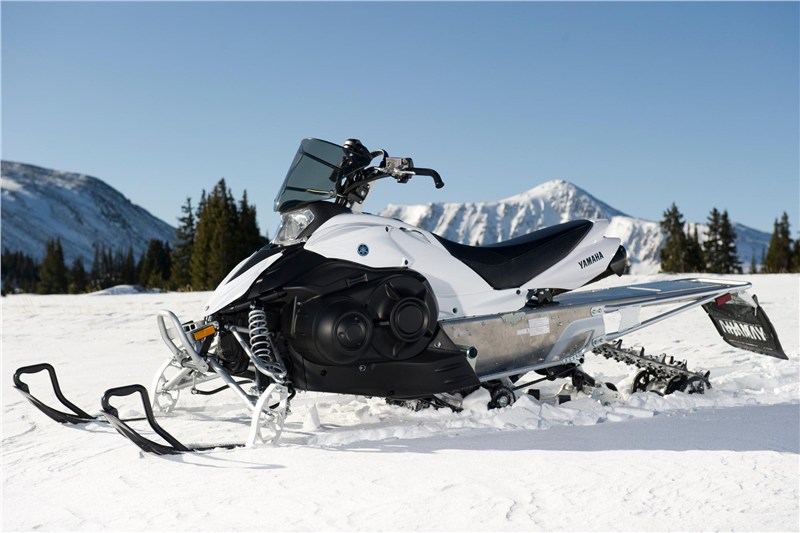

2013 Yamaha PHAZER MTX
White/Black
MSRP: $8,599.00
Manufacturer: Yamaha
Condition: New
Description
- Sport Performance 4-stroke engine
Lightweight, dependable and fun, the Sport Performance engine’s high tech design puts down sport horsepower-class performance on the trail and off. Powering in the distinctive Phazer family of sleds, this 2-cylinder engine is quick-revving and very torquey for sporty acceleration. The advanced fuel injection system automatically keeps it running at maximum output and fuel efficiency for the conditions. - Advanced fuel injection
The Sport Performance engine uses an advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system. - Lightweight, counterbalanced crankshaft
The Sport Performance engine’s crankshaft is designed to be light weight, responsive and durable. The lightweight, counterbalanced crankshaft delivers super-crisp throttle response and quick acceleration. It also helps mitigate the vibration inherent in a 2-cylinder engine. - Lightweight, rear-exiting exhaust
The exhaust from the Sport Performance engine is routed out the rear of the sled, similar to the other 4-stroke engine packages. The rear exiting exhaust design serves three purposes. First, it keeps the exhaust heat out of the engine bay to allow a super-compact design. Second, it allows the engine to breathe more efficiently through a cooled exhaust pipe. Finally, it helps to balance the overall sled package, giving the Phazer MTX its amazingly nimble handling. - 14 x 144 x 2-inch Camoplast® Maverick™ track
The Phazer MTX® uses a narrow 14-inch wide Camoplast® Maverick™ track with 2-inch lugs. The track design is lightweight for great deep snow performance and handling. It also allows the tunnel to be narrower to improve the sled’s ergonomics. - Radiator and front extrusion
In order to generate consistently-strong engine performance, all Sport Performance engine sleds feature a small radiator on the right hand side of the engine cab and a front extrusion. The use of a small radiator improves the sled’s cooling system function, which means greater engine durability. It also enhances the sled’s handling by relocating the mass of a rear heat exchanger up to the central portion of the sled. - Oil Pressure Sensing System
The Phazer MTX is fitted with an oil pressure sensing system. If the oil pressure drops while riding, the ignition and fuel supply is controlled to limit the engine’s rpm and reduce the load on the engine. If necessary the system will stop the engine.
Specifications
Engine
Type / Displacement / cc
Four-stroke, 499cc
Cylinders
Two
Cooling
Liquid
Bore & Stroke / mm
77 X 53.6
Intake Design
3 Valves
Ignition
Digital T.C.I. w/throttle position sensor
Fuel Delivery
2 x 43mm fuel injection
Exhaust
2 valves, rear exhaust
Clutch / Transmission
YVRC, variable ratio
Disc. Brake Type
2-piston hydraulic w/ lightweight ventilated disc
Chassis
Front Suspension
Independent, double wishbone
Front Shocks
Gas cell
Front Travel / in.
8.7 in
Ski Type
Wide saddleless plastic mountain ski
Carbide Ski Runners
Standard
Stabilizer Bar
Standard
Rear Suspension
ProMountain® 144
Rear Shocks
36mm HPG / 36mm HPG
Rear Travel / in.
14.3 in
Track Type
Camoplast® Maverick™
Dimensions
Overall Length / in.
125.7 in
Overall Height / in.
45.8 in
Track/Width x Length x Height / in.
14 in x 144 in x 2.0 in
Ski Stance (ctr. to ctr.) in.
38.6 in
Fuel Capacity / Gal.
7.0 gal
Fuel Type
Regular Unleaded
Oil Capacity / Qts.
3, dry sump
Engine Oil Type
Yamalube 4, 0w-30, Cold Weather Formula
Features
Electric Start
Standard
Reverse
Standard
Hand & Thumb Warmers
Standard
Windshield Height
Low
Mirrors
Optional
Seating Capacity
One
Backrest
N/A
Rear Carrier Rack
N/A
Tow Hitch
N/A
Tunnel Protectors
Optional
Headlight Watts, Type
60/55W Halogen x 2
High Beam Indicator
Standard
Oil & Temp Light
Standard
Fuel Gauge Type
Electric (LCD), low fuel warning light
Speedometer
Standard (LCD, digital)
Odometer
Standard (LCD display)
Tripmeter
Standard, dual (large LCD display)
Tachometer
Standard (LCD display)
DC Outlet
Optional
Warranty
1 Year (Limited Factory Warranty)
Features
Performance
- Sport Performance 4-stroke engine
Lightweight, dependable and fun, the Sport Performance engine’s high tech design puts down sport horsepower-class performance on the trail and off. Powering in the distinctive Phazer family of sleds, this 2-cylinder engine is quick-revving and very torquey for sporty acceleration. The advanced fuel injection system automatically keeps it running at maximum output and fuel efficiency for the conditions. - Advanced fuel injection
The Sport Performance engine uses an advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system. - Lightweight, counterbalanced crankshaft
The Sport Performance engine’s crankshaft is designed to be light weight, responsive and durable. The lightweight, counterbalanced crankshaft delivers super-crisp throttle response and quick acceleration. It also helps mitigate the vibration inherent in a 2-cylinder engine. - Lightweight, rear-exiting exhaust
The exhaust from the Sport Performance engine is routed out the rear of the sled, similar to the other 4-stroke engine packages. The rear exiting exhaust design serves three purposes. First, it keeps the exhaust heat out of the engine bay to allow a super-compact design. Second, it allows the engine to breathe more efficiently through a cooled exhaust pipe. Finally, it helps to balance the overall sled package, giving the Phazer MTX its amazingly nimble handling. - 14 x 144 x 2-inch Camoplast® Maverick™ track
The Phazer MTX® uses a narrow 14-inch wide Camoplast® Maverick™ track with 2-inch lugs. The track design is lightweight for great deep snow performance and handling. It also allows the tunnel to be narrower to improve the sled’s ergonomics. - Radiator and front extrusion
In order to generate consistently-strong engine performance, all Sport Performance engine sleds feature a small radiator on the right hand side of the engine cab and a front extrusion. The use of a small radiator improves the sled’s cooling system function, which means greater engine durability. It also enhances the sled’s handling by relocating the mass of a rear heat exchanger up to the central portion of the sled. - Oil Pressure Sensing System
The Phazer MTX is fitted with an oil pressure sensing system. If the oil pressure drops while riding, the ignition and fuel supply is controlled to limit the engine’s rpm and reduce the load on the engine. If necessary the system will stop the engine.
Handling
- Sport rider-forward position
The Phazer MTX takes many of its cues from other off-road motorsports, including its sport rider-forward positioning. It has a tall, narrow seat and tall, forward handlebars like the popular YZ® dirtbike. It puts the rider in a pure sport posture, without being overly aggressive. The sport rider-forward position also locates the mass of the rider right at the balance point for the sled, aiding its incredible handling. - Adjustable-width double wishbone front suspension
The FX Chassis uses a specifically engineered front suspension package to accommodate its unique weight distribution and handling needs. Because of the Phazer MTX’s naked front end design, the A-arms need to be longer than even the second generation design found on the Deltabox™ II chassis models. The Phazer MTX also features lightweight extruded aluminum spindles. - Wide handlebars with mountain strap
To match the tall and forward position, a single-piece unhooked handlebar with the center mountain strap is standard on the Phazer MTX. The grips have 10-position adjustable warmers. - Integrated chaincase with magnesium cover
The FX Chassis has the chaincase cast right into the frame member, and has a magnesium cover plate that forms the seal to keep the oil in. This trick piece of technology is a highlight of the goal to simplify the sled and minimize weight. Riders will appreciate the reduced overall weight on the Phazer MTX and its amazingly nimble handling as a result. - CF diecast construction
Yamaha’s Controlled Flow casting technique is used for many of the structural pieces on the chassis. The CF process draws the molten metal into the mold under a vacuum, reducing the formation of air bubbles in the material. As a result, pieces can be made much thinner and still deliver the strength characteristics of a conventionally-cast, thicker piece.
Comfort
- Rear tunnel closure
The rear hole on the Phazer MTX tunnel is closed off to reduce the snow and ice buildup on the tunnel and runningboards. The front manifold hole will remain to cool the exhaust pipe. A heat shield will be installed to protect the seat and rear tail plastic. - ProMountain® 144 rear suspension
The Phazer MTX uses a second generation ProMountain rear suspension. The FX Chassis uses a narrow track and the skidframe is accordingly narrower. The suspension offers a number of unique features, in addition to the narrowness. The carrier wheels on the rear upper cross shaft are oversized to improve their efficiency and reduce friction. The rear mount is built with a cantilever system to allow the track tension to remain consistent through the compression travel. The rear arm has coupling blocks. The front lower shock mount is on a cam to increase the shock rate through its travel. - New wheels with removable bearings
New replaceable bearing wheels makes maintenance easy and cheap, while the 6 spoke design adds to the visual appeal of the already super cool looking Phazer MTX. This new design will be implemented on the rear large wheels only. - Tall, narrow YZ®-style seat
The tall, narrow seat is an integral element in the sport rider-forward position on the Phazer MTX. It helps put the rider in the best possible location for aggressive or casual riding. The narrowness of the seat enhances the Phazer MTX’s overall lightweight feel on the trail. - Wide runningboards with traction
The Phazer MTX is all about fun and handling. As a result, the runningboards are nice and wide and loaded with traction. Riders will be able to put their feet anywhere on the runningboards and have confidence in their traction. This allows the rider to move around and really enjoy the full fun of a lightweight sled. - Standard electric start and push-button Electric Shift reverse
Yamaha’s electric starter system allows consumers to fire up their Phazer MTX with a turn of the key. The engine’s decompression system lightens the load required to turn the engine over, allowing a small, light battery to be used. Yamaha’s Electric Shift reverse system lets users shift the sled into, and out of, reverse with the touch of a button on the digital gauge. - Digital gauge
The digital gauge displays key information at a glance. Vehicle speed is displayed on a large LCD readout. In addition, the rider can select tachometer, odometer or tripmeter data to appear on the secondary readout. The gauge also displays system warning lights, fuel level, and warmer intensity. The right hand side of the gauge has the push button for the Electric Shift reverse system. - Concentrated hand warmers
These hand warmers have a concentrated element design, which focuses the heat in the middle of the grip material. The result is a warm grip for your hand’s most comfortable riding position. In addition, an insulator is placed between the heating element and handlebar to retain heat longer and more efficiently than previous designs. - New graphics package
The Phazer MTX comes in one graphics package; white/black. This awesome design produces one of the best looking sleds on the snow.
