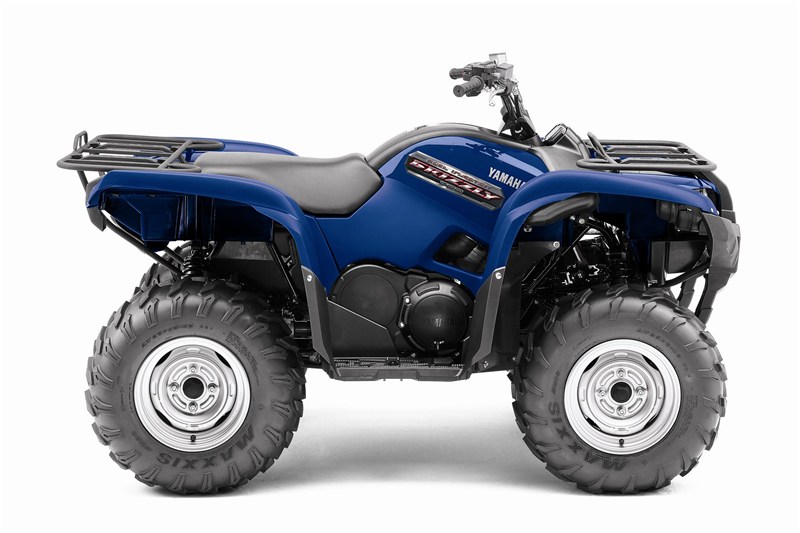

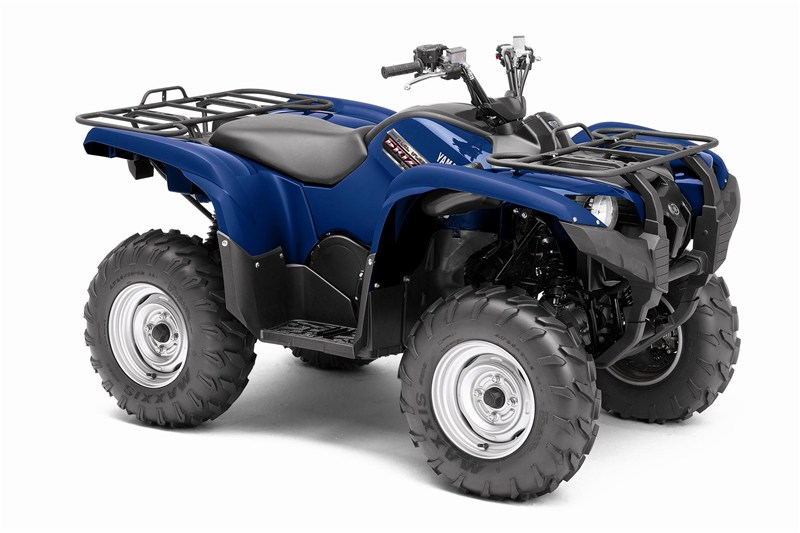

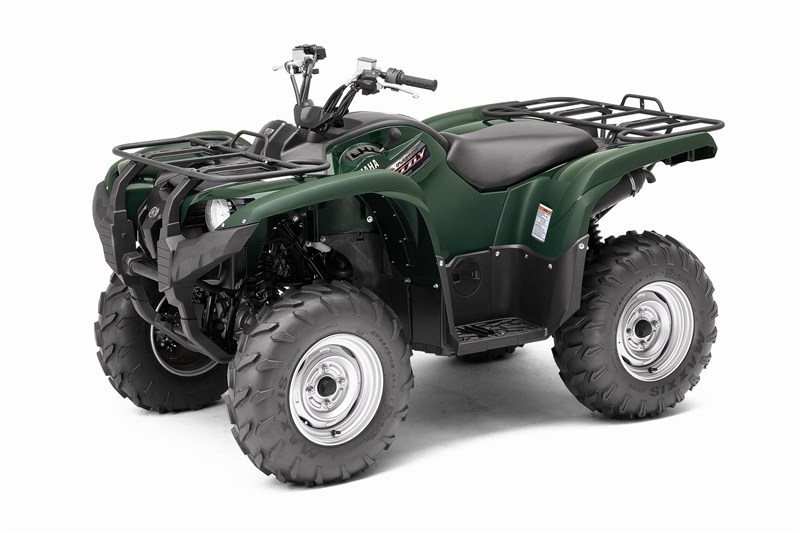

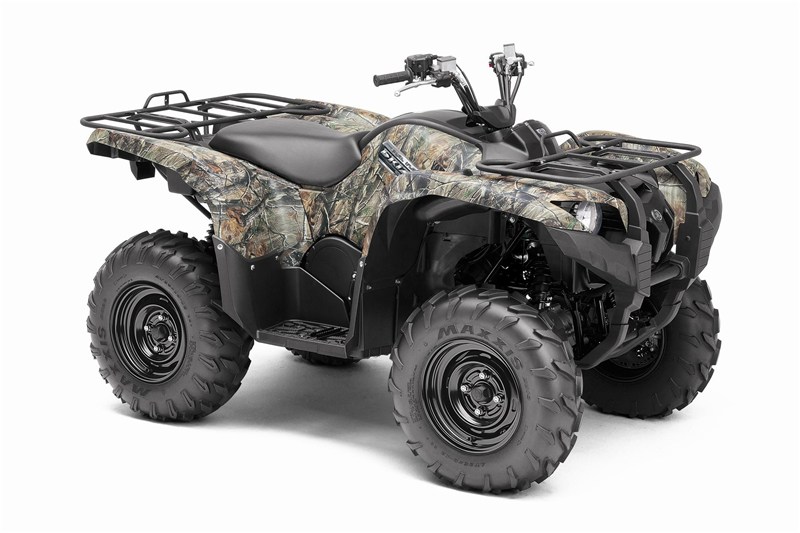

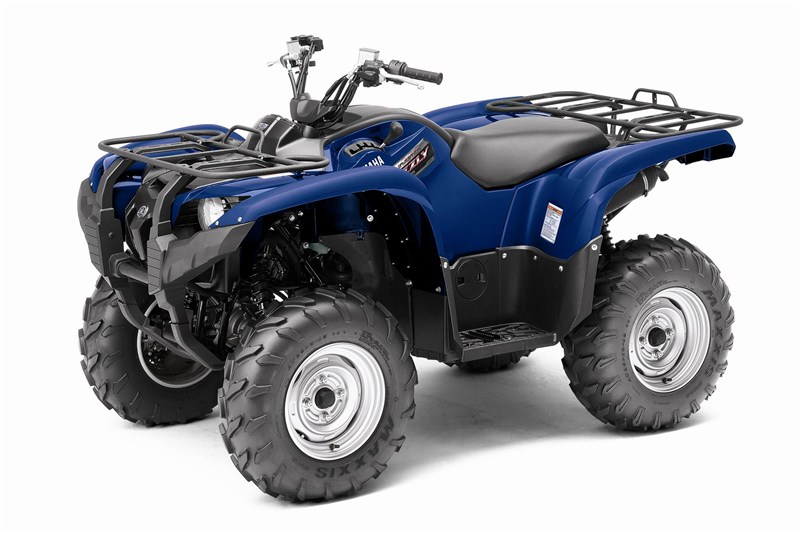

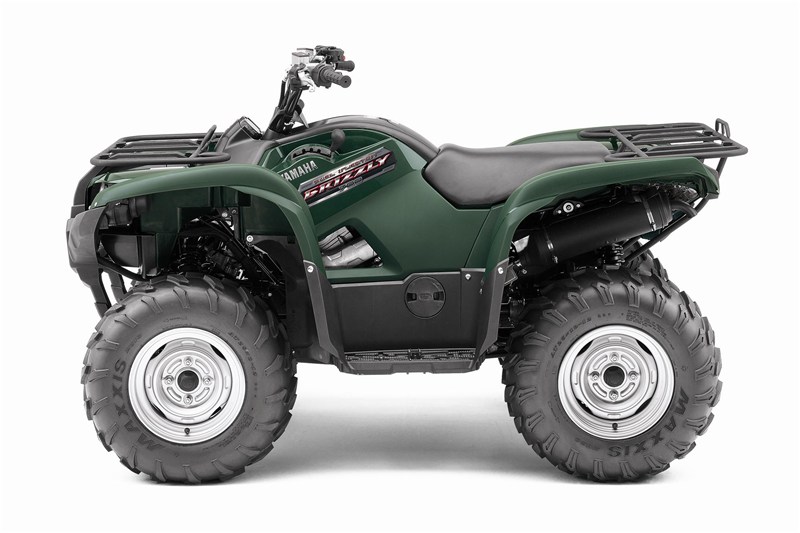

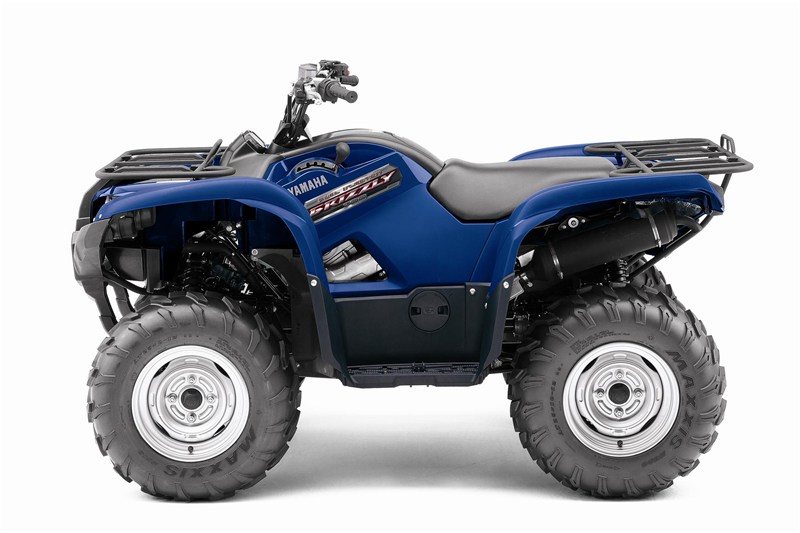

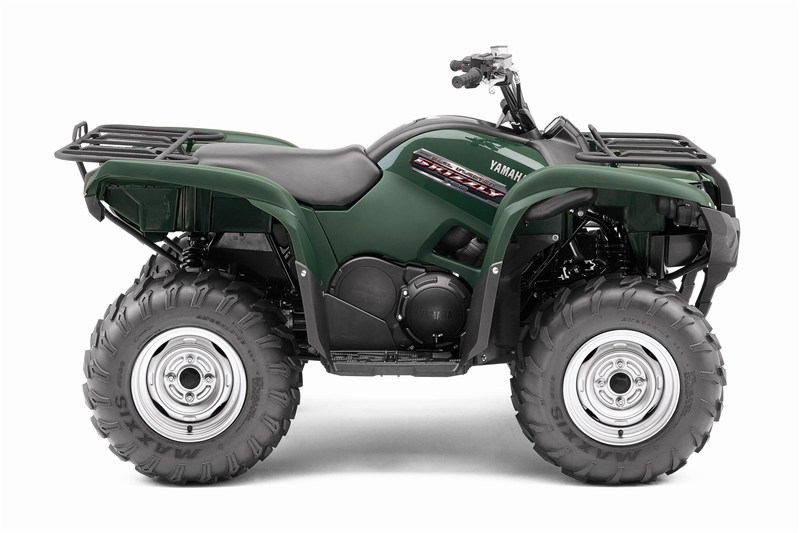

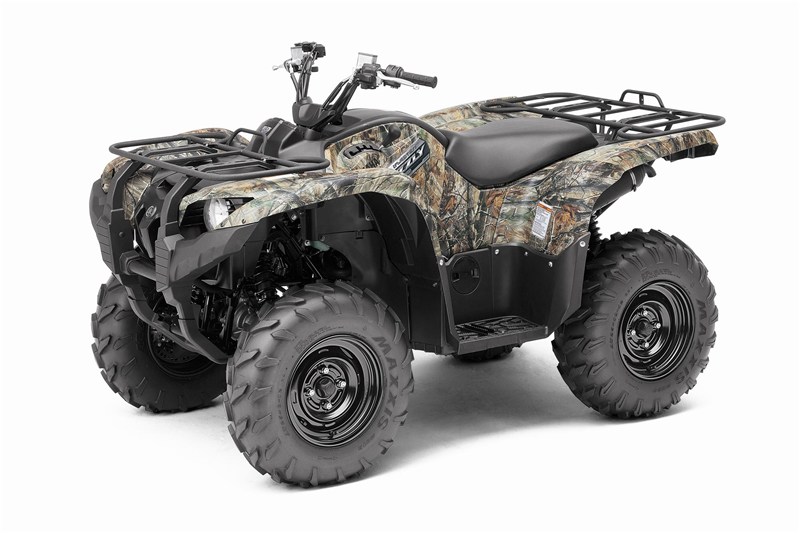

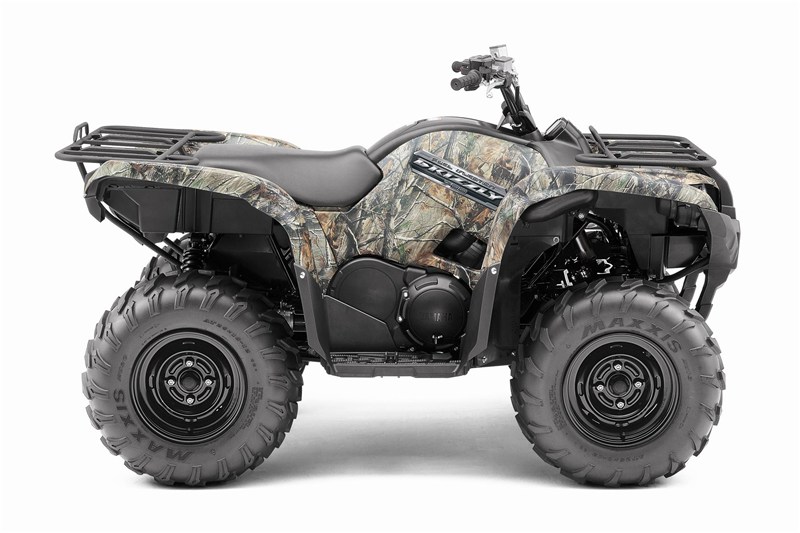

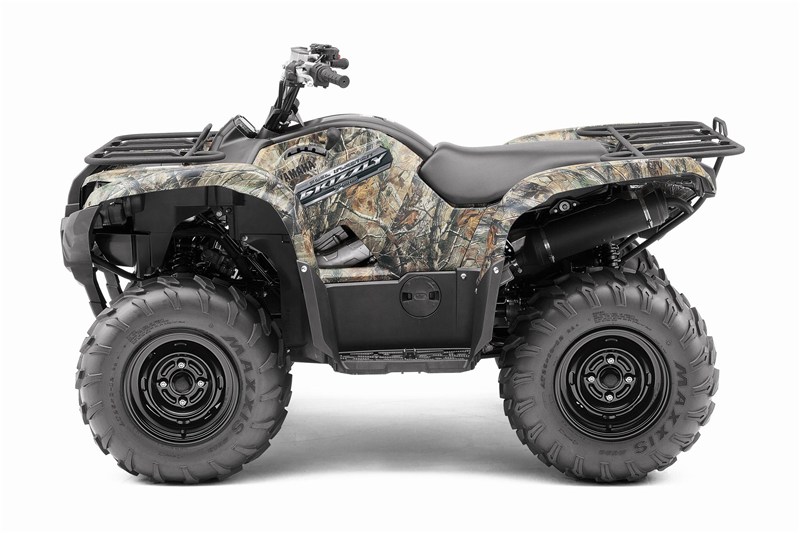

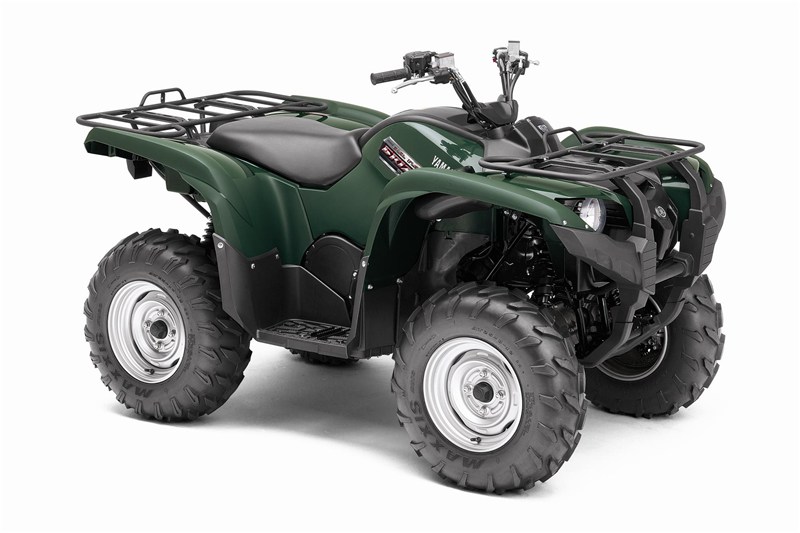

2012 Yamaha GRIZZLY 700 FI AUTO. 4X4

2012 Yamaha GRIZZLY 700 FI AUTO. 4X4
Steel Blu
MSRP: $8,899.00
Manufacturer: Yamaha
Condition: New

Description

  • This most powerful Grizzly ever: 686cc liquid-cooled, four-stroke engine and light weight has the best power-to-weight ratio of any Yamaha utility model.
  • Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
  • Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode.
  • Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD—all with the simple push of a button.
  • Fully independent long-travel four-wheel suspension with WideArc™ A-arms up front and five-way preload-adjustable shocks provides maximum ground clearance for unparalleled comfort over rough terrain.
  • Advanced digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
  • The Grizzly 700 boasts the lightest weight in its class at 648 pounds wet weight.

Specifications

Engine

Type
686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke
102.0mm x 84.0mm
Compression Ratio
9.2:1
Fuel Delivery
Yamaha Fuel Injection (YFI), 44mm
Ignition
32-Bit ECU
Starting System
Electric
Transmission
Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train
Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive


Chassis

Suspension / Front
Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension / Rear
Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
AT25 x 8-12
Tires / Rear
AT25 x 10-12


Dimensions

L x W x H
81.3 x 46.5 x 48.8 in
Seat Height
35.6 in
Wheelbase
49.2 in
Turning Radius
126 in
Ground Clearance
10.8 in
Fuel Capacity
5.3 gal
Wet Weight
648 lb
Rack Capacity
99 lb Fr./187 lb Rr.
Towing Capacity
1322 lb


Other

Instrumentation
Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge, gear position, and EFI function
Lighting
Dual 35W Halogen multireflector headlights & 21W/5W brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

New for 2012:

  • New oil access cover allows easy access to check oil level.
  • Fenders have a textured finish that resist scratching and scuffing.
  • Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
  • Rugged Maxxis® tires get the Grizzly moving over the gnarliest terrain.

Engine:

  • Raptor®-based four-valve combustion chamber design produces a potent combination of low-rev torque, instant throttle response and high horsepower.
  • Gear-driven crankshaft balancer shaft and rubber-damper engine mounts reduce vibration.
  • Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
  • Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
  • Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition.
  • Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
  • Straight driveshaft layout to the front differential eliminates U-joints for reduced friction, noise, vibration, and maintenance.
  • Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
  • High-capacity aluminum radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
  • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
  • Five-position shift lever with H, L, N, R and P gates provides positive Ultramatic transmission operation.
  • Override button allows engine to make maximum rpm in full Diff. Lock mode.
  • Sealed drive case keeps out water and debris to help increase durability.

Chassis/Suspension:

  • WideArc™ front suspension A-arms provide outstanding ground clearance.
  • Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
  • Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power under all sorts of nasty conditions.
  • 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter waterproof storage compartment under there, too.
  • 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
  • 25x8-12 front and 25x10-12 rear Maxxis® tires provide responsive steering and handling along with excellent comfort.
  • Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.

Additional Features:

  • LCD instrument display contains fuel injection, as well as bar-type fuel gauge, speedometer, odometer, trip meter, clock and Diff. Lock indicator.
  • Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
  • Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
  • Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
  • Dual 35-watt multireflector halogen bulb headlights with high/ low beams light up the night.
  • Assembled in Newnan, GA, U.S.A.
