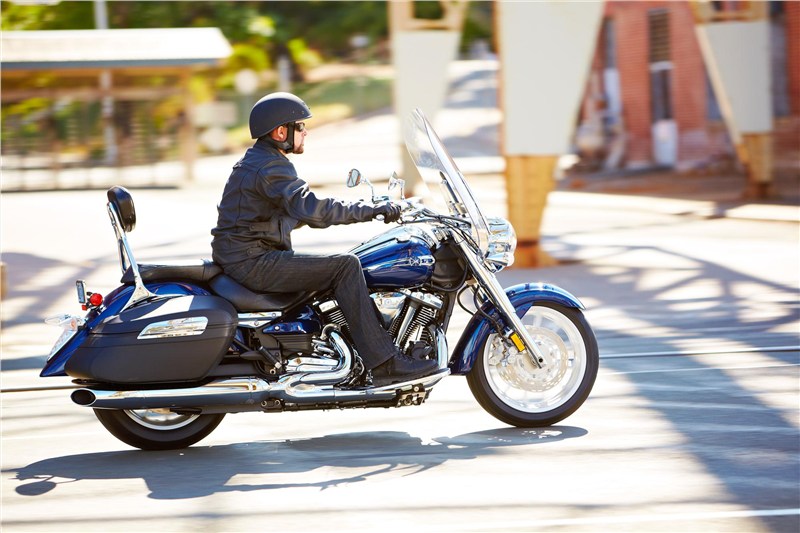

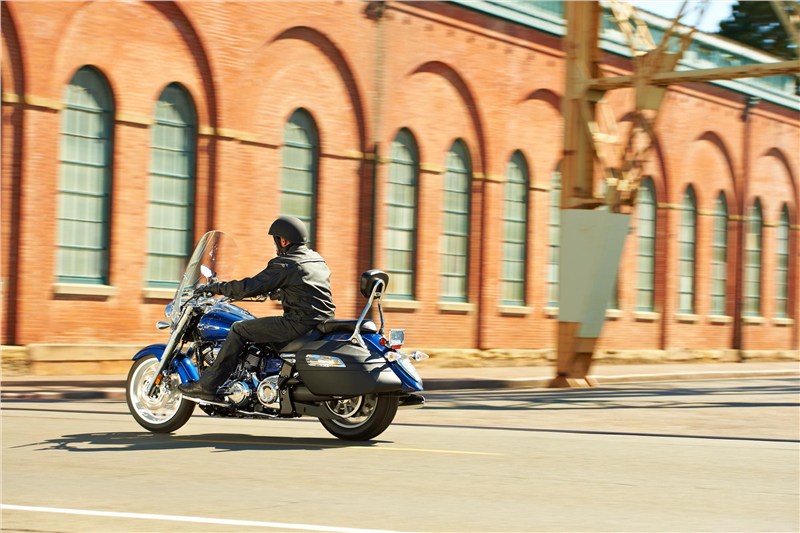

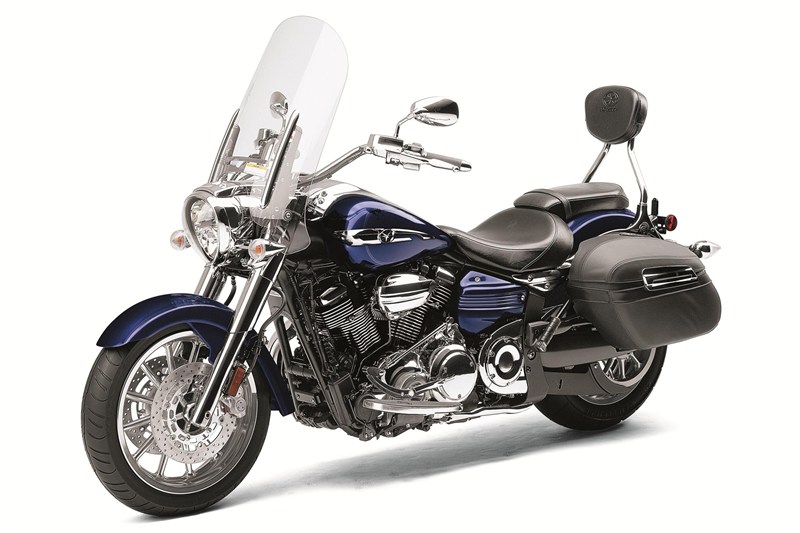

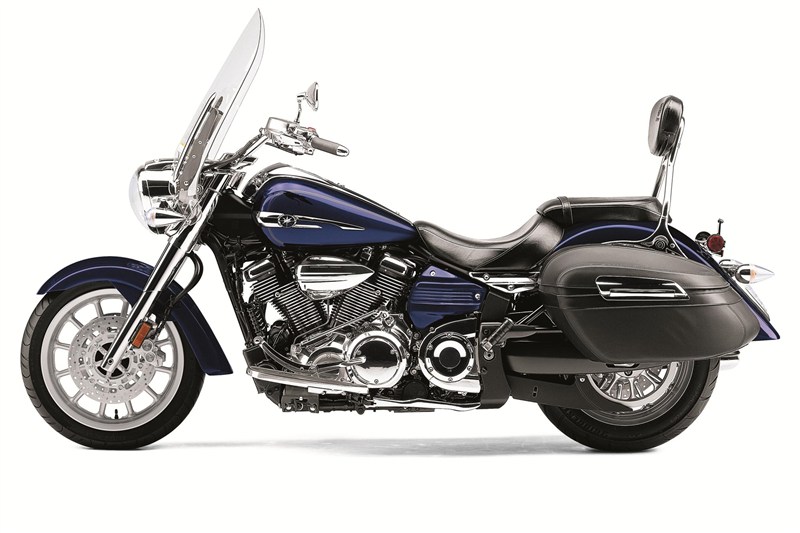

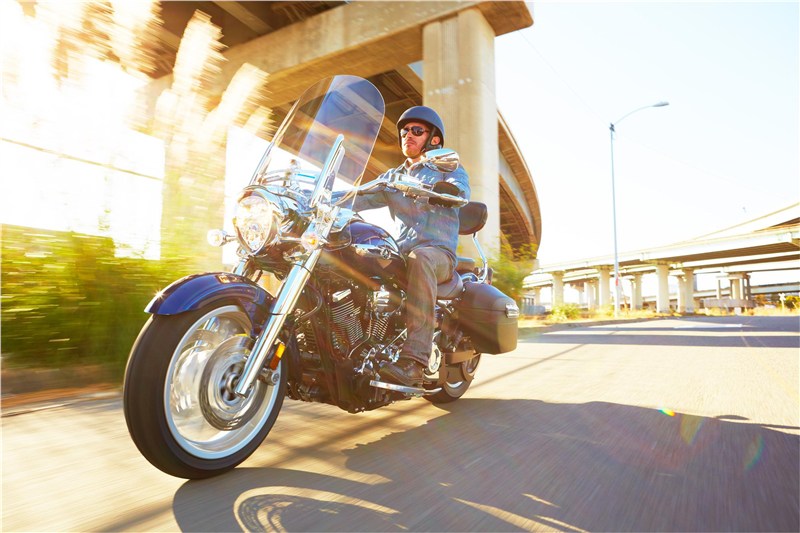

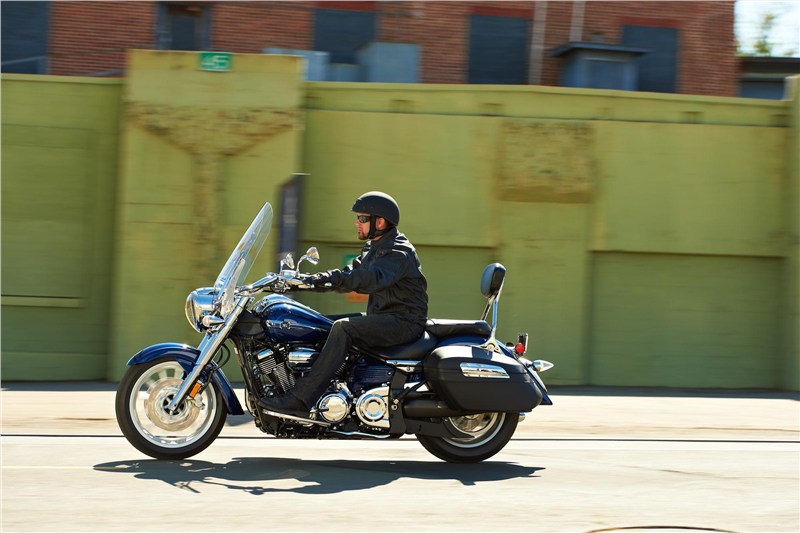

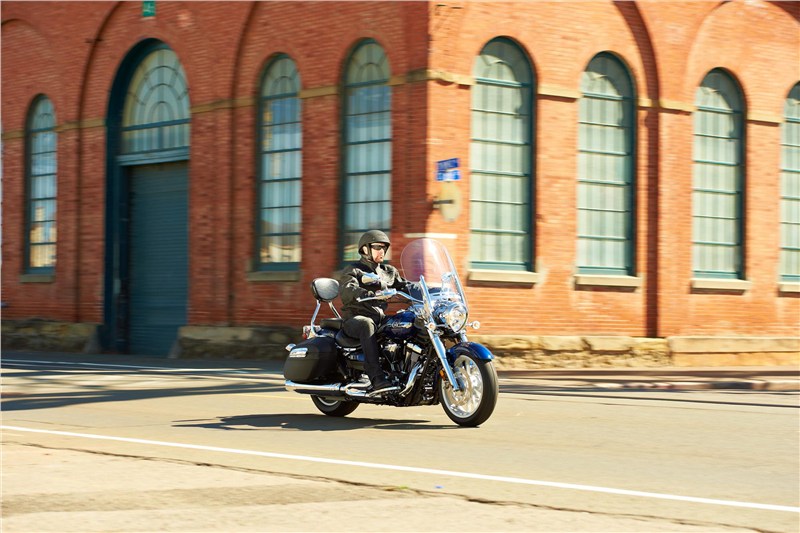

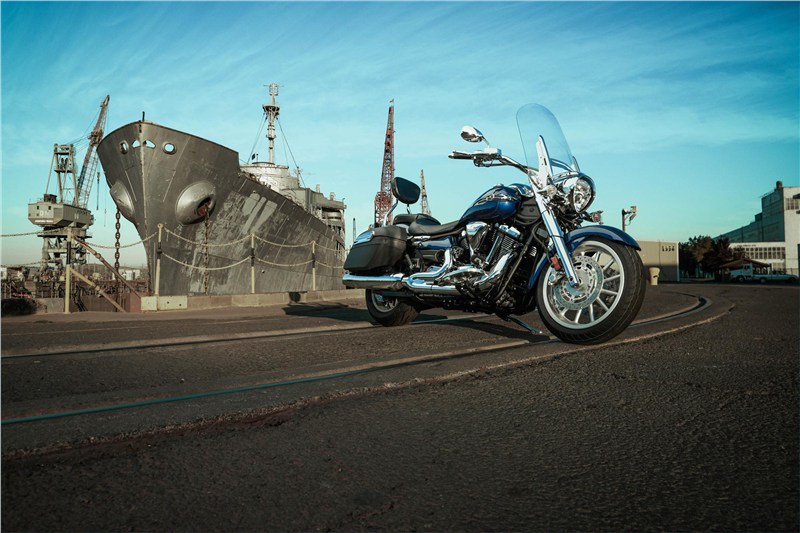

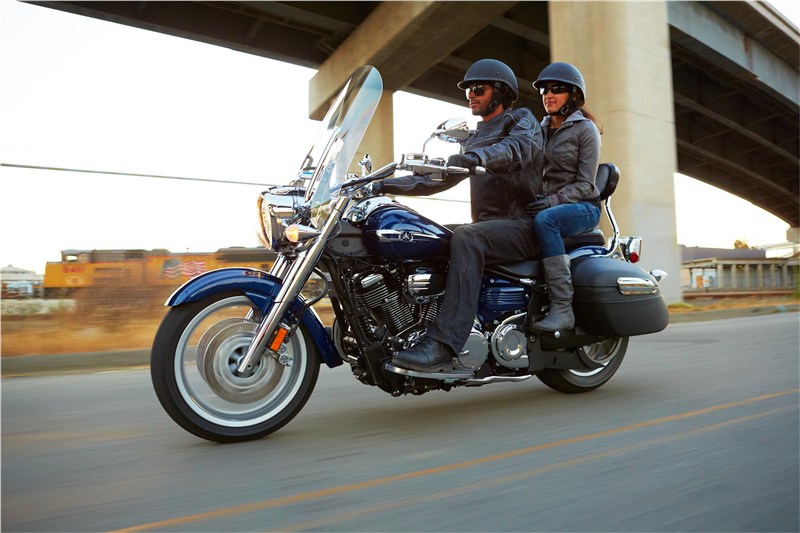

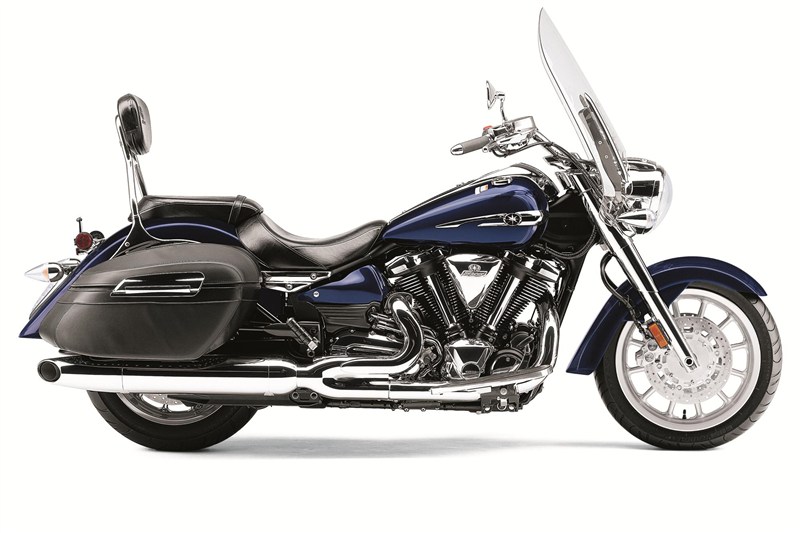

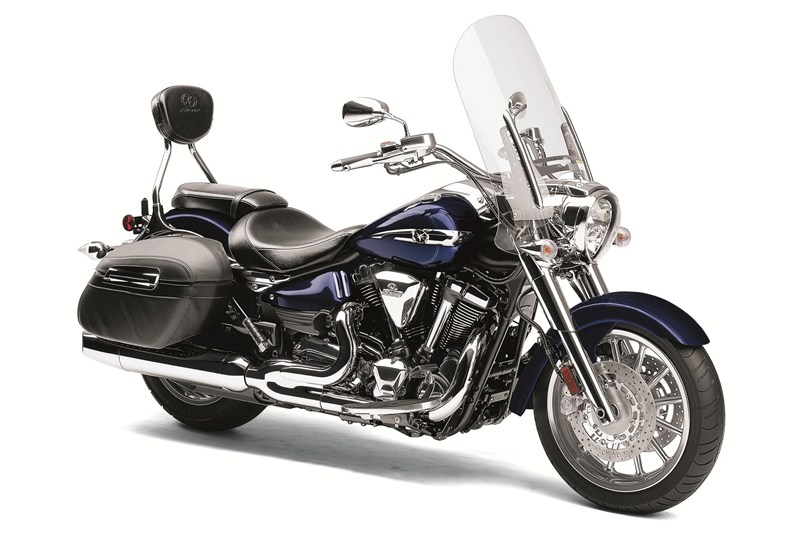

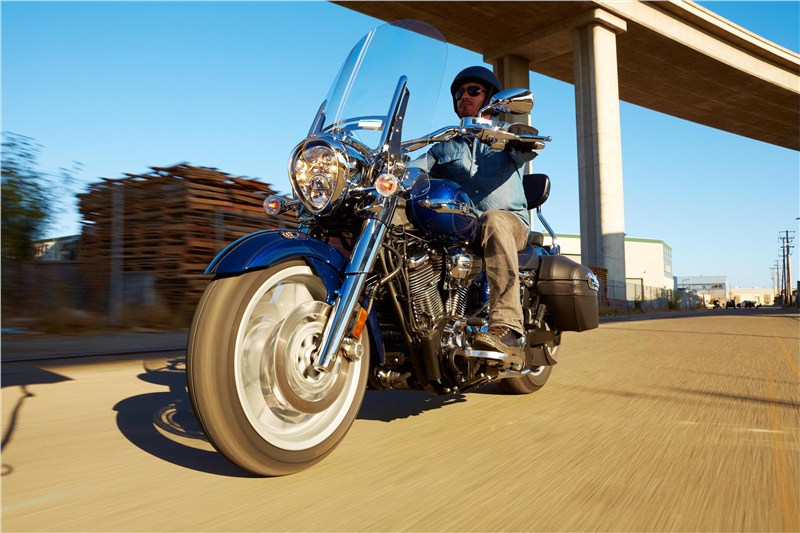

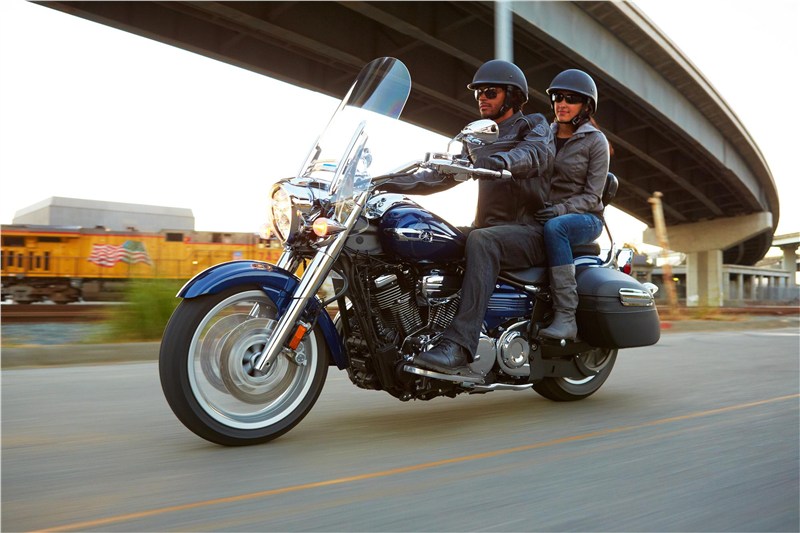

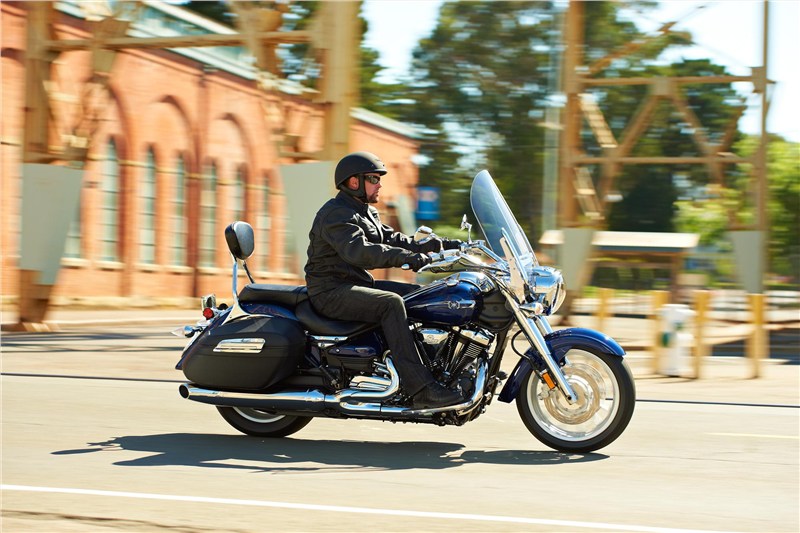

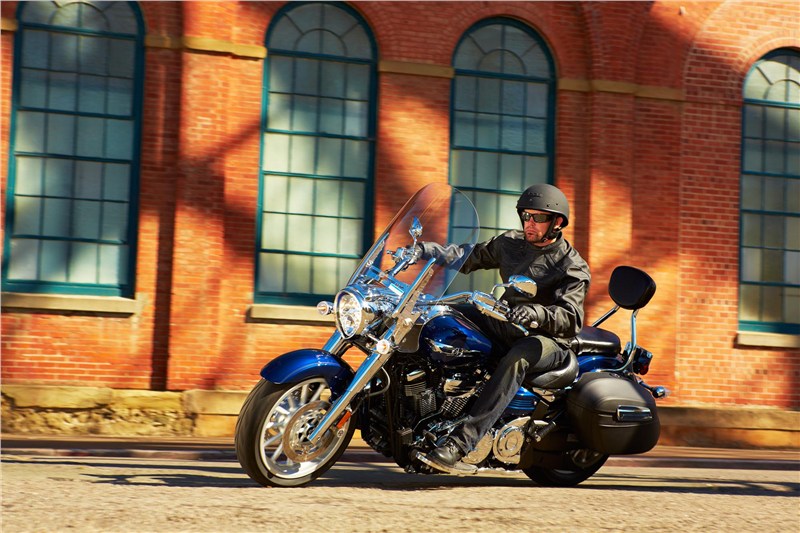

2013 Yamaha STRATOLINER S

2013 Yamaha STRATOLINER S
Deep Blue
MSRP: $17,590.00
Manufacturer: Yamaha
Condition: New

Description

  • The Stratoliner S gets chrome switchgear, front brake and clutch master cylinders and levers, belt guard, fork and fork covers, handlebar clamps, shifter, front pulley cover, various engine covers, rear fender stay and polished wheels.
  • A pair of large, leather-covered, locking hard sidebags make the Stratoliner S excellent for long hauls and short trips.
  • Powerful and beautiful 113-cubic-inch (1854cc) air-cooled, pushrod V-twin produces great thrust at any speed.
  • Twin-bore downdraft electronic fuel injection provides optimum engine efficiency and throttle response in the widest possible range of conditions.
  • Neo-streamline design gives the Stratoliner S a completely distinctive look.
  • Long and low aluminum frame provides great looks and light handling unlike any other full-size cruiser.
  • A sculpted seat makes the Stratoliner S an excellent place to sit on long rides.
  • The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.

Specifications

Engine

Type
113-cubic-inch (1854cc) air-cooled 48° V-twin; pushrod OHV, 4 valves/cylinder
Bore x Stroke
100mm x 118mm
Compression Ratio
9.5:1
Fuel Delivery
Twin-Bore electronic fuel injection;throttle position sensor
Ignition
TCI: Transistor Controlled Ignition
Transmission
5-speed; multiplate wet clutch
Final Drive
Belt


Chassis

Frame
Aluminum
Suspension / Front
46mm telescopic fork; 5.1-in travel
Suspension / Rear
Single shock; 4.3-in travel
Brakes / Front
Dual hydraulic disc, 298mm
Brakes / Rear
Hydraulic disc, 320mm
Tires / Front
130/70-18M/C 63H
Tires / Rear
190/60-17M/C 78H
Wheels
12-spoke cast


Dimensions

Length
101.6 in
Width
41.5 in
Height
59.6 in
Seat Height
27.8 in
Wheelbase
67.5 in
Fuel Capacity
4.5 gal
Fuel Economy**
42 mpg
Wet Weight***
813 lb


Other

Warranty
1 Year (Limited Factory Warranty)


Features

New for 2013:

  • Clutch has light, easy-pull operation — 20% less effort at the lever than before.

Engine:

  • 113-cubic-inch (1854cc) air-cooled, pushrod 48-degree V-twin has massive looks and performance.
  • Four pushrod-activated valves and two spark plugs per cylinder provides optimum combustion efficiency.
  • Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life.
  • 9.5:1 compression ratio and aggressive cam timing increase power output across the board.
  • Computer-controlled, twin-bore, fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization.
  • Exhaust Ultimate Power valve (EXUP®) inside the two-into-one exhaust system boosts torque.
  • Special custom-machining of the cooling fin edges gives a jewel-like appearance to the engine as light hits it from different angles.

Chassis/Suspension:

  • Aluminum frame is light, rigid, and requires few welds for a smooth, clean look. A light, Controlled-Fill die-cast swingarm complements the bike’s streamline style and reduces unsprung weight for great handling.
  • 46mm fork tubes serve up an excellent ride and a sweet appearance.
  • A tucked-out-of-sight single shock with adjustable spring preload out back provides a smooth ride under varying loads.
  • A thick, richly chromed 1.25-inch handlebar in chrome clamps carries the Stratoliner S’s switchgear wiring on the inside.
  • Flangeless, teardrop fuel tank carries a full 4.5 gallons of fuel.
  • Polished 12-spoke wheels evoke a thick spoke look, but carry modern tubeless radial tires; a 130/70-18 front and a fat, 190/60- 17 rear for excellent grip.
  • Chrome front brake master cylinder with integrated lever operates a pair of 298mm front discs squeezed by strong monoblock calipers for excellent power, feel, and great style.
  • Strong-and-light belt final drive routes power smoothly and efficiently to the rear wheel.
  • Floating floorboards and an adjustable heel/toe shifter help provide a comfortable, low-effort ride.

Additional Features:

  • A sculpted seat makes the Stratoliner S an excellent place to sit on long rides. Improves long range comfort.
  • Position beams within the main headlight housing provide great visibility.
  • Left-thumb operated high-beam switch, and right-thumb activated accessory driving light switch for great visibility.
  • Classic clock-style instrumentation complements Stratoliner S’s neo-retro look and contains analog speedometer, tachometer and fuel gauge, along with twin digital tripmeters and odometer.
  • Bright multireflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look.
  • Leather-covered, locking, hard sidebags, a quick-removable windshield that locks into place and a locking, quick-detachable passenger backrest provide security.
  • Sidebags detach easily for cleaning.
