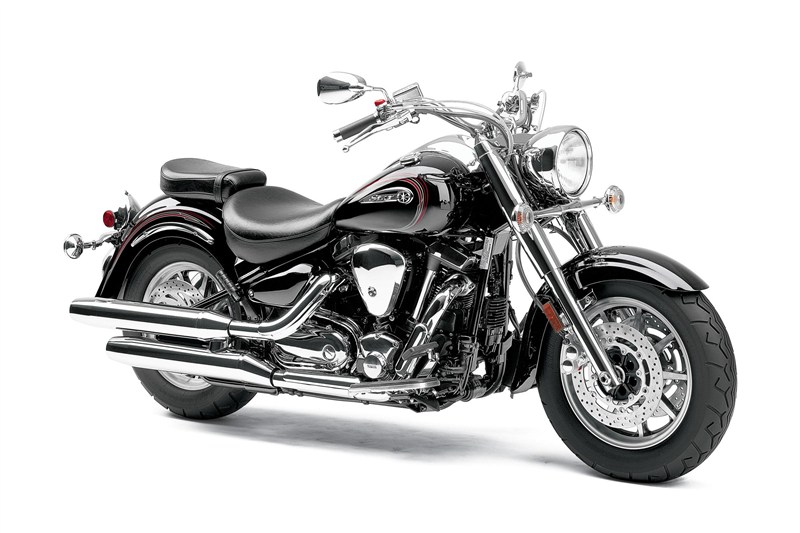

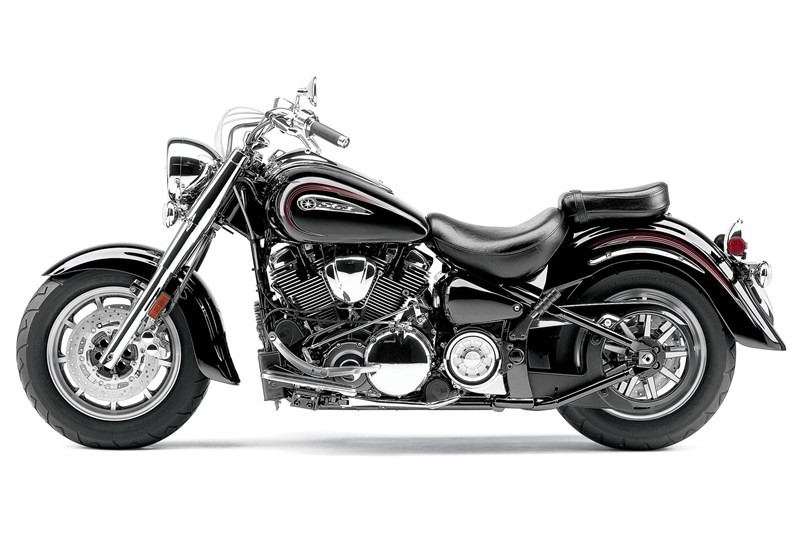

2013 Yamaha ROAD STAR S

2013 Yamaha ROAD STAR S
Raven
MSRP: $13,790.00
Manufacturer: Yamaha
Condition: New

Description

  • The Road Star S gets a chromed out front end including chrome forks, fork covers, fork clamp, switch housings, and brake/clutch levers as well as stainless steel braided throttle and clutch cables.
  • Electronic fuel injection provides easy cold starting and flawless fuel delivery at nearly all altitudes and in nearly any conditions.
  • 102-cubic-inch (1670cc) V-twin powered beauty in a long and low hardtail-look frame, with plenty of customization potential built in. Modern engineering and materials, including ceramic-composite cylinder liners for superior heat dissipation.
  • Air cooling, hydraulic valve lifters, and belt final drive reduce maintenance requirements to a minimum.
  • Estimated 36 mpg* means this cruiser is in for a long haul between fill-ups.
  • The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.

Specifications

Engine

Type
102-cubic-inch (1670cc) air-cooled 48° V-twin; pushrod OHV, 4 valves/cylinder
Bore x Stroke
97mm x 113mm
Compression Ratio
8.4:1
Fuel Delivery
Fuel injection
Ignition
TCI: Transistor Controlled Ignition
Transmission
5-speed, wide-ratio; multiplate wet clutch
Final Drive
Belt


Chassis

Frame
Steel; hidden shock
Suspension / Front
43mm fork; 5.5-in travel
Suspension / Rear
Single shock; 4.3-in travel
Brakes / Front
Dual hydraulic disc, 298mm
Brakes / Rear
Hydraulic disc, 320mm
Tires / Front
130/90-16M/C 67H
Tires / Rear
150/80B16M/C 71H
Wheels
9-spoke cast


Dimensions

Length
98.4 in
Width
38.6 in
Height
44.9 in
Seat Height
27.9 in
Wheelbase
66.5 in
Ground Clearance
5.7 in
Fuel Capacity
4.8 gal
Fuel Economy**
36 mpg
Wet Weight***
743 lb


Other

Warranty
1 Year (Limited Factory Warranty)


Features

Engine:

  • 102-cubic-inch (1670cc) air-cooled, pushrod OHV 48-degree V-twin pumps out huge amounts of torque barely off idle for brisk acceleration and fantastic overall cruising performance.
  • Computer-controlled fuel injection monitors multiple engine parameters to calculate perfect mixture under nearly all conditions.
  • Air cooling, hydraulic valve lifters and belt final drive. Reduces maintenance requirements to a minimum.
  • Smooth-shifting transmission delivers outstanding cruising performance with low rpm at highway speeds.
  • Dry sump lubrication system uses a handy spin-on filter and helps centralize mass by helping keep overall engine height to a minimum.
  • Electric starting system features solenoid-activated auto-decompressor for easy, dependable starting.
  • Two-into-two exhaust system features beefy, staggered shotgun dual pipes putting out a soulful V-twin exhaust tune.

Chassis/Suspension:

  • Solid-mounted engine housed in specially designed rigid-look, double-cradle frame features a stylish 32-degree rake.
  • Extra-long 66.5-inch wheelbase creates long and low retro profile, added rider comfort for a great ride.
  • Telescopic 43mm front forks with stainless-steel covers and 5.5 inches of travel stylishly smooth out the bumps.
  • Out-of-sight link-type, preload-adjustable rear shock provides 4.3 inches of wheel travel for great handling and a plush ride.
  • 16-inch cast wheels shod with tubeless tires for a classic look while providing confidence-inspiring handling and excellent grip.
  • Dual 298mm front disc brakes feature four-piston calipers with aluminum pistons and sintered brake pads for strong, linear stopping power, backed up by a 320mm single rear disc.
  • Lightweight and high-strength final drive belt provides long life and quiet operation.

Additional Features:

  • Industry-leading Star family fit and finish mean lustrous paint and extensive chrome accents that create a machine as stunning as it is powerful.
  • Ultra-thin, tank-mounted speedometer features a stylish design and provides easy reading of odometer, dual tripmeters, clock and fuel gauge as well as low fuel, high beam, turn signal, neutral and engine diagnostic indicator lights.
  • LED taillight and clear turn signal lenses with amber bulbs for a custom look, great visibility and reduced current draw.
  • Full-size floating-type rider floorboards with replaceable wear pad are roomy and comfortable.
  • A two-piece adjustable heel/toe shifter and braided stainless clutch and throttle cables add even more comfort and style.
  • 4.8-gallon fuel tank with low-fuel warning light means exceptional cruising range.
  • Seat and fork locks both integrated into main ignition switch for extra convenience.
  • Handy underseat helmet holder.
  • Powerful 12V 60/55-watt halogen headlight maximizes nighttime visibility and comes with beautiful chrome finish.
  • 12V 12-amp-hour maintenance-free battery provides fuss-free, dependable starting.
  • Stainless steel braided throttle and clutch cables.
