  • 2013 Yamaha GRIZZLY 700 FI AUTO. 4X4 EPS SPECIAL EDITION

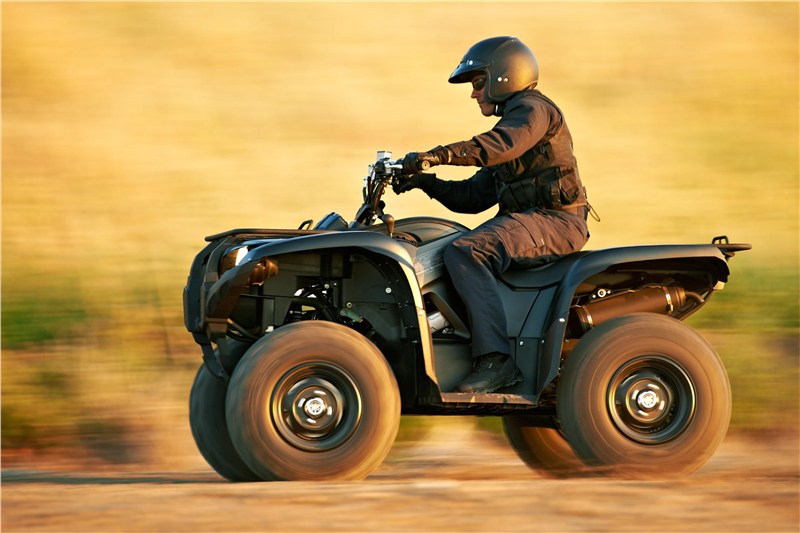

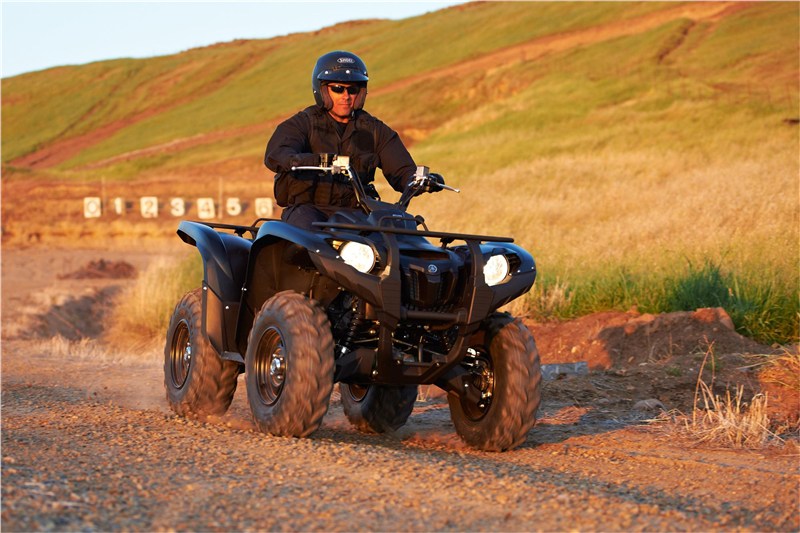

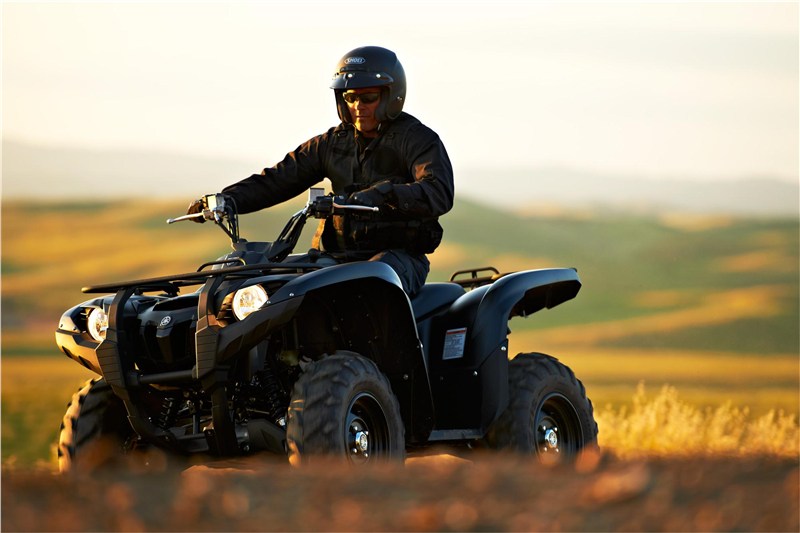

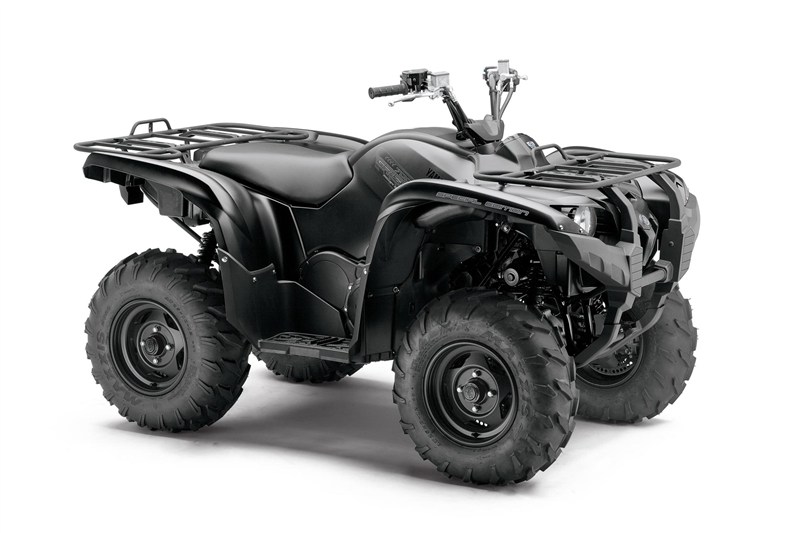

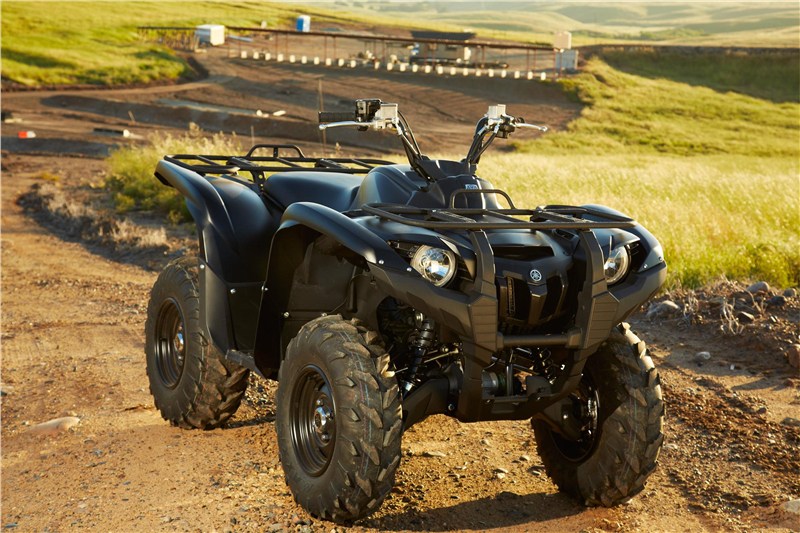

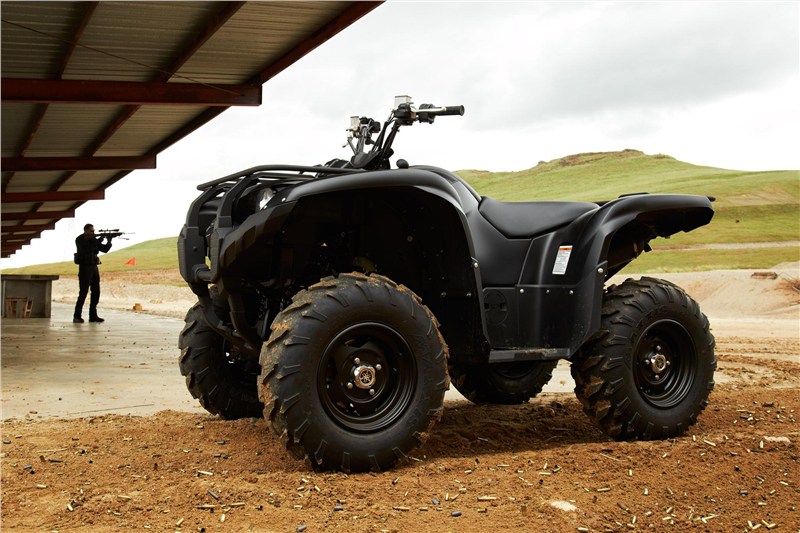

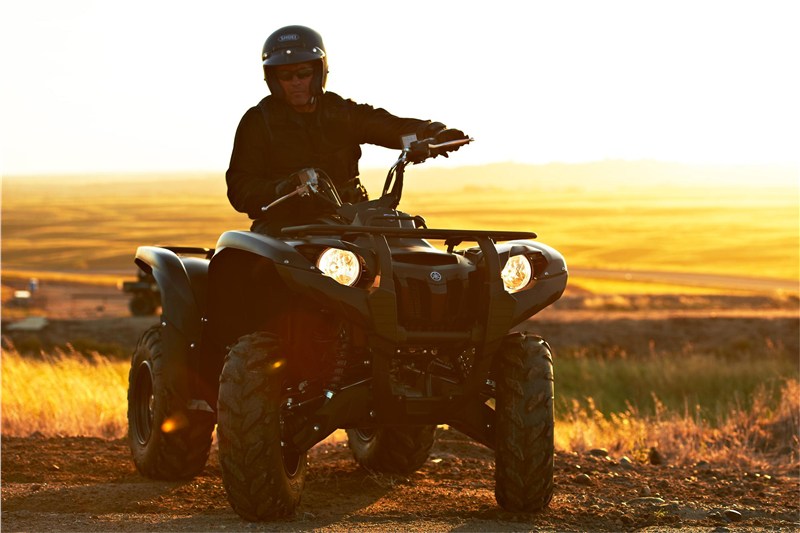

2013 Yamaha GRIZZLY 700 FI AUTO. 4X4 EPS SPECIAL EDITION

2013 Yamaha GRIZZLY 700 FI AUTO. 4X4 EPS SPECIAL EDITION
Tactical Black
MSRP: $10,099.00
Manufacturer: Yamaha
Condition: New

Description

  • The Grizzly 700 Special Edition is coated with Tactical Black paint and includes cast aluminum wheels and special graphics.
  • The most powerful Grizzly ever: 686cc liquid-cooled, four-stroke engine and light weight has the best power-to-weight ratio of any Yamaha utility ATV.
  • Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
  • Industry first: Electric Power Steering system lightens steering for superior comfort and terrainability.
  • Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.
  • Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
  • Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
  • Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine’s running hours, 4WD status, transmission position, clock and fuel gauge.

Specifications

Engine

Type
686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke
102.0mm x 84.0mm
Compression Ratio
9.2:1
Fuel Delivery
Yamaha Fuel Injection (YFI), 44mm
Ignition
32-Bit ECU
Starting System
Electric
Transmission
Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train
Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive


Chassis

Suspension / Front
Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension / Rear
Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
AT25 x 8-12 w/aluminum wheels
Tires / Rear
AT25 x 10-12 w/aluminum wheels


Dimensions

L x W x H
81.3 x 46.5 x 48.8 in
Seat Height
35.6 in
Wheelbase
49.2 in
Turning Radius
126 in
Ground Clearance
10.8 in
Fuel Capacity
5.3 gal
Wet Weight
648 lb
Rack Capacity
99 lb Fr./187 lb Rr.
Towing Capacity
1322 lb


Other

Instrumentation
Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge, gear position, EPS and EFI function
Lighting
Dual 35W Halogen multireflector headlights & 21W/5W brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

Engine:

  • Raptor®-based four-valve combustion chamber design produces a potent combination of low-rev torque, instant throttle response and high horsepower.
  • Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
  • Gear-driven crankshaft balancer shaft and rubber-damper engine mounts reduce vibration.
  • Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
  • Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
  • Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition.
  • Pushbutton electric start with seven-disc torque-limiting damper assembly protects the starter motor.
  • Straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration and maintenance.
  • Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
  • High-capacity radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
  • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
  • Override button allows engine to make maximum rpm in full Diff. Lock mode.
  • Sealed drive case keeps out water and debris to help increase durability.
  • Oil access cover allows easy access to check oil level.

Chassis/Suspension:

  • WideArc™ front suspension A-arms provide outstanding ground clearance.
  • Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
  • Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
  • Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power under all sorts of nasty conditions.
  • Electric power steering varies assist according to speed and torque for increased comfort and incredible maneuverability— even in 4WD.
  • 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter water-resistant storage compartment under there, too.
  • 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
  • 25x8-12 front and 25x10-12 rear Maxxis® tires provide responsive steering and handling along with excellent comfort.
  • Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.

Additional Features:

  • Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
  • LCD instrument display contains fuel injection and electric power steering information, as well as bar-type fuel gauge, speedometer, odometer, trip meter, clock, and Diff. Lock indicator.
  • Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
  • Fenders have a textured finish that resist scratching and scuffing.
  • Dual 35-watt multireflector halogen bulb headlights with high/low beams light up the night.
  • Assembled in Newnan, GA, U.S.A.
