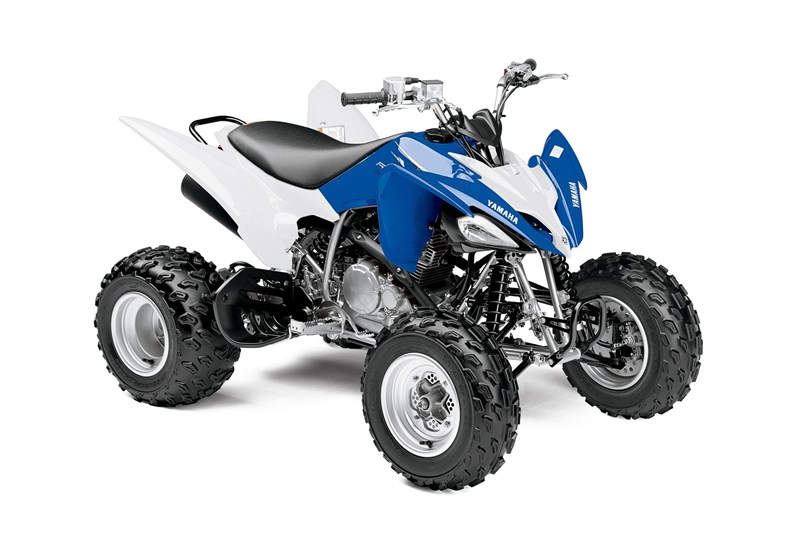

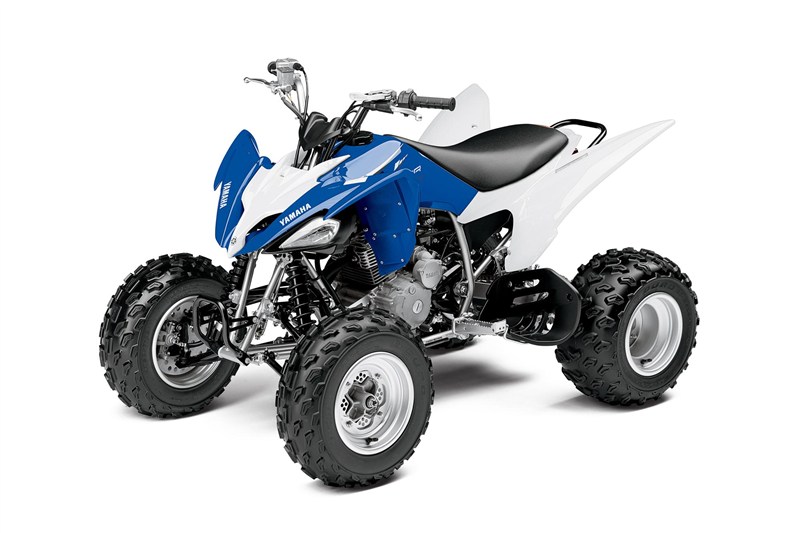

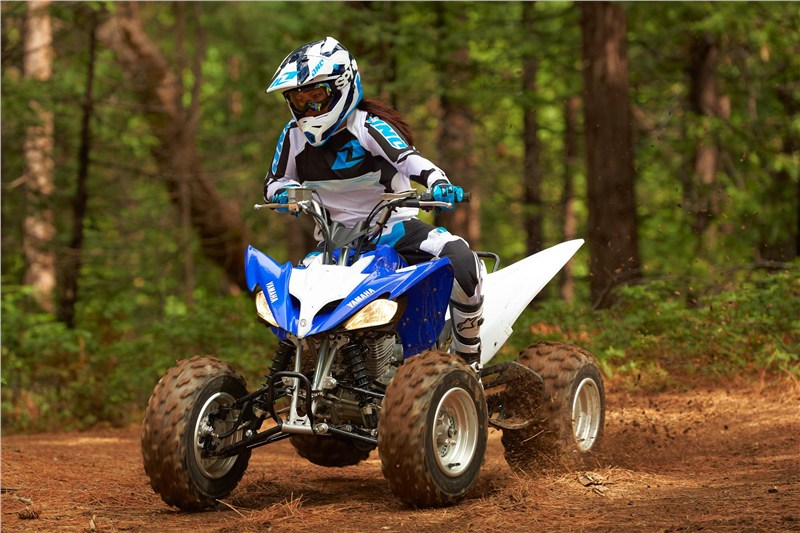

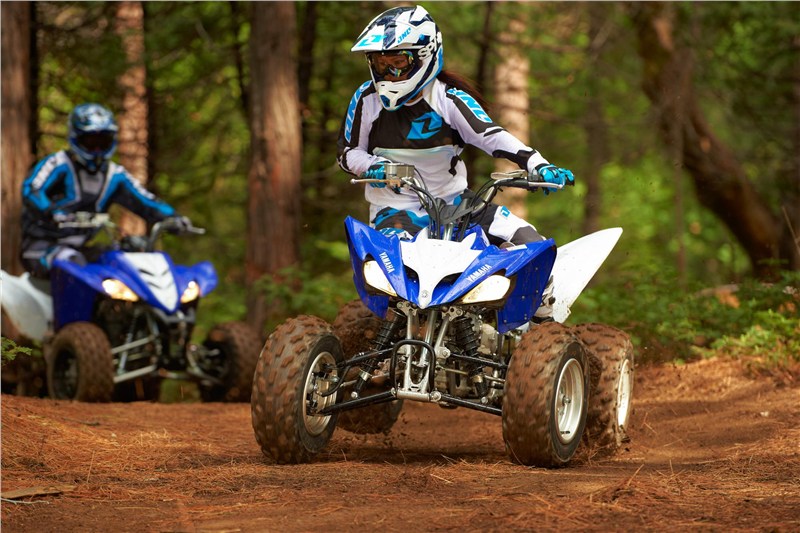

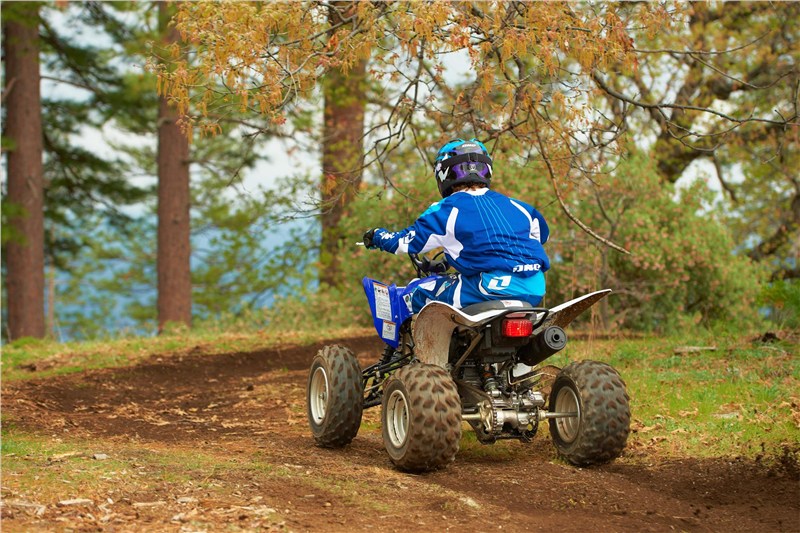

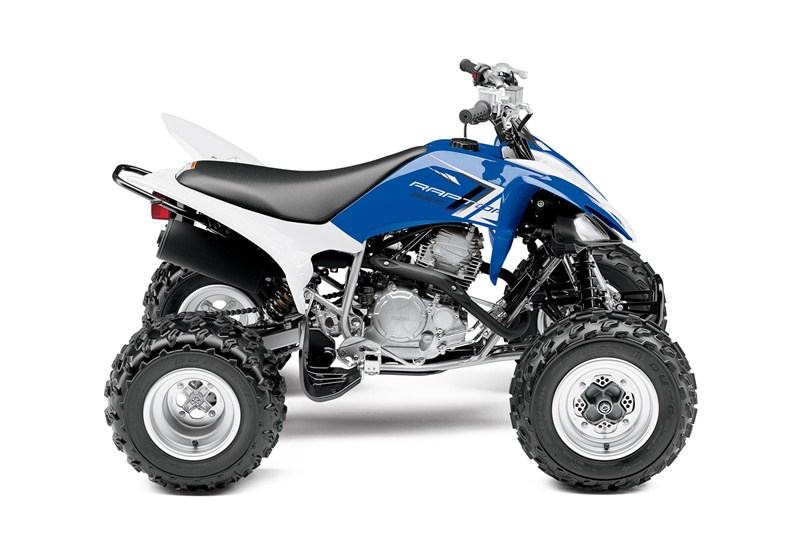

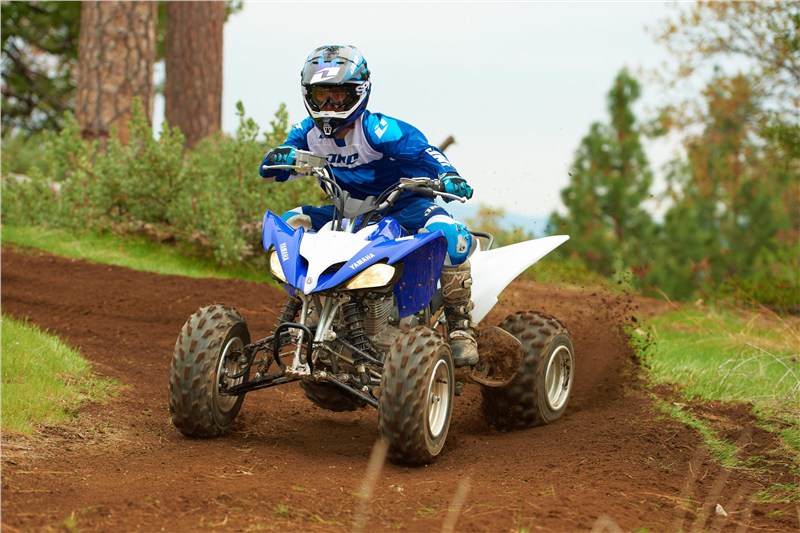

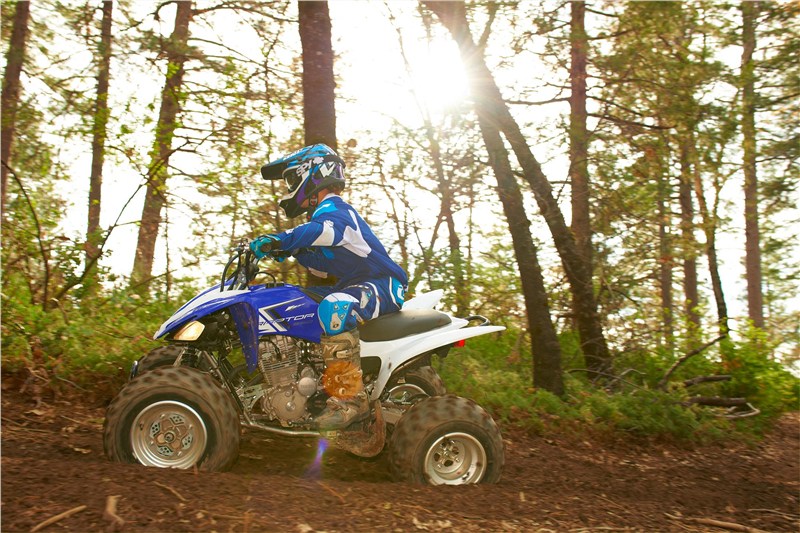

2013 Yamaha RAPTOR 250

2013 Yamaha RAPTOR 250

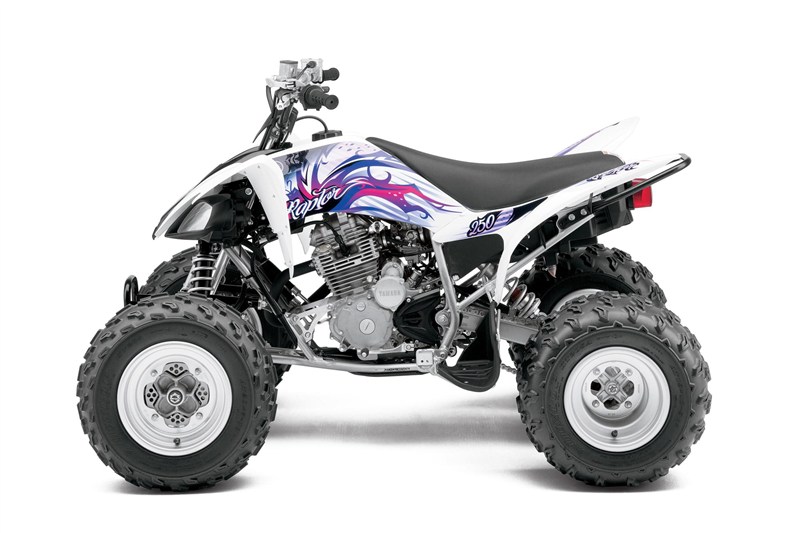

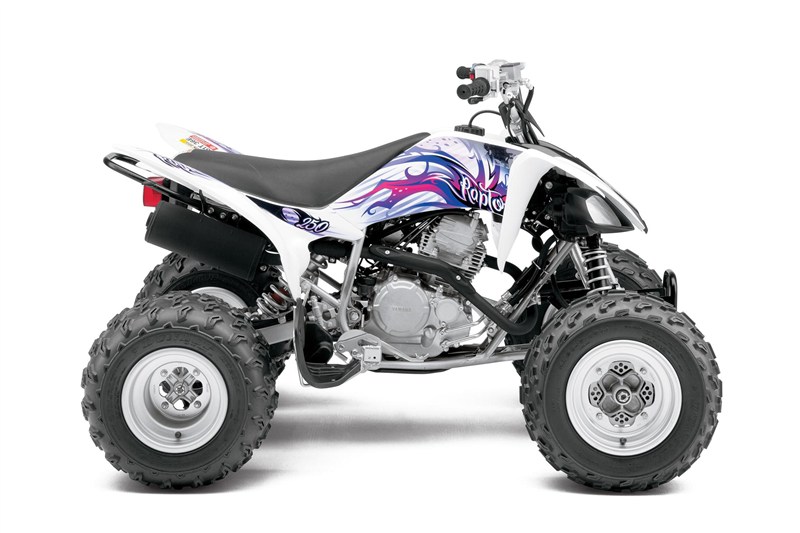

White w/Graphics Kit
MSRP: $4,599.00
Manufacturer: Yamaha
Condition: New


  • Aggressive Raptor style and stance gives maximum performance and excellent, all-day sport-riding ergonomics.
  • Class-exclusive five-speed manual transmission has a gear for almost any terrain.
  • Torquey, durable air-cooled engine puts out plenty of power and starts with the push of a button.
  • Low-profile 19-inch rear tires boast outstanding traction and performance.
  • Longest suspension travel and lowest seat in its class for true sport handling.
  • Lightest weight in its class provides amazingly nimble handling and a great power-to-weight ratio.



249cc air/oil-cooled 4-stroke; SOHC, 2 valves
Bore x Stroke
74.0 x 58.0mm
Compression Ratio
Fuel Delivery
Mikuni® 29mm BSR
Starting System
5-speed; wet multiplate clutch
Drive Train
2WD; sealed O-ring chain, eccentric adjustment


Suspension / Front
Independent double wishbone; 5-way preload-adjustable shocks, 7.5-in travel
Suspension / Rear
Swingarm, preload-adjustable, 7.9-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Hydraulic disc
Tires / Front
Dunlop® AT20 x 7-10
Tires / Rear
Dunlop® AT19 x 10-9


L x W x H
64.0 x 42.1 x 40.9 in
Seat Height
28.7 in
43.7 in
Ground Clearance
3.9 in
Fuel Capacity
2.4 gal
Wet Weight
330 lb


Dual 30W Krypton multireflector headlights & 21/5W brakelight
6 Month (Limited Factory Warranty)



  • Light and powerful 249cc, air-cooled, SOHC, four-stroke single produces a broad, deep powerband.
  • Five-speed gearbox with manual clutch provides the flexibility to tackle pretty much any track or trail.
  • Mikuni® 29mm carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
  • Electric starting is standard equipment and works in any gear.
  • DC-CDI ignition system delivers consistent spark at all rpm levels—for quick throttle response and a smooth, broad powerband.
  • Ceramic-composite cylinder liner allows for greatly reduced wear and excellent heat dissipation.
  • Oil cooler keeps engine temps down and lubrication up in hot conditions.
  • Airbox features no-tools air filter access.
  • Three-chamber muffler is light, quiet and boosts low- and midrange performance.


  • Light, strong, short-wheelbase chassis creates a quick, super-responsive high-performance package.
  • Low, 28.7-inch seat height enhances rider comfort and allows optimal rider movement.
  • Independent double-wishbone front suspension with five-way preload-adjustable shocks gives 7.5 inches of wheel travel.
  • Rigid and light swingarm rear end is controlled by a shock with adjustable preload and 7.9 inches of wheel travel, for rider comfort.
  • Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
  • Triple hydraulic disc brakes deliver excellent stopping power even in wet conditions.
  • Extra-wide, 45mm footpegs provide excellent grip and rider comfort.
  • Easy-to-use, flip-type handlebar-mounted parking brake can be set with one hand.
  • Low profile Dunlop® tires deliver outstanding traction for razor sharp handling in a variety of terrain.
  • Easy-adjust eccentric chain adjustment feature means hassle-free chain maintenance.
  • Flat, composite skidplates provide maximum underbelly protection.
  • Rugged steel grab bars front and rear help fend off debris and damage.

Additional Features:

  • Dual 30-watt multireflector Krypton headlights add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
  • Waterproof electrical connectors provide outstanding durability and reliability.
  • Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 250.
  • Bodywork comes off without the need to disassemble electrical parts, airbox or wiring harness—for easy maintenance.
  • A 2.4-gallon fuel tank means less filling up and longer, more enjoyable rides.
