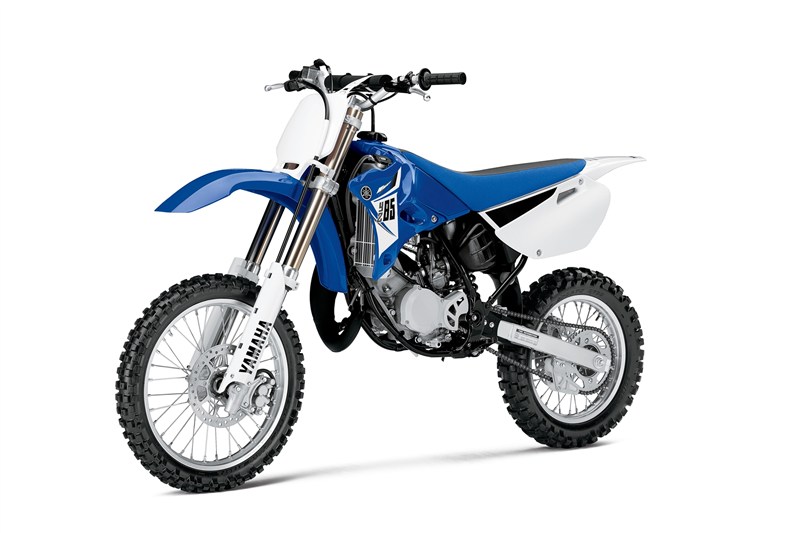

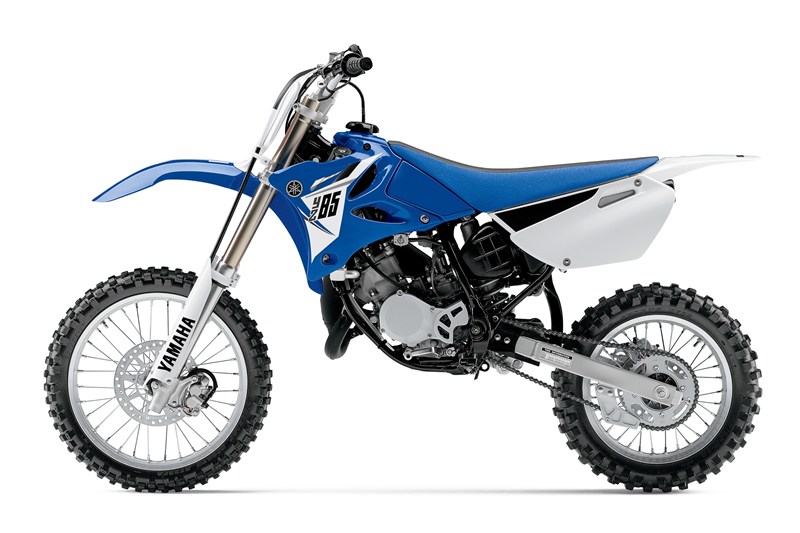

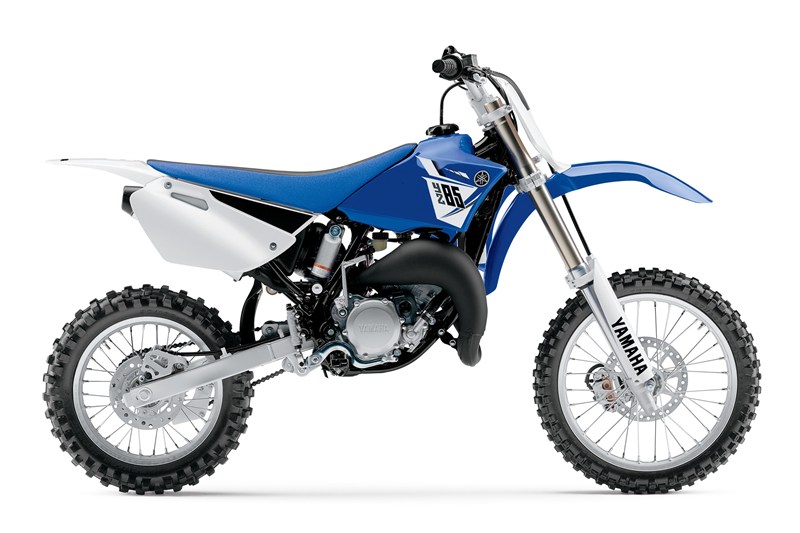

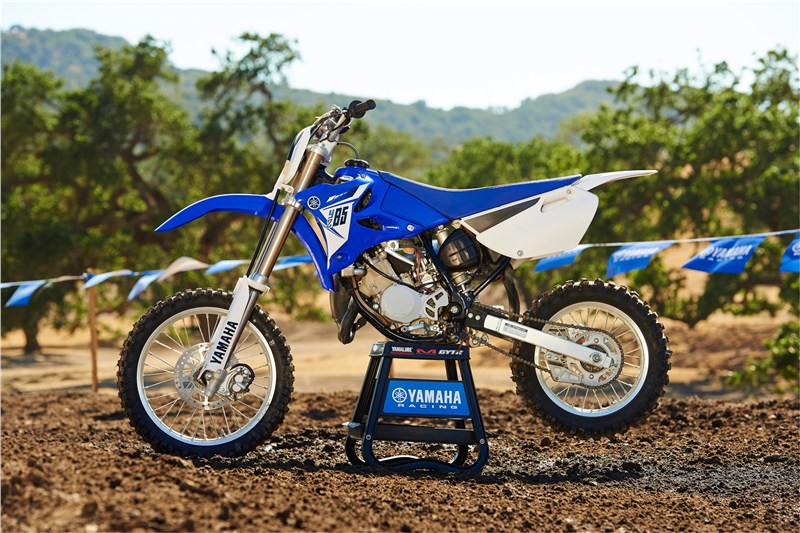

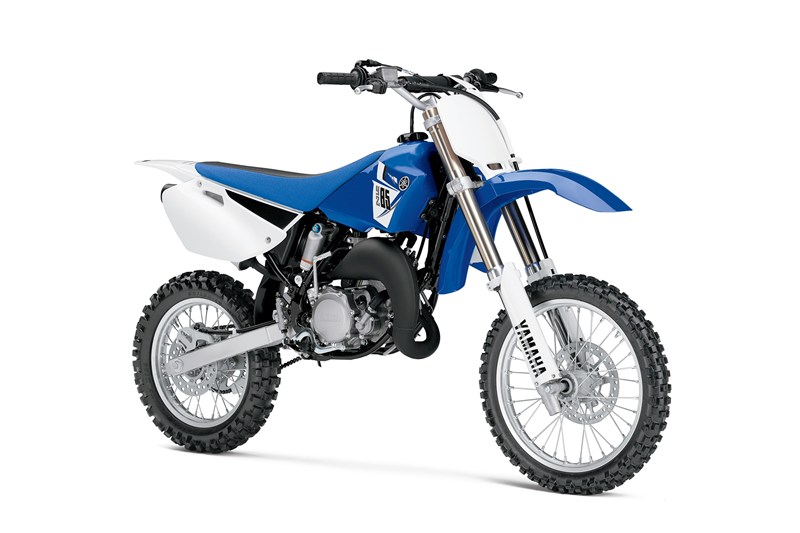

2014 Yamaha YZ85

2014 Yamaha YZ85
Team Yamaha Blue/White
MSRP: $3,990.00
Manufacturer: Yamaha
Condition: New

Description

  • Liquid-cooled, 85cc crankcase reed-valve-inducted six-speed is light, compact, and designed to deliver hard-hitting, moto-winning power throughout the rpm range.
  • Ultra-rigid, single-backbone, semi-double-cradle frame is lightweight and strong for sharp handling.
  • Fully adjustable suspension allows a broad adjustment range to suit everybody from rank novice to mini expert.
  • Owning a Yamaha 2-stroke is less expensive to maintain.

Specifications

Engine

Type
85cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke
47.5 x 47.8mm
Compression Ratio
8.2:1
Fuel Delivery
Keihin® PWK 28
Ignition
CDI
Transmission
Constant-mesh 6-speed; multiplate wet clutch
Final Drive
Chain Drive


Chassis

Suspension / Front
Inverted fork; fully adjustable, 10.8-in travel
Suspension / Rear
Single shock; fully adjustable, 11.1-in travel
Brakes / Front
Hydraulic single disc brake, 220mm
Brakes / Rear
Hydraulic single disc brake, 190mm
Tires / Front
70/100-17
Tires / Rear
90/100-14


Dimensions

Length
71.7 in
Width
29.8 in
Height
45.7 in
Seat Height
34.0 in
Wheelbase
49.5 in
Ground Clearance
13.8 in
Fuel Capacity
1.3 gal
Wet Weight***
157 lb


Other

Warranty
30 Day (Limited Factory Warranty)


Features

Engine:

  • 85cc liquid-cooled, crankcase reed-valve-inducted, two-stroke engine inhales through a 28mm Keihin® flat-slide carburetor; seamless throttle response across the powerband is the result.
  • Digital CDI ignition system puts out a more precise spark and monitors engine speed to ensure optimal timing for quicker, stronger response during hard acceleration.
  • Smooth-shifting, six-speed close-ratio transmission with heavy-duty, multiplate clutch delivers maximum hookup for outstanding acceleration and corner-exiting power.
  • Involute spline set-up in clutch means smoother shifting under power with great durability at competition-level usage.
  • Two-piece clutch cover provides easy access during maintenance.
  • Lightweight radiator has large cores and louvers, and the water pump features a cast aluminum (vs. resin) impeller for maximum cooling efficiency.
  • Lightweight exhaust system design helps create a broader powerband with stronger low-end punch.
  • Airbox design ensures greater air cleaning performance and easier maintenance.

Chassis/Suspension:

  • Rear subframe is removable to allow easy maintenance.
  • Lightweight 36mm KYB® inverted cartridge fork features 10.8 inches of travel with compression and rebound damping adjustability, and low-friction outer tubes and internals.
  • Rear suspension features fully adjustable Kayaba link-type shock with 11.1 inches of travel and race-tested compression damping valving.
  • 220mm front disc and 190mm rear disc brakes with stainless steel rotors deliver strong, precise stopping power.
  • Lightweight 17-inch front and 14-inch rear rims are durable and reduce unsprung weight for optimal suspension performance.
  • Dunlop® knobbies provide great traction on a variety of tracks and terrain.

Additional Features:

  • Wide handlebar and flat fuel tank, radiator shrouds, side panels and rear fender provide rider with leverage and freedom of movement and weight transfer.
  • Wide footpegs provide superb comfort, grip and ground clearance.
  • Separate clutch cover with transmission oil filler opening makes for easy maintenance.
  • Fuel tank cap is wider-diameter for easier usage, and large tank opening ensures fast, hassle-free refueling.
  • Repackable exhaust silencer.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
