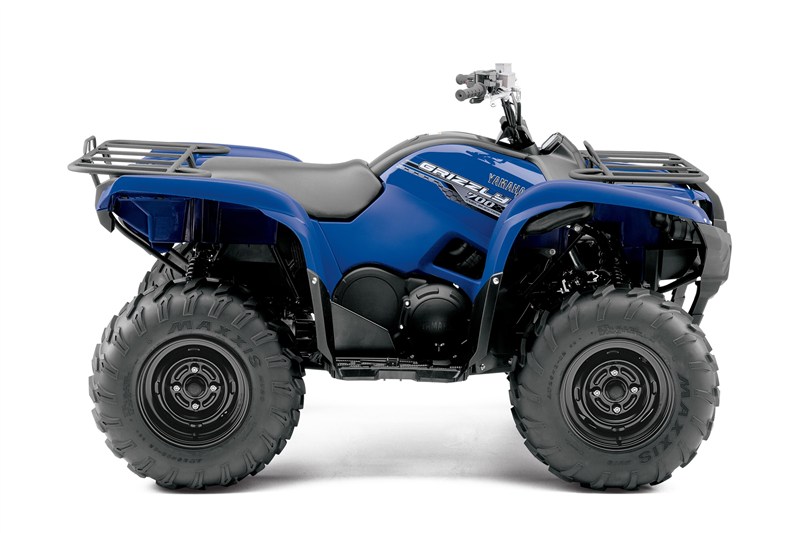

2014 Yamaha GRIZZLY 700 FI AUTO. 4X4

2014 Yamaha GRIZZLY 700 FI AUTO. 4X4
Steel Blue
MSRP: $8,899.00
Manufacturer: Yamaha
Condition: New

Description

  • The Grizzly 700, has a powerful 686cc, liquid-cooled, SOHC power plant, produces more power for the 2014 model year with enhanced engine settings to improve low end, mid-range and top end engine performance. The piston shape has been modified and compression ratio raised from 9.1:2 to 10.0:1, for an increased power feeling throughout the rev range.
  • The front and rear A-arms are longer while suspension stroke on both the front and rear shocks has also increased. These adjustments greatly enhance low speed rider comfort without sacrificing any of the legendary Grizzly handling.
  • Three-position On-Command® 4WD sytem lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
  • Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.
  • Advanced digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.

Specifications

Engine

Type
686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke
102.0mm x 84.0mm
Compression Ratio
10.0:1
Fuel Delivery
Yamaha Fuel Injection (YFI), 44mm
Ignition
32-Bit ECU
Starting System
Electric
Transmission
Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train
Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive


Chassis

Suspension / Front
Independent double wishbone; 5-way preload adjustment, 7.6-in travel
Suspension / Rear
Independent double wishbone; 5-way preload adjustment, 9.2-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
AT25 x 8-12
Tires / Rear
AT25 x 10-12


Dimensions

L x W x H
81.3 x 46.5 x 48.8 in
Seat Height
35.6 in
Wheelbase
49.2 in
Turning Radius
126 in
Ground Clearance
10.8 in
Fuel Capacity
5.3 gal
Wet Weight
648 lb
Rack Capacity
99 lb Fr./187 lb Rr.
Towing Capacity
1322 lb


Other

Instrumentation
Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge, gear position, and EFI function
Lighting
Dual headlights and 21/5W brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

New for 2014:

  • A new cylinder head and enhanced engine settings help improve low end, mid range, and top end engine performance. The piston shape has been modified and compression ratio raised from 9.1:2 to 10.0:1, for an increased power feeling throughout the rev range.
  • New longer front and rear suspension settings greatly enhance rider comfort.
  • New steering geometry lightens the steering effort, adding to rider comfort.
  • New graphic design enhances the rugged appearance.

Engine:

  • The Grizzly 700 is equipped with Yamaha's 686cc engine that puts out a broad powerband. New four-valve head, now with a 10.0:1 compression ratio, delivers optimum torque for virtually any workload.
  • New four-valve combustion chamber design produces a potent combination of low-rev torque, instant throttle response and high horsepower.
  • Compact engine design features a 35-degree cylinder angle for great ground clearance and a lower seat height for quick steering and maneuverability.
  • Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
  • Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
  • Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition.
  • Straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration, and maintenance.
  • Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
  • High-capacity radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
  • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
  • Five-position shift lever with H, L, N, R and P gates provides positive Ultramatic transmission operation.
  • Override button allows engine to make maximum rpm in full Diff. Lock mode.
  • Specially designed drive system air intake helps prevent overheating and assists in keeping water and debris from entering the drive case.

Chassis/Suspension:

  • Fully independent long-travel four-wheel suspension with WideArc A-arms up front and five-way preload-adjustable shocks provides maximum ground clearance for unparalleled comfort over rough terrain.
  • Four-wheel hydraulic disc brakes serve up powerful and consistent braking performance.
  • 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there's a 4.8-liter water-resistant storage compartment under there, too.

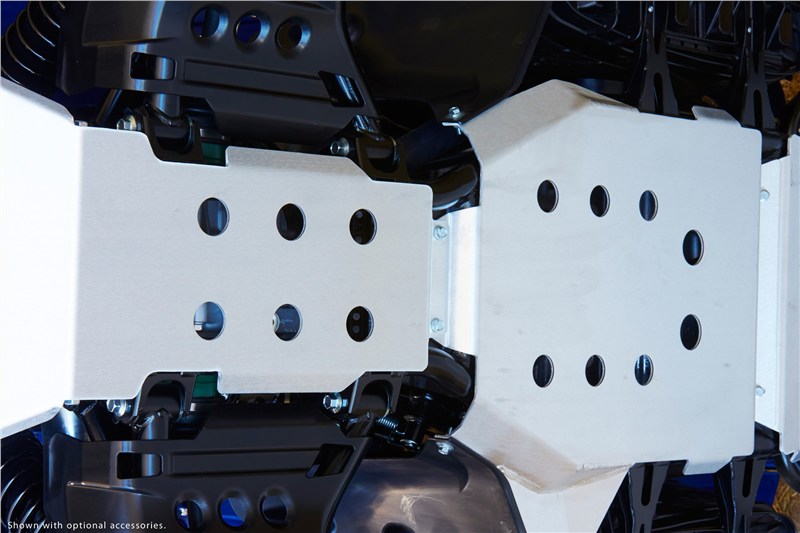

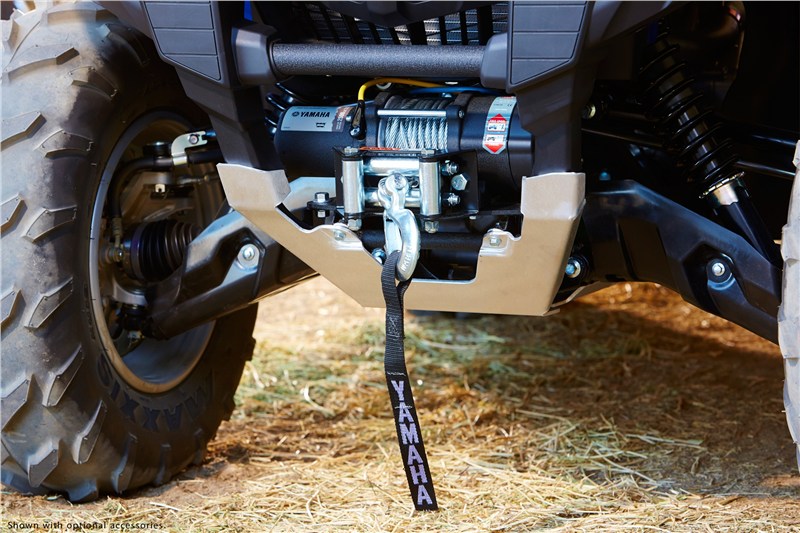

  • 10.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
  • Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.

Additional Features:

  • Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
  • Advanced digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.

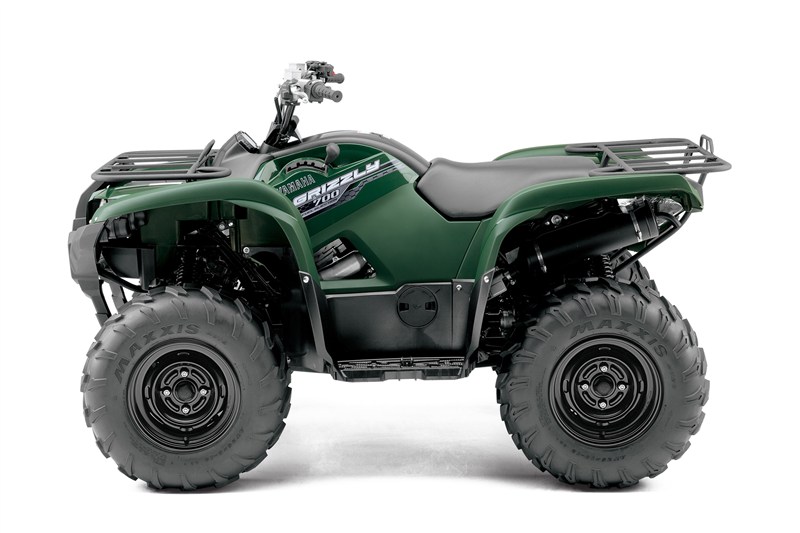

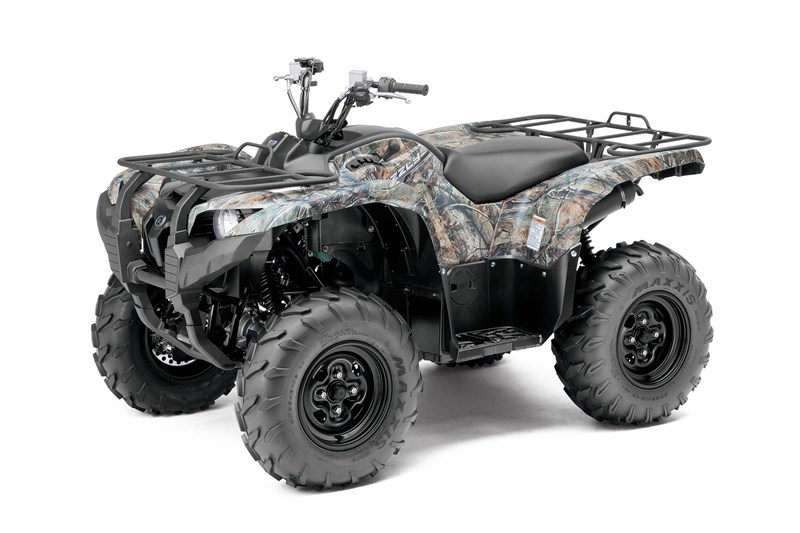

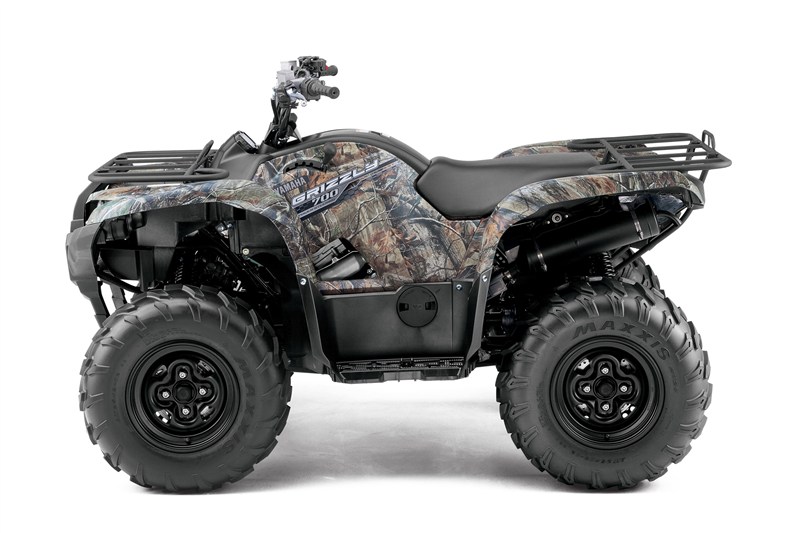

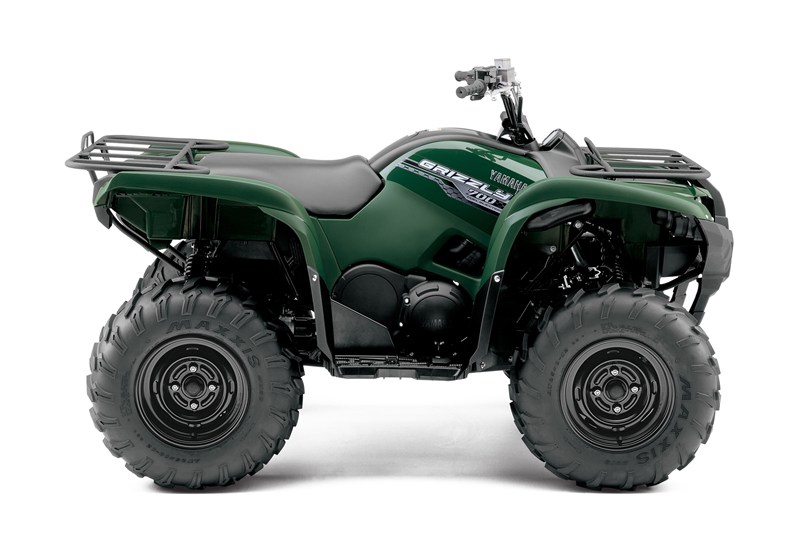

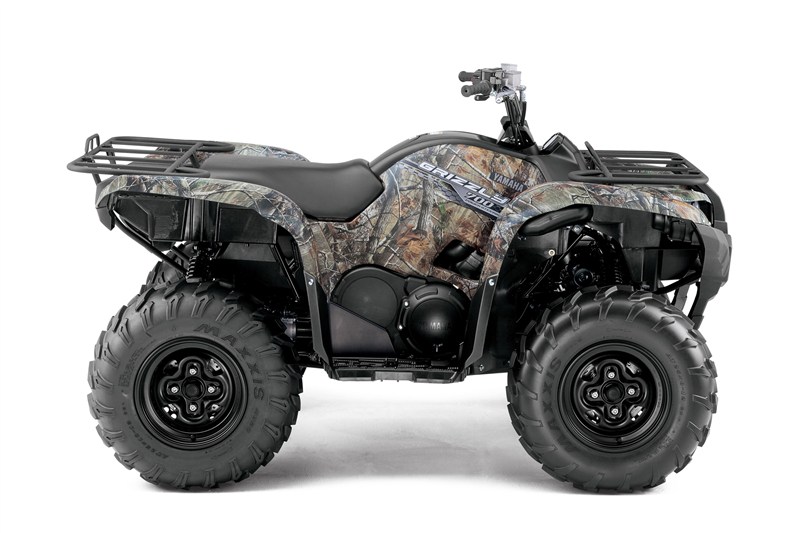

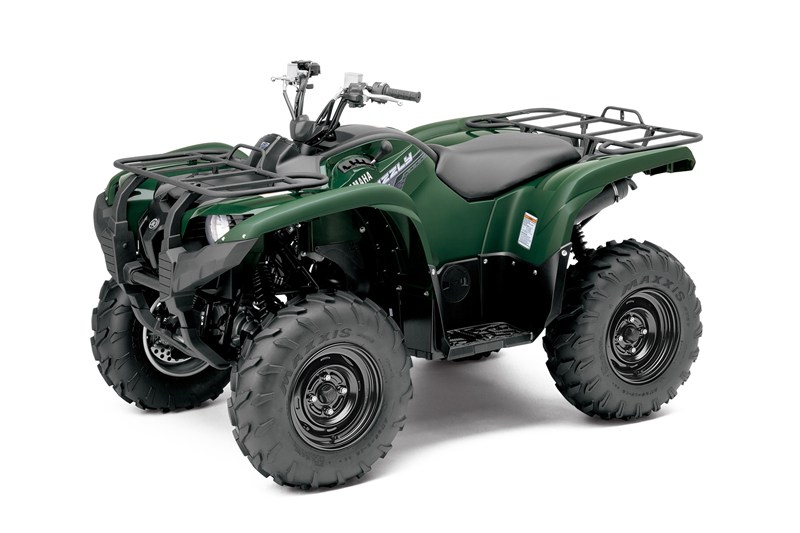

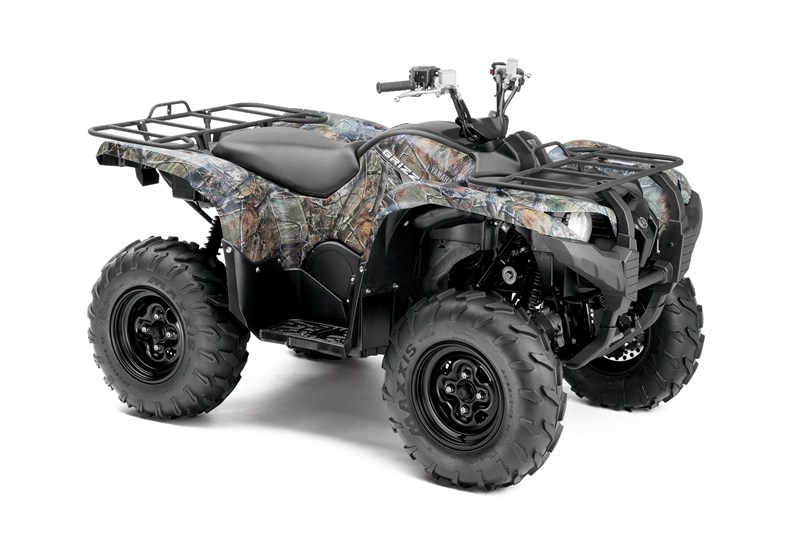

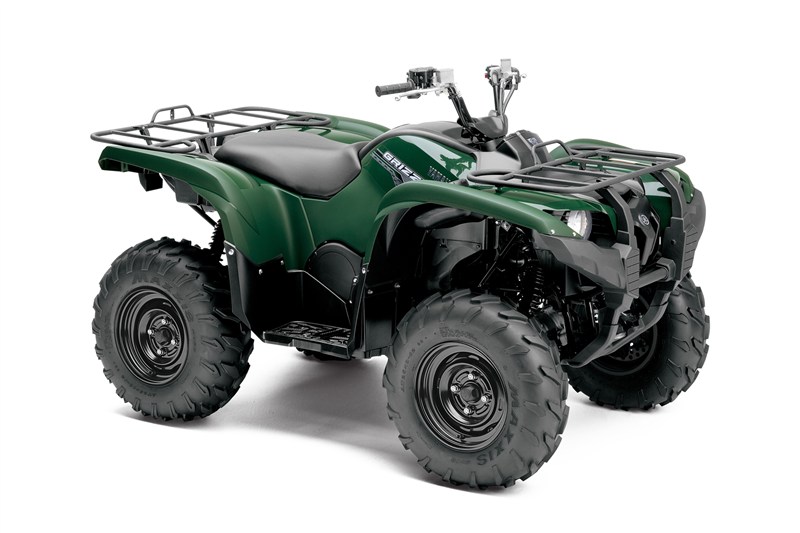

  • Hunter Green and Realtree® AP Camo models are equipped with spun aluminum wheels.

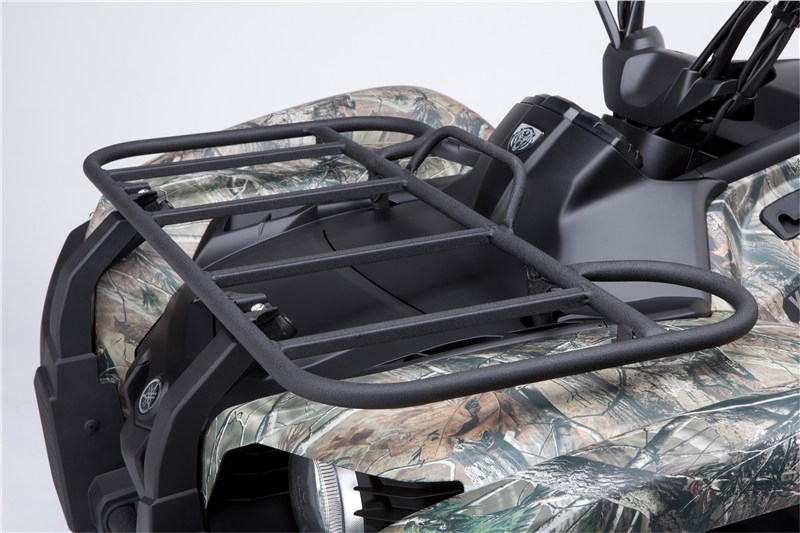

  • Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).

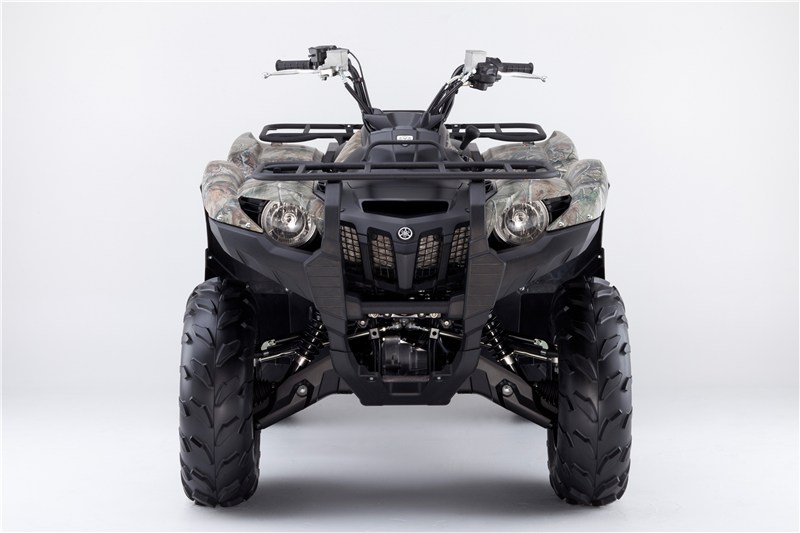

  • Dual 35-watt multireflector halogen bulb headlights with high/low beams light up the night.
  • Assembled Real World Tough in Newnan, GA, U.S.A.
