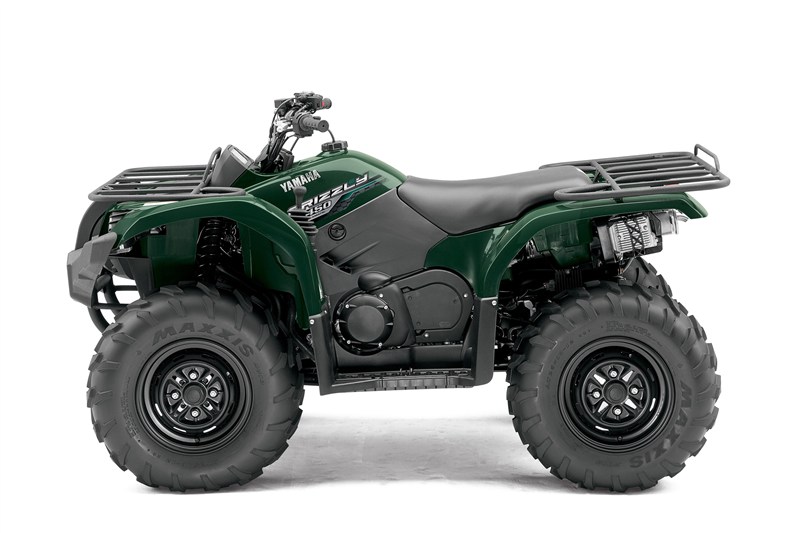

2014 Yamaha GRIZZLY 450 AUTO. 4X4

2014 Yamaha GRIZZLY 450 AUTO. 4X4

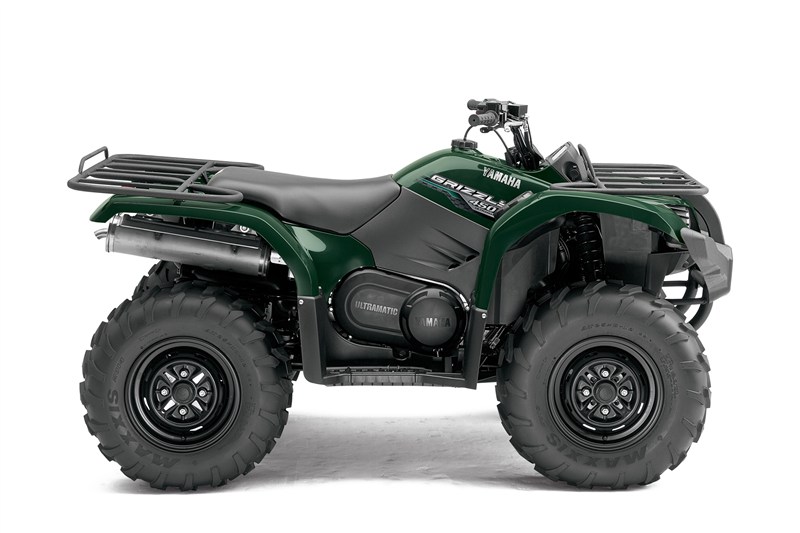

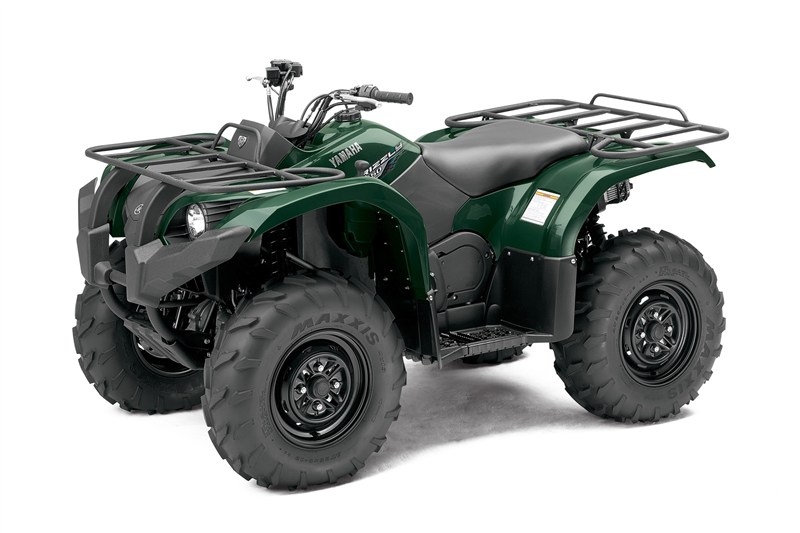

Hunter Green
MSRP: $6,399.00
Manufacturer: Yamaha
Condition: New

Description

  • Grizzly 450 Automatic 4x4 has many of the same great features as big brothers Grizzly 700 and 550, including four-wheel independent suspension, and it’s powered by a fuel-efficient, liquid-cooled engine.
  • Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.
  • Three-position On-Command® 4WD sytem lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
  • Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear.
  • Ground clearance of 10.8 inches and a composite plastic skidplate provide terrainability and undercarriage protection.
  • Advanced digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
  • A sealed rear wet brake provides powerful, consistent stopping power with reduced maintenance.

Specifications

Engine

Type
421cc, 4-stroke, liquid-cooled single; SOHC
Bore x Stroke
84.5mm x 75.0mm
Compression Ratio
10.0:1
Fuel Delivery
Mikuni® 33mm BSR
Ignition
DC-CDI
Starting System
Electric
Transmission
Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train
Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive


Chassis

Suspension / Front
Independent double wishbone; 6.3-in travel
Suspension / Rear
Independent double wishbone; 7.1-in travel
Brakes / Front
Dual hydraulic discs
Brakes / Rear
Sealed oil bathed, multi disc
Tires / Front
AT25x8-12
Tires / Rear
AT25x10-12


Dimensions

Length
78.5 x 43.0 x 44.1 in
Seat Height
33.1 in
Wheelbase
48.5 in
Turning Radius
118 in
Ground Clearance
10.8 in
Fuel Capacity
4.0 gal
Wet Weight
606 lb
Rack Capacity
88 lb Fr./176 lb Rr.
Towing Capacity
1322 lb


Other

Instrumentation
Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, and gear position
Lighting
Dual 30W Krypton multireflector headlights & 21W/5W brakelight
Warranty
6 Month (Limited Factory Warranty)


Features

Engine:

  • 421cc liquid-cooled, SOHC four-stroke single is rugged and powerful.
  • Semi-oval slide 33mm BSR Mikuni® carburetor and high-output DC-CDI ignition deliver fantastic throttle response and engine performance at all rpm.
  • Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
  • Stainless steel muffler and header design provides superior power characteristics, exhaust sound and durability.
  • Left-side–mounted (Hi/Lo/N/R/P) shift lever is easily accessible.
  • Large-capacity radiator provides maximum cooling efficiency and is positioned high in frame for optimal protection.
  • Compact engine design features a 45-degree cylinder angle for maximum ground clearance and lower seat height for quick, responsive steering and agility.
  • Gear-driven crankshaft balancer and rubber-damper engine mounts reduce vibration.
  • Specially designed drive system air intake helps prevent overheating and assists in keeping water and debris from entering the drive case.
  • Tool-free air filter box for easy access and quick maintenance.

Chassis/Suspension:

  • Lightweight chassis features outstanding durability with superior rigidity for class-leading agility and handling.
  • Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability—even in 4WD.
  • Fully independent four-wheel suspension features a double-wishbone suspension front and rear delivering 6.3 inches and 7.1 inches of travel.
  • A sealed rear wet brake provides powerful, consistent stopping power with reduced maintenance.
  • Large-diameter ventilated hydraulic front disc brakes deliver tremendous stopping power in a variety of conditions.
  • Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
  • Heavy-duty composite front carry bar and CV joint guards help prevent damage to boot covers and won’t dent or rust.

Additional Features:

  • Grizzly 700-inspired front-end styling boasts convenient water-resistant storage compartment on the front fender.
  • The water-resistant DC outlet is located to the side of the multifunction instrument panel for convenient access; automotive style receptacle handles a wide range of accessories.
  • Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).

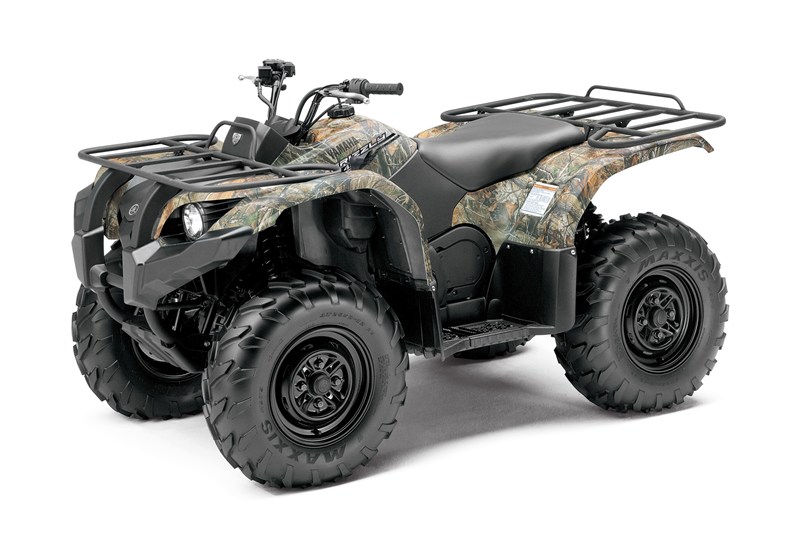

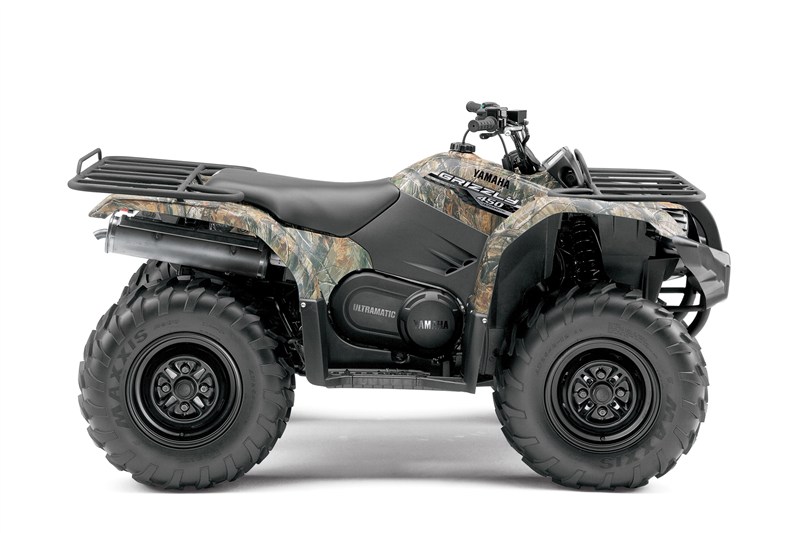

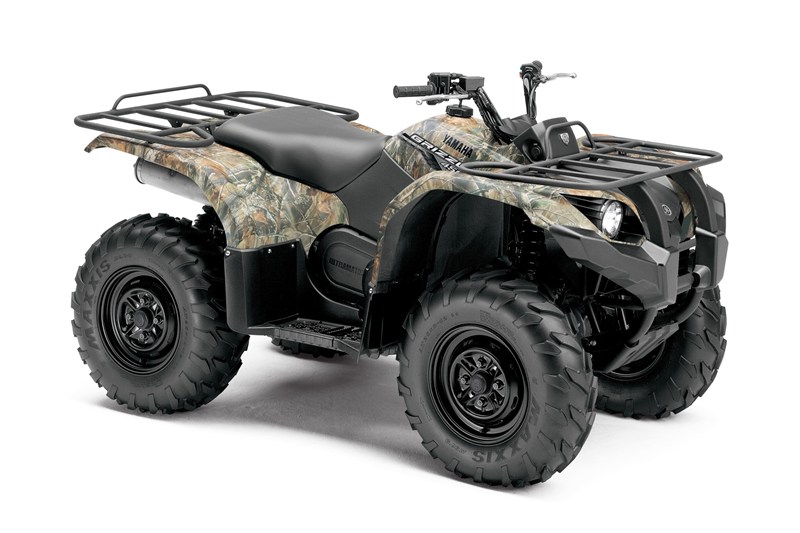

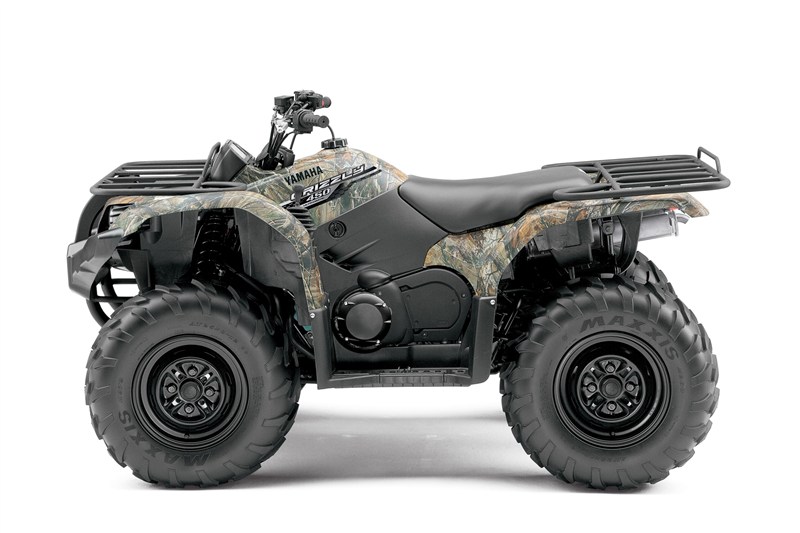

  • Available in Realtree® AP™ camouflage with a water-dipped process for durability.
  • Large-capacity, 4-gallon fuel tank has a built-in gauge and easy-to-reach petcock valve.
  • Water-resistant, large-capacity underseat storage box provides added convenience.
  • Wide, fully integrated floorboards keep rider’s feet dry and feature serrated floorboards for extra grip in wet conditions.
  • Large front and rear fenders with inner guards offer excellent mud/splash protection.
  • Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.
  • Dual, bright multireflector 30-watt Krypton bulb headlights with high and low beams; rear brake light.
  • Assembled in Newnan, GA, U.S.A.
