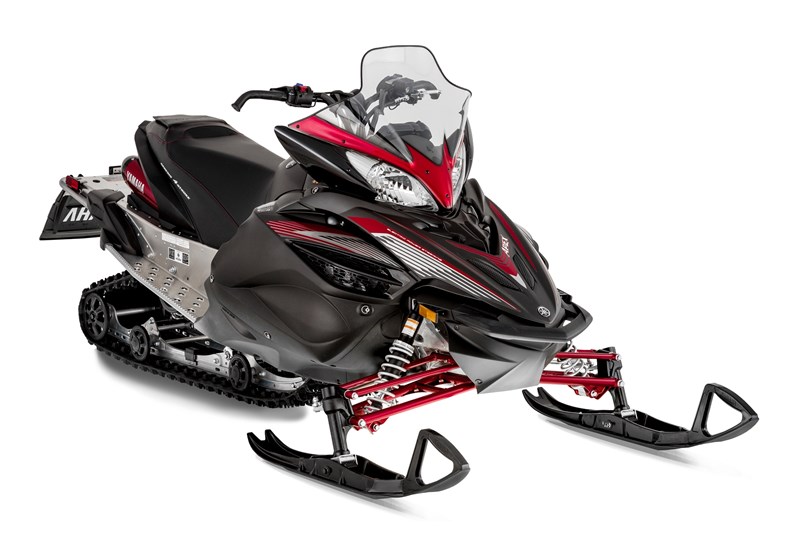

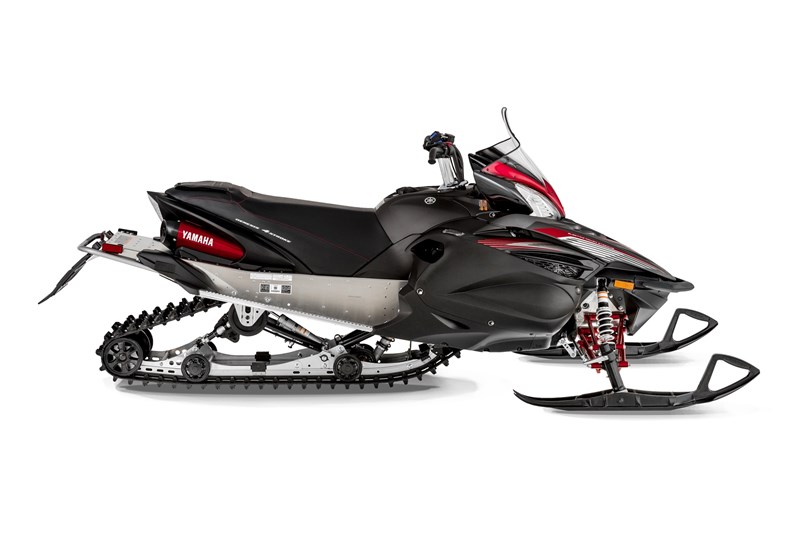

2015 Yamaha APEX X-TX

Matte Black/Candy Red
MSRP: $14,549.00
Manufacturer: Yamaha
Condition: New
Description
- Top Performance 4-cylinder Genesis 4-Stroke engine
The Top Performance 4-cylinder Genesis engine remains the best combination of pure power and rock-solid reliability. Throw in excellent fuel efficiency, low emissions, and no need for pre-mix oil and it’s easy to see why the Yamaha 4-cylinder Genesis is the most complete engine on snow. - Airbox/intake
The intake tract on the Apex X-TX is 11mm long maximizing the air intake allowing for one of the fastest rides. The engine utilizes the pressure waves in the intake tubes as well as the airbox to boost airflow and maximize high RPM performance. - Injector
The distance between the throttle valve and intake valve is designed to optimum fuel delivery. The 4-hole injector on the throttle body creates a spray of finely atomized fuel, with droplets of just tenths of a micron in size. The spray is aimed directly at the intake valve skirt for maximum efficiency and performance. The result? Unmatched throttle response and power. - EXUP and new exhaust pipe
Yamaha-exclusive EXUP valve technology controls the exhaust pressure waves for optimum intake and exhaust efficiency, delivering unmatched overall performance with more midrange torque. Additionally, the exhaust pipes have been enlarged to 38mm from 35mm for added exhaust pressure wave efficiency. - 15 x 144 x 1.25-inch Rip Saw™ track
The Camoplast® Rip Saw track™ is a standard feature on the Apex X-TX. It has been widely acclaimed in the industry as the best all-around OEM track for acceleration, cornering bite and everyday trail usage. - Engine Braking Reduction System
The Top Performance Genesis 4-Stroke engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders more of a “coast” feeling.
Specifications
Engine
Type
4-stroke / 4-cyl / 998cc / EXUP
Engine Class
Top Performance
Cooling
Liquid Cooled
Bore & Stroke : mm
74.0 X 58.0
Fuel Delivery
39mm MIKUNI X 4, Fuel Injection, Liquid Heated
Ignition
Digital T.C.I. w/T.P.S.
Intake Design
3 Valves
Exhaust Design
2 Valves, Rear Exhaust (Ti) with EXUP
Clutch
YVXC, Variable Ratio, Magnesium Chaincase & Cover,Reverse
Disc Brake Type
Hydraulic, 4 Piston Aluminum Caliper, Light Weight Ventilated Disc, Mechanical Parking Brake, Adjust Lever
Fuel Capacity
9.2 gal (34.6L)
Chassis
Front Suspension
Independent, double wishbone
Front Shocks
40 mm aluminum HPG
Front Travel
8.6 in (219mm)
Rear Suspension
Dual Shock CK 144 W/Tip up rails
Rear Shock(s)
40mm, 12.5mm Rod, H.P.G, Aluminum / 40mm, 12.5mm Rod, H.P.G, Piggyback Clicker, Compression Damping Adjuster, Aluminum
Rear Travel
11.7 in (297mm)
Dimensions
Overrall Height
47.6 in (1,210mm)
Overrall Length
117.3 in (2,980mm)
Overrall Width
47.3 in (1,202mm)
Track / W X L X H
15 x 144 x 1.25 in
Track Type
Camoplast® Rip Saw®
Ski Stance (ctr to ctr)
42.5 in (1080mm)
Features
Electric Start
Standard
Reverse
Lever type
Hand & Thumb Warmers
Standard, 9 Position Adjustable, Independent Control
DC Output
Automotive & RCA
Heated seat
N/A
Color (s)
Matte Black/Candy Red
Warranty
1 Year (Limited Factory Warranty)
Features
Performance
- Top Performance 4-cylinder Genesis 4-Stroke engine
The Top Performance 4-cylinder Genesis engine remains the best combination of pure power and rock-solid reliability. Throw in excellent fuel efficiency, low emissions, and no need for pre-mix oil and it’s easy to see why the Yamaha 4-cylinder Genesis is the most complete engine on snow. - Airbox/intake
The intake tract on the Apex X-TX is 11mm long maximizing the air intake allowing for one of the fastest rides. The engine utilizes the pressure waves in the intake tubes as well as the airbox to boost airflow and maximize high RPM performance. - Injector
The distance between the throttle valve and intake valve is designed to optimum fuel delivery. The 4-hole injector on the throttle body creates a spray of finely atomized fuel, with droplets of just tenths of a micron in size. The spray is aimed directly at the intake valve skirt for maximum efficiency and performance. The result? Unmatched throttle response and power. - EXUP and new exhaust pipe
Yamaha-exclusive EXUP valve technology controls the exhaust pressure waves for optimum intake and exhaust efficiency, delivering unmatched overall performance with more midrange torque. Additionally, the exhaust pipes have been enlarged to 38mm from 35mm for added exhaust pressure wave efficiency. - 15 x 144 x 1.25-inch Rip Saw™ track
The Camoplast® Rip Saw track™ is a standard feature on the Apex X-TX. It has been widely acclaimed in the industry as the best all-around OEM track for acceleration, cornering bite and everyday trail usage. - Engine Braking Reduction System
The Top Performance Genesis 4-Stroke engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders more of a “coast” feeling.
Handling
- Electric Power Steering
Industry-exclusive Electric Power Steering system is velocity sensitive, delivering maximum assist up to trail speed, and gradually tapering off from there. You’ll love the EPS system because it helps isolate the rider from uncomfortable trail feedback, eases the effort required to move the bars, and provides excellent handling and predictability. - Tuner Dual-Keel ski
The Tuner dual-keel ski greatly contributes to the Apex X-TX’s aggressive trail character. The dual keels keep the ski tracking straight and true down the trail, eliminating nosiness and darting. Each keel has its own wearbar, and Yamaha has four different bar configurations to choose from, which means you can tune your sled's cornering bite and steering effort to suit your personal preference. - Front suspension geometry
The 15mm trail offset on the ski mount help minimize inside ski lift due to centrifugal force during turns. This offset helps the Apex X-TX achieve its amazingly smooth handling and straight line performance. - Rigid steering gate
The steering gate has a rigid single-piece construction designed to handle the additional forces exerted by the EPS system. The gate is made using Yamaha’s exclusive lightweight, yet rugged CF diecast manufacturing process. - Hooked handlebars
To match the tall and forward position, a single-piece, dual-hooked handlebar is standard fare on the Apex X-TX. The hooks have the same grip material as the main bar section, for consistent control, regardless of hand position on the grip. - Short exhaust system
The Apex X-TX has a very short, compact exhaust layout. This helps keep the sleds mass centralized, which results in excellent handling. Another benefit of the short exhaust design is that the tunnel no longer needs to have a cast reinforcement piece to hold the muffler.
Comfort
- Dual Shock CK 144
The Dual Shock CK 144 rear suspension is the culmination of many years of development and testing. In order to be the ultimate top performance cross country snowmobile, the Apex X-TX needed to have cornering like a 121-inch trail sled, bump bridging like a 136-inch sled and the flotation of a 144-inch sled. The solution is the aggressive 6-degree rear tip-up on the rails, which gives the sled the footprint of a short track model on hardpack and the footprint of a long track model in fresh snow. The coupled design delivers excellent comfort and bump absorption over a wide variety of trail conditions. - Seat
The Apex X-TX’s seat raises the rider’s hips approximately 2 inches for all-day trail riding comfort. The seat has a roomy storage trunk at the rear. It’s large enough to hold a couple water bottles, spare gloves, fleece shirt….and an Xtremely practical tow strap! - HPG front shocks
The 40mm High Pressure Gas (HPG) shocks on the Apex X-TX’s third generation front suspension geometry deliver consistent performance with excellent fade resistance. - Clicker rear shock
The Dual Shock CK 144 rear suspension is fitted with a 40mm HPG shock with a remote reservoir and compression clicker on the rear arm and an aluminum-body HPG shock on the front arm. - Concentrated hand warmers
The hand warmers have a concentrated element design, which focuses the heat in the middle of the grip material. The result is a warm grip for your hand’s most comfortable riding position. In addition, an insulator is placed between the heating element and handlebar to retain heat longer and more efficiently than previous designs. - Standard electric start
Yamaha’s electric starter system allows consumers to fire up their Apex X-TX with the turn of a key. There is no pulling on a nylon cord to get this high-tech engine growling! Electric start is a standard feature on all of Yamaha’s 4-stroke machines. - Windshield
The windshield and side deflector design, developed using computer modeling provides maximum wind protection with minimum aerodynamic drag and swirl-in. - Standard mechanical reverse
The Apex X-TX’s simple reverse system allows riders to back out of tight spaces hassle-free. It’s engaged with the lever located on the right shroud. Just pull out the lever and slide it to the right for quick and easy use. - Dual DC outlets
The Apex X-TX offers two styles of DC outlets. It comes with a standard automotive-style outlet for cell phones, GPS or other electronics accessories. And it also comes standard with an RCA-style plug near the left hand grip to power up heated helmet visors or other small-plug accessories.
All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
