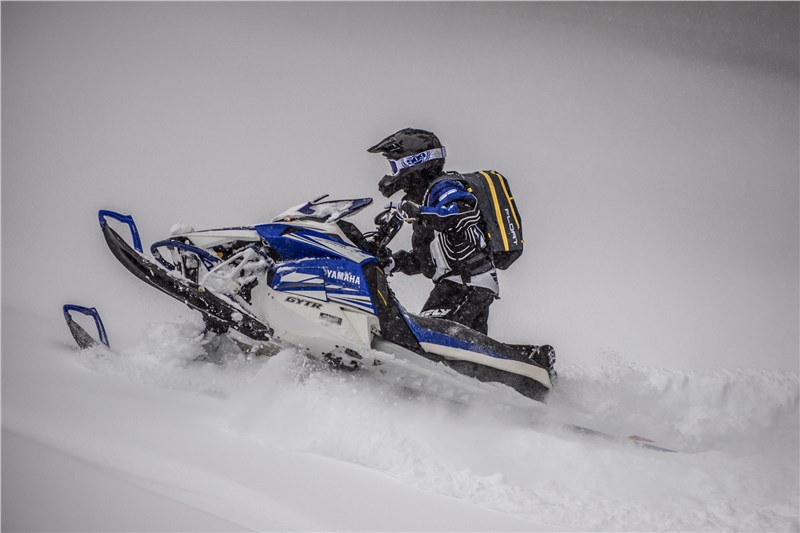

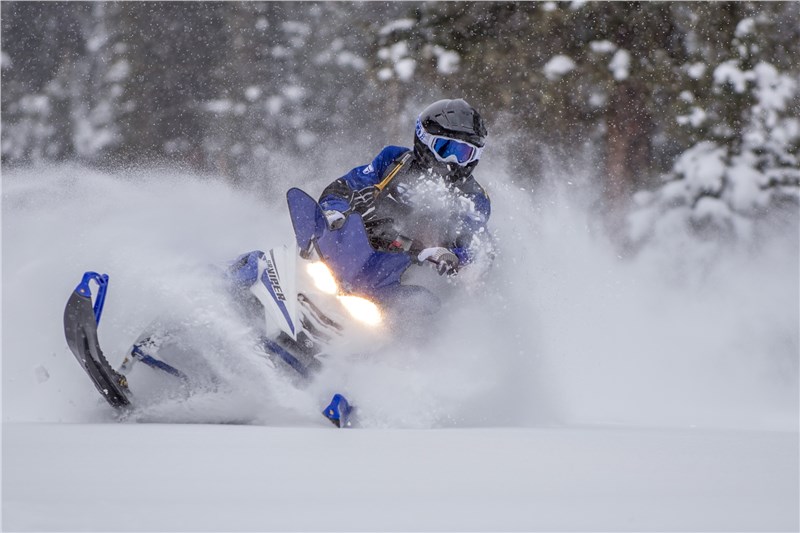

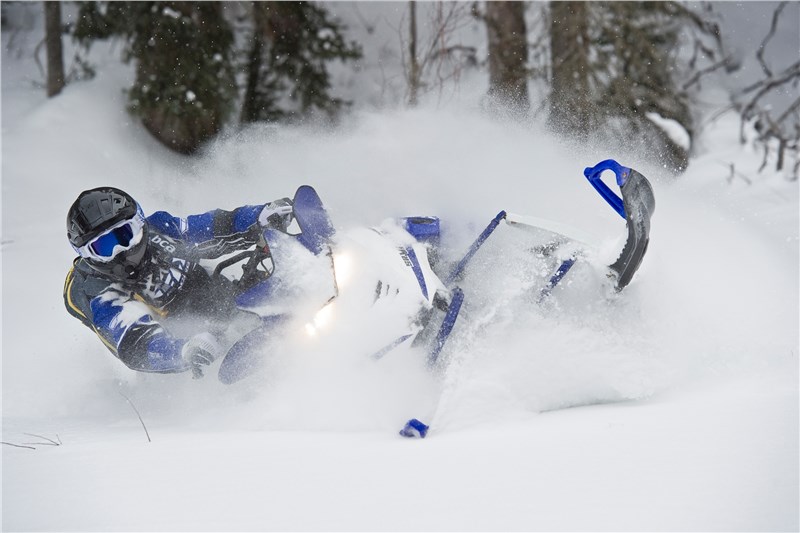

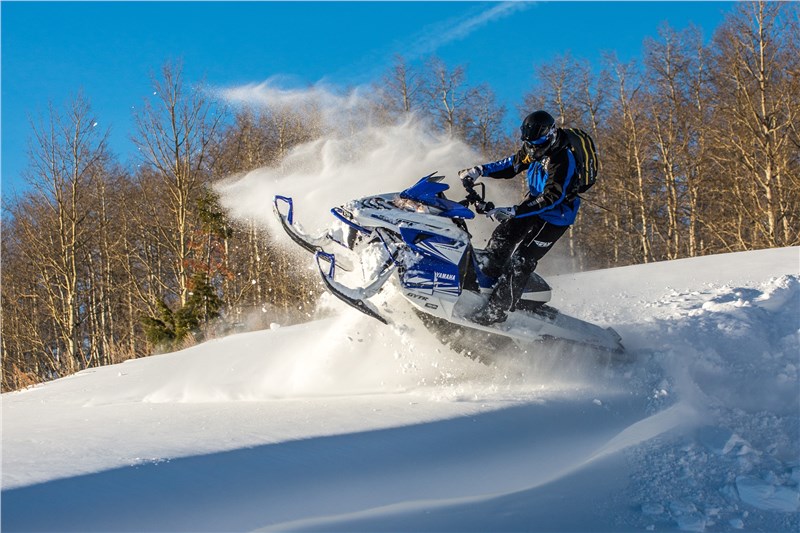

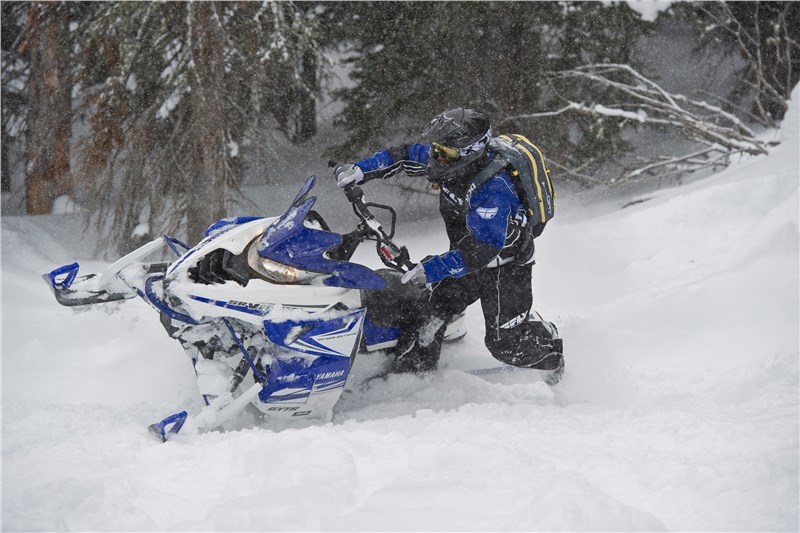

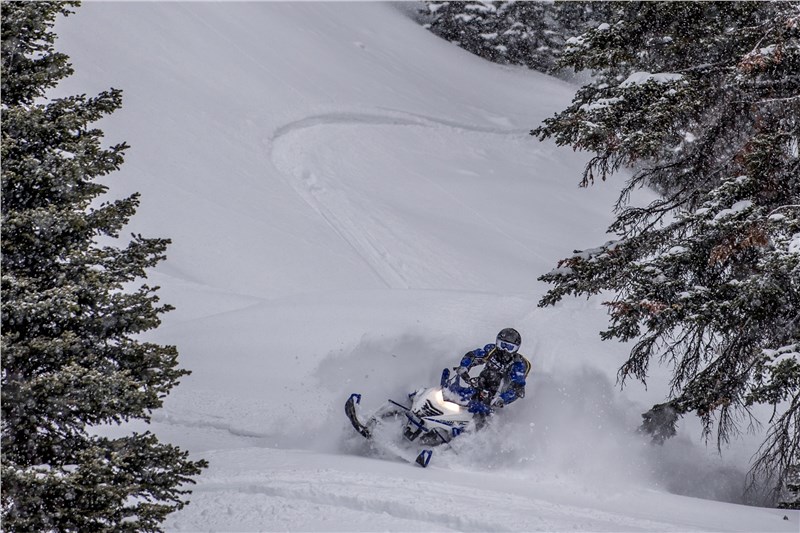

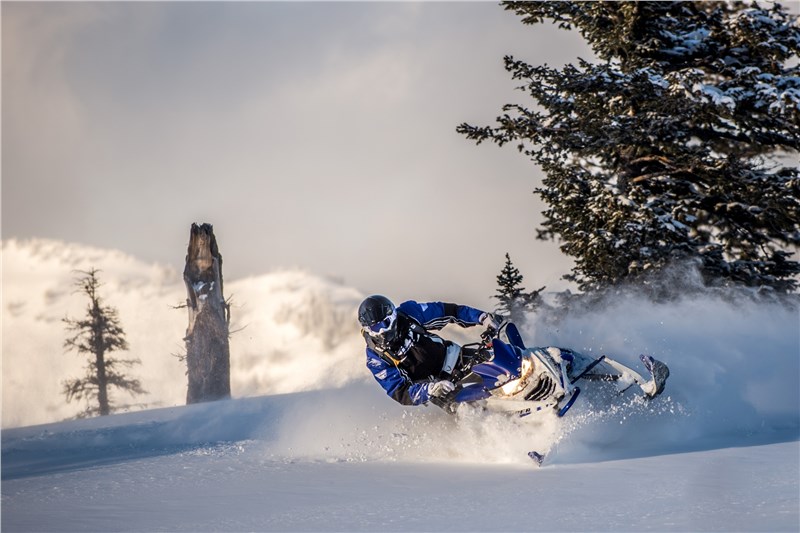

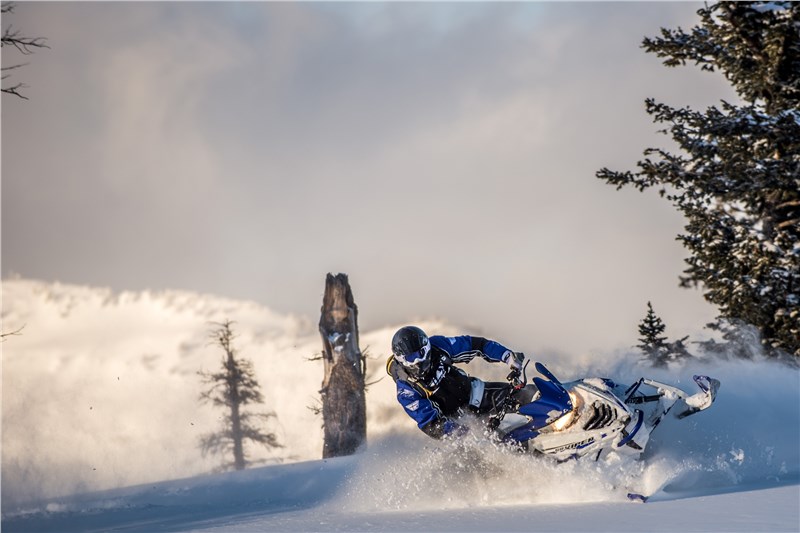

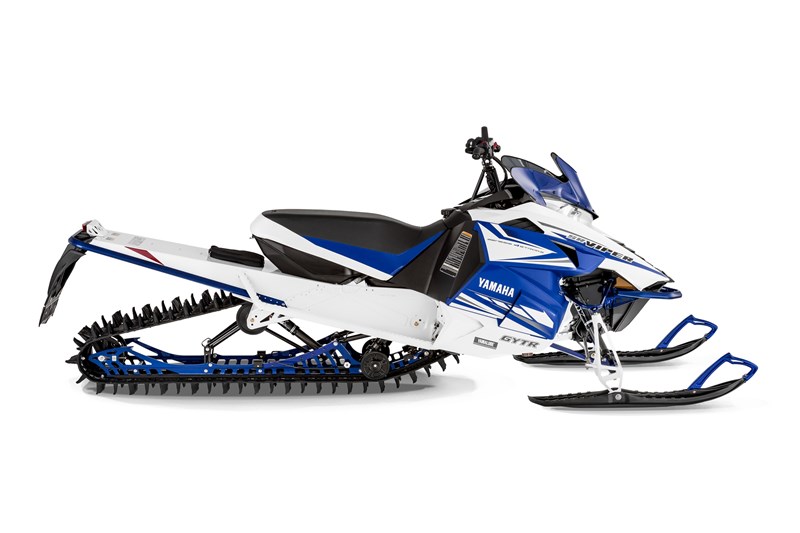

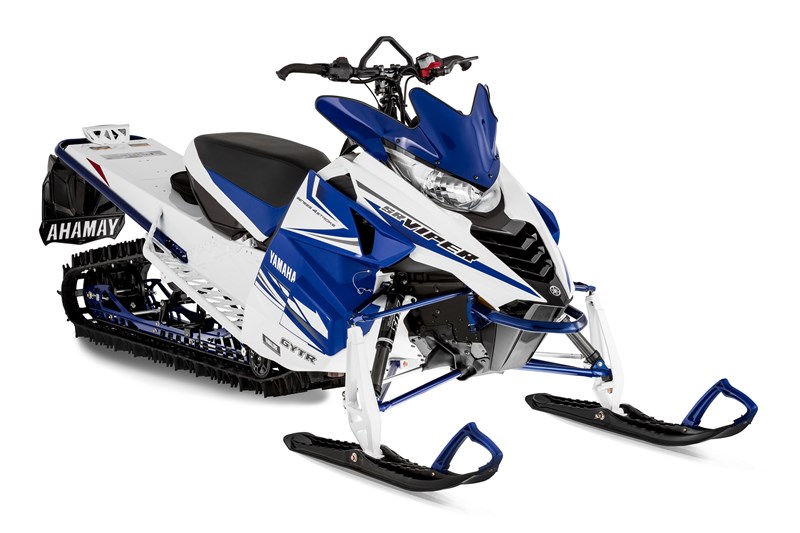

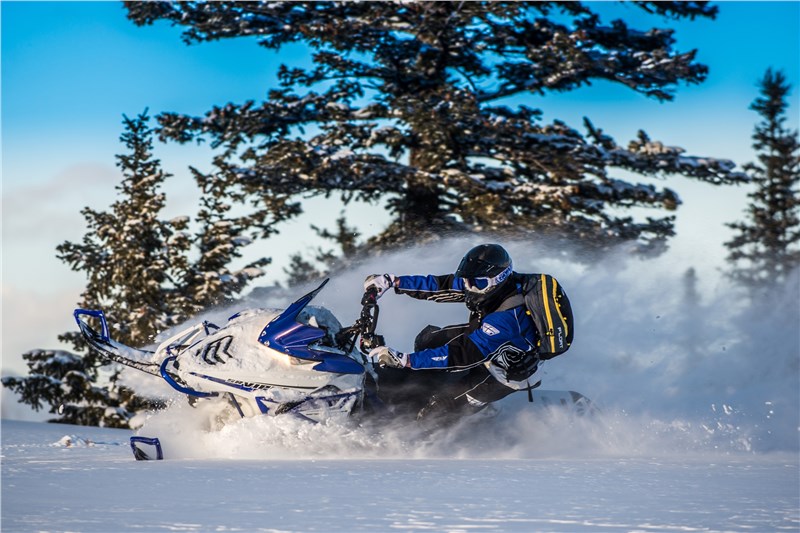

2015 Yamaha SRVIPER M-TX 162 SE

2015 Yamaha SRVIPER M-TX 162 SE
White/Yamaha Blue
MSRP: $13,199.00
Manufacturer: Yamaha
Condition: New

Description

  • High Performance Genesis 4-stroke engine
    The over-achieving Genesis® engine is the heart of our lightweight and aggressive SRViper model family. It pulls consistently hard from takeoff to top end. Your thumb cracks a trio of 41mm throttle bodies that deliver strong performance from idle to wide open.
  • Fuel injection
    The Genesis High Performance engine uses Yamaha’s advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system.
  • Engine braking reduction system
    The Genesis High Performance engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders a “coast” feeling.
  • Legendary Yamaha Clutching
    The SRViper M-TX 162 SE uses the legendary Yamaha YVXC clutching. Easily the most reliable and durable clutch system in the industry, the YVXC has evolved to efficiently handle the unique power characteristics of the Genesis 4-stroke engine.
  • Multi-purpose magnesium chaincase
    The SRViper M-TX 162 SE’s chain case and cover serve as both a mounting point for chassis spars and the engine’s oil reservoir. Lightweight magnesium construction minimizes weight.
  • High performance Hayes Brake system
    The SRViper M-TX 162 SE’s high performance Hayes brake system delivers stopping power with a large-diameter, 8-inch rotor. Mounted low on the drive shaft, you feel immediate whoa-power with a quick stab of the brake. The hydraulic brake’s race-inspired radial master cylinder design gives you excellent leverage when needed, with precise brake feel and control.
  • 15 x 162 x 2.6-inch Power Claw track
    If deep snow capability is critical to you, then the M-TX 162 SE’s Power Claw track is an important feature. The 2.6” lug can move a lot of snow, and its floatation ability is second only to our larger mountain tracks. The durable, yet lightweight design offers performance and efficiency. For riders who are serious about their deep snow riding, the Power Claw is the ace up your sleeve.

Specifications

Engine

Type
4-stroke / 3-cyl / 1049cc
Engine Class
High Performance
Cooling
Liquid Cooled
Bore & Stroke : mm
82.0 X 66.2
Fuel Delivery
41mm MIKUNI X 3, Fuel Injection, Liquid Heated
Ignition
Digital T.C.I. w/T.P.S.
Intake Design
2 Valves
Exhaust Design
2 Valves, Rear Exhaust
Clutch/Transmission
YVXC, Variable Ratio / Electronic Shift Reverse / Magnesium Chaincase & Cover
Disc Brake Type
Radial master cylinder hydraulic brake / disc on drive shaft
Fuel Capacity
10 gal (37L)


Chassis

Front Suspension
SRV-M
Front Shocks
FOX ® FLOAT® 3
Front Travel
9 in (229mm)
Rear Suspension
Dual Shock SR 162
Rear Shock(s)
C43 R13 aluminum HPG, FOX® FLOAT® 2
Rear Travel
16.5 in (419mm)


Dimensions

Track / W X L X H
15 x 162 x 2.6 in
Track Type
Camoplast® Power Claw
Ski Stance (ctr to ctr)
38-39 in (965-991mm) adjustable


Features

Electric Start
Standard
Reverse
Push button
Hand & Thumb Warmers
Standard
Headlight Watts, Type
60/55 Watts H4 Halogen
DC Output
Automotive
Heated Seat
Optional
Color (s)

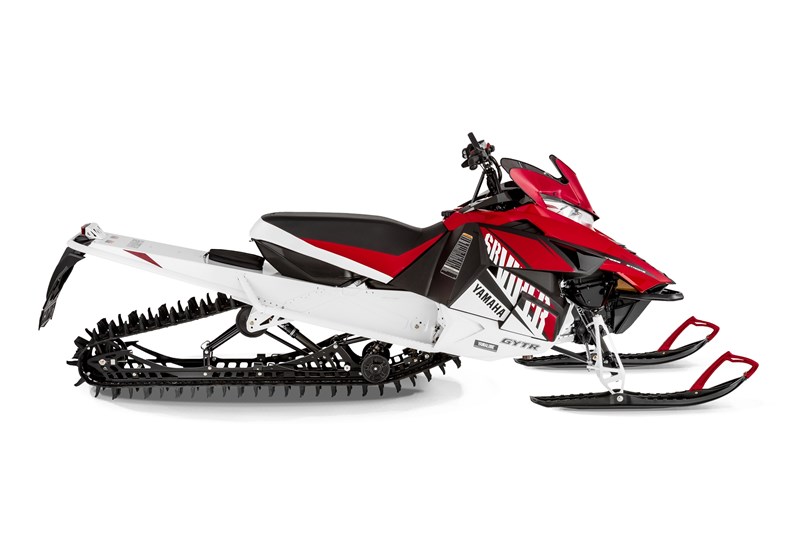

White/Yamaha Blue, Heat Red/White
Warranty
1 Year (Limited Factory Warranty)


Features

Performance

  • High Performance Genesis 4-stroke engine
    The over-achieving Genesis® engine is the heart of our lightweight and aggressive SRViper model family. It pulls consistently hard from takeoff to top end. Your thumb cracks a trio of 41mm throttle bodies that deliver strong performance from idle to wide open.
  • Fuel injection
    The Genesis High Performance engine uses Yamaha’s advanced fuel injection system to control fuel flow to the engine. Consumers will enjoy the engine’s spot-on performance and throttle response as a result of the advanced electronic fuel injection system.
  • Engine braking reduction system
    The Genesis High Performance engine features the unique Engine Braking Reduction System. The system allows a small amount of air to pass through the fuel injection system when the throttle is released, giving riders a “coast” feeling.
  • Legendary Yamaha Clutching
    The SRViper M-TX 162 SE uses the legendary Yamaha YVXC clutching. Easily the most reliable and durable clutch system in the industry, the YVXC has evolved to efficiently handle the unique power characteristics of the Genesis 4-stroke engine.
  • Multi-purpose magnesium chaincase
    The SRViper M-TX 162 SE’s chain case and cover serve as both a mounting point for chassis spars and the engine’s oil reservoir. Lightweight magnesium construction minimizes weight.
  • High performance Hayes Brake system
    The SRViper M-TX 162 SE’s high performance Hayes brake system delivers stopping power with a large-diameter, 8-inch rotor. Mounted low on the drive shaft, you feel immediate whoa-power with a quick stab of the brake. The hydraulic brake’s race-inspired radial master cylinder design gives you excellent leverage when needed, with precise brake feel and control.
  • 15 x 162 x 2.6-inch Power Claw track
    If deep snow capability is critical to you, then the M-TX 162 SE’s Power Claw track is an important feature. The 2.6” lug can move a lot of snow, and its floatation ability is second only to our larger mountain tracks. The durable, yet lightweight design offers performance and efficiency. For riders who are serious about their deep snow riding, the Power Claw is the ace up your sleeve.

Handling

  • Lightweight, rigid SRV chassis
    The SRV chassis combines a load-bearing triangulated structure with lightweight aluminum construction to create a neutrally balanced sled that centered on the rider. The pyramidal upper frame creates chassis strength without excessive weight.
  • SRV-M Front suspension
    The SRV-M front suspension geometry is aimed at managing spindle camber, resulting in minimized bumpsteer and maximized cornering bite and rider confidence in varying trail conditions. The shorter mountain a-arms are mounted at a 30-degree angle from the sled's centerline to efficiently dissipate impact force throughout the entire chassis. Likewise, the front shocks mount directly to the leading spar so that trail forces are routed to the strongest part of the chassis. Wide a-arm spacing minimizes flex and stress in the front suspension system, which means consistent and confident corner handling.
  • Centralized mass design
    The SRV chassis layout was engineered with the goal of centralizing mass. Approximately 60 percent of the sled’s weight is tightly centered within the main triangulation. The result is a quick-handling sled that’s fun in a wide variety of conditions.
  • Side exit exhaust
    The exhaust exits out the belly on the SRVipers. The unique chassis layout allows the exhaust to exit the back of the engine, have the 3-into-1 manifold cooled by snow kicked up through a hole in the tunnel and then bring the pipe back to the muffler in a traditional configuration. The end result is mass centralization, excellent handling and consistent performance.
  • Adjustable ski stance
    The ski rubbers on the SRViper M-TX 162 SE are asymmetrical, with a portion of the part serving as a spacer for the ski. This allows riders to adjust the ski stance on the M-TX SE from 38 to 39 inches, center to center, by simply switching the ski rubbers from left to right, and right to left.
  • Over-the-engine steering
    The straight steering post on the SRViper M-TX 162 SE is configured over the engine. It connects to a single bell crank for simplicity and light weight. The design also minimizes freeplay in the steering system and delivers a tight turning radius.
  • Plastic mountain ski
    The SRViper M-TX 162 SE’s plastic mountain skis offer extra width for excellent powder handling characteristics. The unique arched fin design of the ski also deflects snow away from the sled and the rider. The mountain ski also features traction grippers molded into the tops.
  • Tall, hooked handlebars with center strap
    To match the SRViper M-TX 162 SE’s tall and forward riding position, a single-piece, dual-hooked handlebar is standard fare on. The hooks have the same grip material as the main bar section, for consistent control, regardless of hand position on the grip. The M-TX 162 SE also sports a tough center grab strap for additional leverage options in deep snow.

Comfort

  • Performance-tuned FOX® FLOAT® 3 front shock package

    The SRViper M-TX 162 SE’s performance-tuned Fox® FLOAT® 3 shocks use an air spring designed to force the piston to rebound. This eliminates the need for heavier steel coil springs. The air springs are individually tunable by using a pocket-sized air pump, which comes with the sled, so consumers will be able to set the front suspension up to their liking.
  • Dual Shock SR 162 rear suspension

    The uncoupled Dual Shock SR 162 features a FOX® FLOAT® 2 air shock on the rear arm, combined with aluminum-body HPG shock for maximum control and ride comfort regardless of whether you’re riding on or off trail. The rear axle features a conjoined rear wheelset. The ingenious design is lighter, more durable and more rigid than most traditional rear axle wheels.
  • Tapered tunnel design
    The SRViper M-TX 162 SE’s two-piece, tapered tunnel gives you strength for the long haul and a tapered “fit” for enhanced leg comfort and overall ride positioning.
  • Large fuel tank
    The SRViper M-TX 162 SE’s generous 10.6-gallon fuel tank combines with the Genesis engine’s acknowledged fuel efficiency to keep you going longer. The M-TX 162 SE’s efficient design philosophy means that even the fuel tank serves multiple functions. Not only does it carry gas for a long day, but it also cradles the battery and is the platform for the quick-release trail seat.
  • Tall, sculpted seat
    The seat foam on the SRViper M-TX 162 SE is anatomically designed to comfortably put the rider in an aggressive posture with easy transitions from seated to standing to leaning into a corner.
  • Digital gauge
    Full-featured and easy to read, the digital gauge displays critical information in a glance including speed, fuel level, trip mileage, tach and more. We even included a clock so you can watch the time fly.
  • Push button reverse
    Convenient handlebar positioning makes getting in reverse easy with just the push of your thumb. A servo motor shifts the drivetrain into reverse simply and consistently.
  • Standard electric start
    Yamaha’s electric starter system allows consumers to fire up their SRViper M-TX 162 SE with the turn of a key. There is no pulling on a nylon cord to get this high-tech engine growling! Electric start is a standard feature on all of Yamaha’s 4-stroke machines.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
