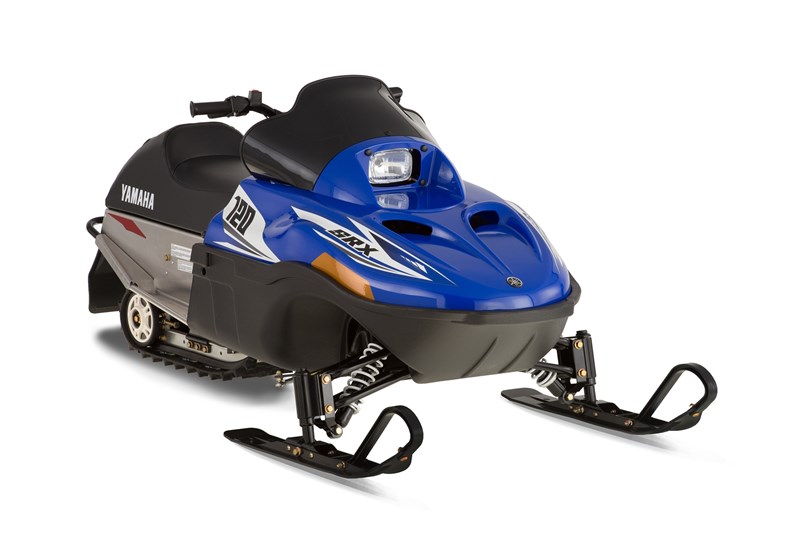

2015 Yamaha SRX 120

2015 Yamaha SRX 120
Yamaha Blue
MSRP: $2,699.00
Manufacturer: Yamaha
Condition: New

Description

  • 123cc Yamaha engine
    The SRX is powered by an ultra-reliable Yamaha 123cc 4-stroke engine. The single-cylinder, fan-cooled powerplant is just as reliable as mom and dad's full-size sleds, with all of the same 4-stroke benefits- no injector oil… no smoke or smell… great fuel economy… gas and go simple.
  • Tether ignition shut-off switch
    Safety is important and the SRX 120 is loaded with safety features like the tether ignition shut-off switch. The sled won't start unless the tether is properly attached to the sled. Hook the free end to your child's jacket, and if he or she should separate from the sled, and unplug the tether, the engine will quickly shut off.
  • Governed top speed
    Safety is important and the SRX 120 is loaded with safety features like top speed control. The sled is governed for a top speed of 8 miles per hour, giving you added peace of mind when junior is out for a ride.
  • Double A-arm front suspension
    The double A-arm front suspension design soaks up bumps and keeps the skis firmly planted for consistent handling.
  • Adjustable torsion spring rear suspension
    Under the seat you'll find a torsion spring, slide rail rear suspension that gives your child a comfortable ride all day long. It is preload-adjustable, allowing you to set the rate for your child’s weight and ride style.
  • Yamaha styling
    Kids will love the fact that their sled looks just like mom and dad's sled. The color and graphics on the SRX 120 were developed in the same design house as the full size, high performance FX Nytro sleds. No detail was overlooked, from the Tuning Fork badges on the hood to the full gauge cluster decal on the dash to the Yamaha logo on the seat and tunnel.
  • Working lights
    Daylight comes and goes quickly in the winter. To let your little sledder ride longer, the SRX 120 has fully functional head and a new LED tail light.

Specifications

Engine

Type / Displacement / cc
4-stroke / 1-cyl / 123cc
Cooling
Air Cooled
Bore & Stroke : mm
56.0 × 50.0
Fuel Delivery
1 x B-18 carbutetor
Ignition
Transistorized
Intake Design
1-Valve
Exhaust Design
1-Valve
Clutch/Transmission
Centrifugal Automatic / Chain
Disc Brake Type
Adjustable Band
Fuel Capacity
0.46 gal (1.7L)


Chassis

Front Suspension
Double Wishbone
Front Shocks
Hydraulic
Front Travel / in.
3 in (76mm)
Rear Suspension
Slide-rail, torsion spring
Rear Shocks
None
Rear Travel / in.
4.5 in (114mm)


Dimensions

Overrall Height
31 in (787mm)
Overrall Length
71.5 in (1,816mm)
Overrall Width
34.5 in (876mm)
Track/Width x Length x Height / in.
10 in x 68 in x .69 in
Track Type
Camoplast® Block Pattern
Ski Stance (ctr. to ctr.) in.
31 in (780)


Features

Features

  • 123cc Yamaha engine
    The SRX is powered by an ultra-reliable Yamaha 123cc 4-stroke engine. The single-cylinder, fan-cooled powerplant is just as reliable as mom and dad's full-size sleds, with all of the same 4-stroke benefits- no injector oil… no smoke or smell… great fuel economy… gas and go simple.
  • Tether ignition shut-off switch
    Safety is important and the SRX 120 is loaded with safety features like the tether ignition shut-off switch. The sled won't start unless the tether is properly attached to the sled. Hook the free end to your child's jacket, and if he or she should separate from the sled, and unplug the tether, the engine will quickly shut off.
  • Governed top speed
    Safety is important and the SRX 120 is loaded with safety features like top speed control. The sled is governed for a top speed of 8 miles per hour, giving you added peace of mind when junior is out for a ride.
  • Double A-arm front suspension
    The double A-arm front suspension design soaks up bumps and keeps the skis firmly planted for consistent handling.
  • Adjustable torsion spring rear suspension
    Under the seat you'll find a torsion spring, slide rail rear suspension that gives your child a comfortable ride all day long. It is preload-adjustable, allowing you to set the rate for your child’s weight and ride style.
  • Yamaha styling
    Kids will love the fact that their sled looks just like mom and dad's sled. The color and graphics on the SRX 120 were developed in the same design house as the full size, high performance FX Nytro sleds. No detail was overlooked, from the Tuning Fork badges on the hood to the full gauge cluster decal on the dash to the Yamaha logo on the seat and tunnel.
  • Working lights
    Daylight comes and goes quickly in the winter. To let your little sledder ride longer, the SRX 120 has fully functional head and a new LED tail light.
