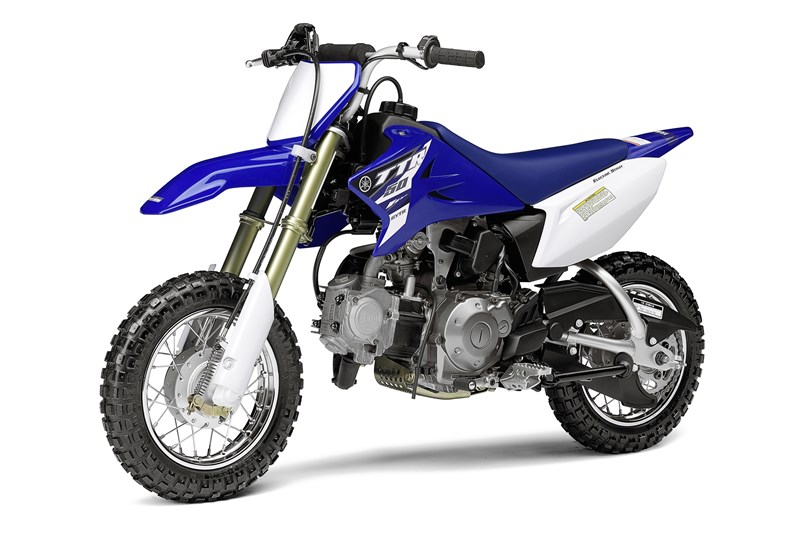

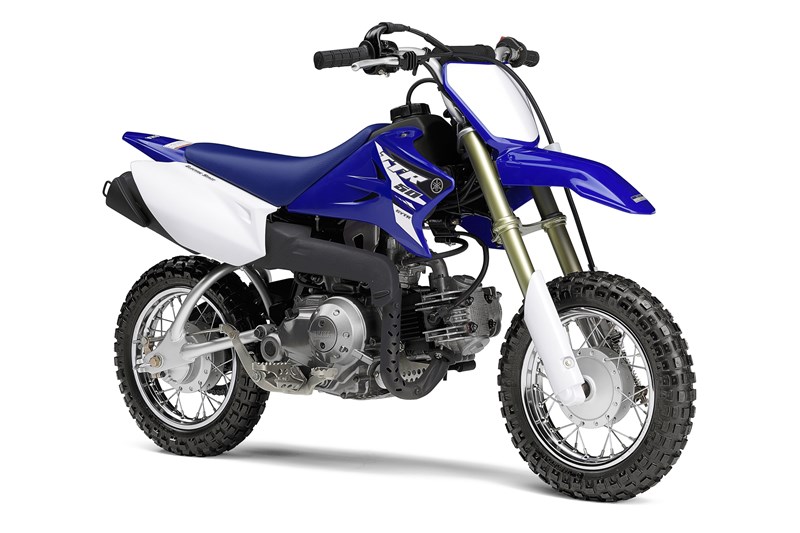

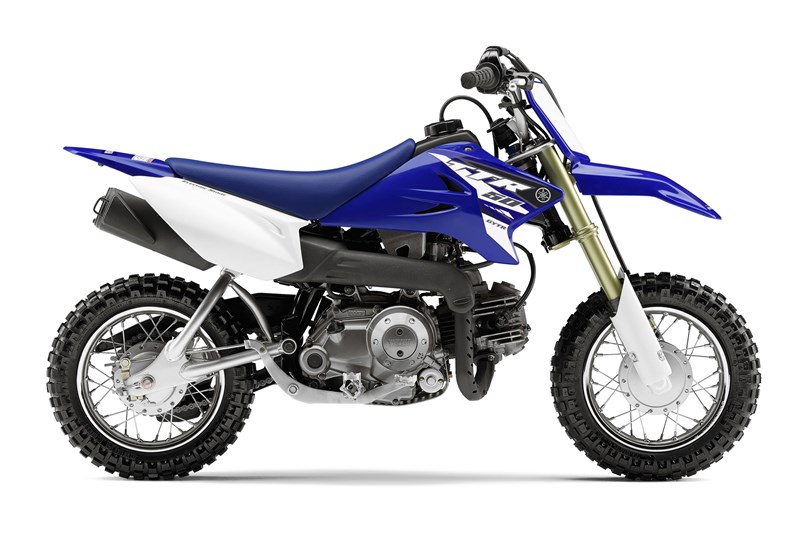

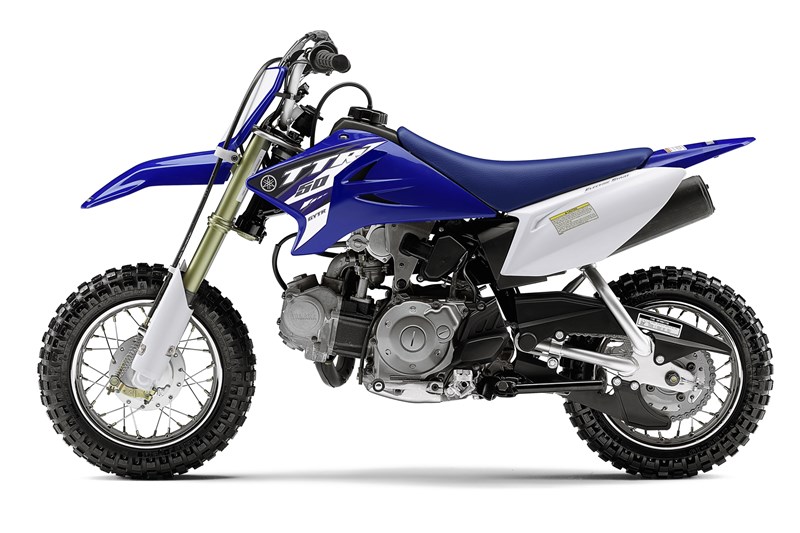

2015 Yamaha TT-R50E

2015 Yamaha TT-R50E
eam Yamaha Blue/White
MSRP: $1,540.00
Manufacturer: Yamaha
Condition: New

Description

  • The TT-R50E gets the same pushbutton electric starting feature as our full line of electric-start TT-Rs.
  • Great for learning and/or playing, complete with 49cc of four-stroke fun feeding power through a three-speed automatic-clutch transmission.
  • Big YZ styling meets little people’s stature; the seat’s only 21.9 inches from the dirt.
  • Inverted fork and Monocross® rear end provide great handling.
  • Large chain cover for maximum protection and minimal maintenance.

Specifications

Engine

Type
49cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke
36.0mm x 48.6mm
Compression Ratio
9.5:1
Fuel Delivery
Mikuni® VM11 carburetor
Ignition
CDI
Transmission
Constant-mesh 3-speed; automatic clutch
Final Drive
Chain


Chassis

Suspension / Front
Inverted telescopic fork; 3.8-in travel
Suspension / Rear
Single shock; 2.8-in travel
Brakes / Front
80mm drum
Brakes / Rear
80mm drum
Tires / Front
2.50-10-4PR
Tires / Rear
2.50-10-4PR


Dimensions

Length
51.4 in
Width
23.4 in
Height
31.3 in
Seat Height
21.9 in
Wheelbase
36.4 in
Ground Clearance
5.3 in
Fuel Capacity
.82 gal
Wet Weight***
126 lb


Other

Warranty
90 Day (Limited Factory Warranty)


Features

Top Features:

  • The TT-R50E gets the same pushbutton electric starting feature as our full line of electric-start TT-Rs.
  • Great for learning and/or playing, complete with 49cc of four-stroke fun feeding power through a three-speed automatic-clutch transmission.
  • Big YZ styling meets little people’s stature; the seat’s only 21.9 inches from the dirt.
  • Inverted fork and Monocross® rear end provide great handling.
  • Large chain cover for maximum protection and minimal maintenance.

Engine:

  • 49cc air-cooled, SOHC powerplant puts out smooth, reliable four-stroke power perfect for kids and small novices.
  • Three-speed gearbox with automatic centrifugal clutch makes learning to shift gears a breeze.
  • Convenient electric starter for effortless starting.
  • Compact-design cases keep overall engine width down for a narrow feel and great handling.
  • 11mm Mikuni® VM-type carburetor with automatic on/off electric heater ensures crisp, dependable throttle response.
  • Automatic cam chain tensioner reduces maintenance.
  • CDI ignition system delivers hot, reliable spark and requires minimal maintenance.
  • Lightweight, upswept exhaust system is quiet and contains a USFS-approved spark arrestor.

Chassis/Suspension:

  • Curved steel backbone frame keeps the TT-R50E narrow and has three engine-mounting points for excellent rigidity and handling.
  • Inverted fork with 22mm sliders provides 3.8 inches of smooth front wheel travel for a great ride and handling.
  • Monocross-style rear suspension is controlled by a single coil-over shock and provides 2.8 inches of bump-smothering rear wheel travel.
  • Front and rear 80mm drum brakes deliver strong, dependable stopping power, and the rear’s activated by a right foot pedal just like the big YZs.
  • 10-inch front and rear wheels with knobby tires offer great grip and exceptional wear.
  • Low, 21.9-inch seat height allows most kids to put both feet down for enhanced handling and added confidence.

Additional Features:

  • Key-type ignition switch deters unauthorized riding.
  • Throttle stop screw lets the adult supervisor restrict speed while beginners are learning.
  • Cool-looking YZ bodywork includes an integrated front fender/number plate.
  • Standard sidestand tucks up out of the way when not in use.
  • Handy choke lever is located right in front of the main switch.
  • Large, folding, cleated foot pegs provide excellent footing.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
